Final Drive: Inspection

Gear, washer, shaft and case

• Check mating surfaces of differential case, side gears and pinion mate gears.
• Check washers for wear.

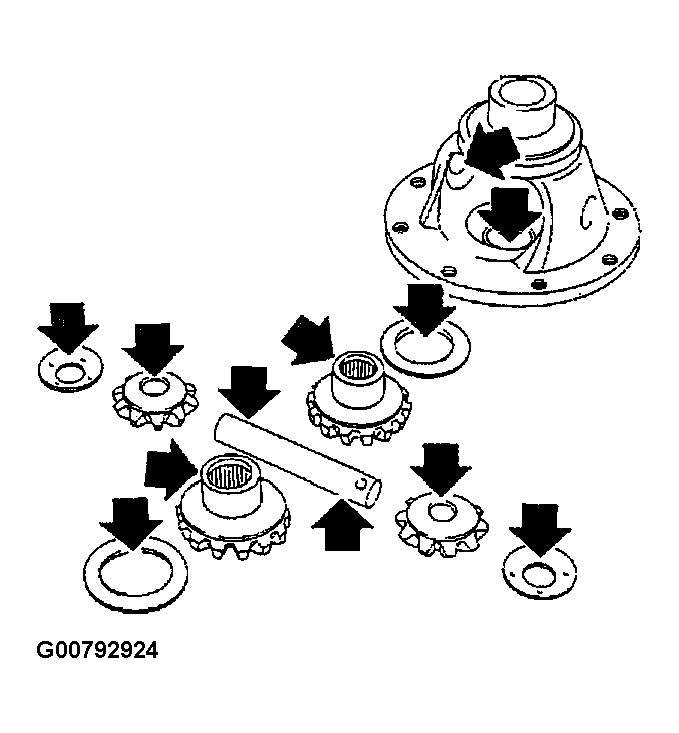

Fig 1: Checking mating surface of differential case, side gears and pinion mate gears

Courtesy of NISSAN MOTOR CO., U.S.A.

Bearings

• Make sure bearings roll freely and are free from noise, cracks, pitting or wear.
• When replacing taper roller bearing, replace outer and inner race as a set.

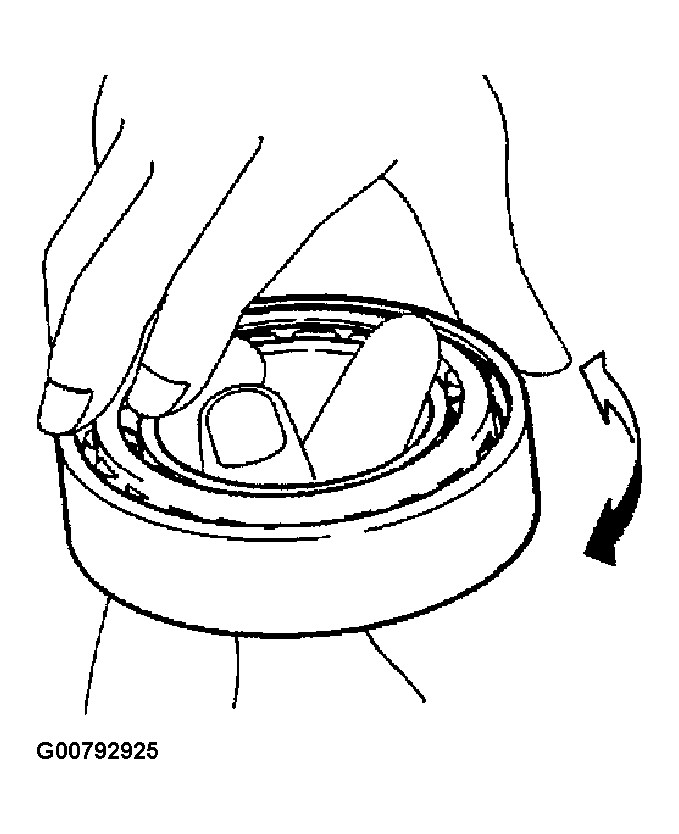

Fig 2: Checking Bearing Movement And Condition

Courtesy of NISSAN MOTOR CO., U.S.A.
