High Clutch: Assembly

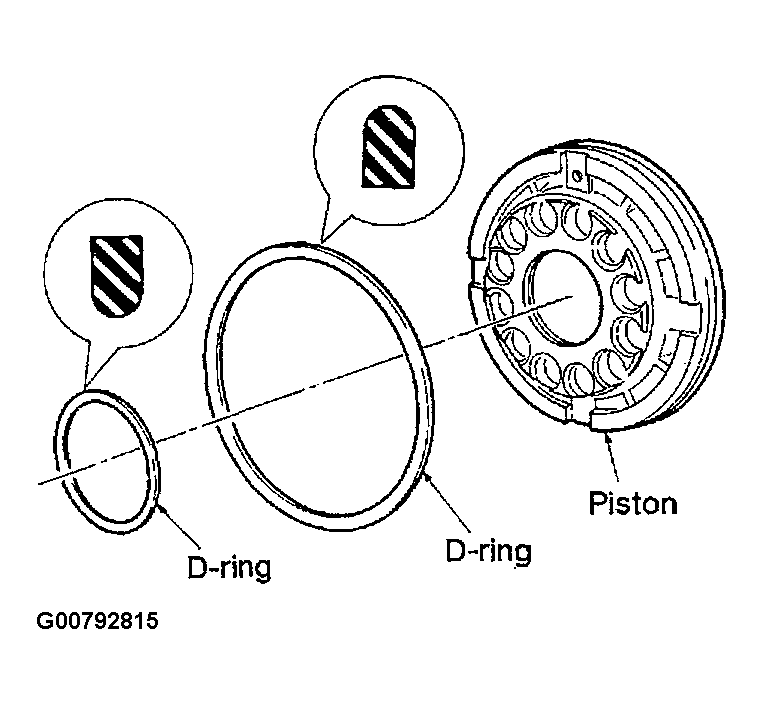

  1. Install D-rings on piston.
    • Apply ATF to both parts.
    Fig 1: Installing D-Rings On Piston
    G00792815Courtesy of NISSAN MOTOR CO., U.S.A.

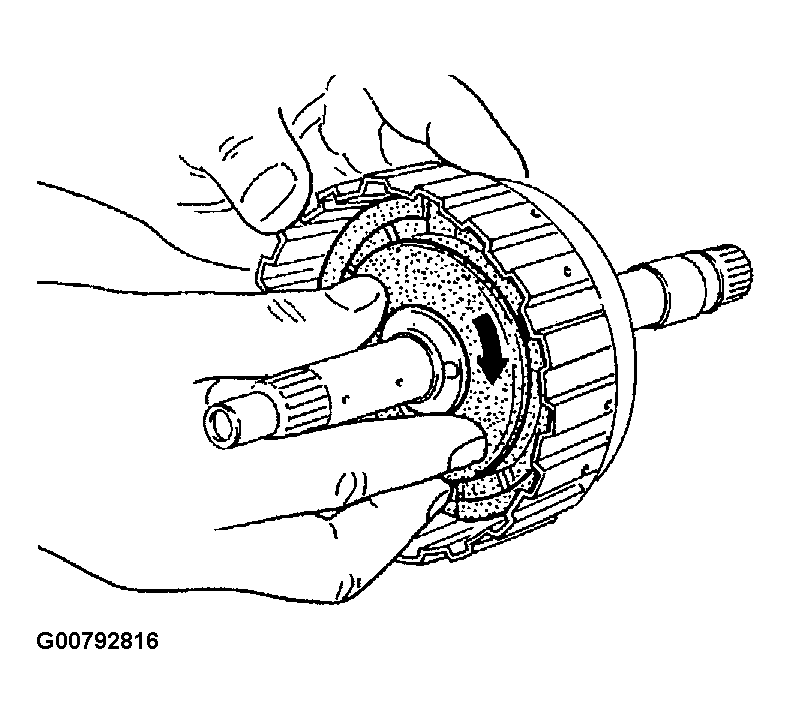

  2. Install piston assembly by turning it slowly.
    • Apply ATF to inner surface of drum.
    Fig 2: Installing Piston Assembly By Turning
    G00792816Courtesy of NISSAN MOTOR CO., U.S.A.

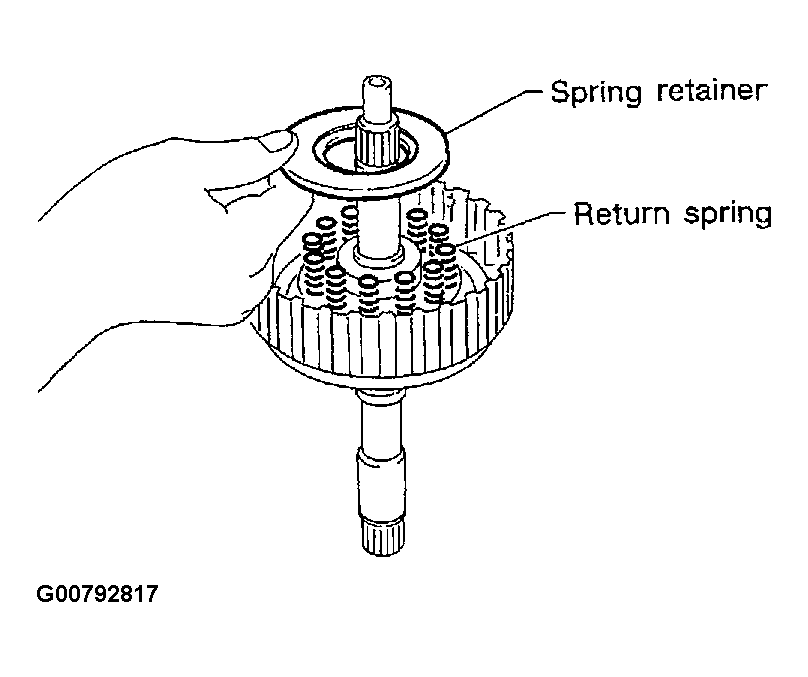

  3. Install return springs and spring retainer on piston.
    Fig 3: Installing Return Springs And Spring Retainer On Piston
    G00792817Courtesy of NISSAN MOTOR CO., U.S.A.

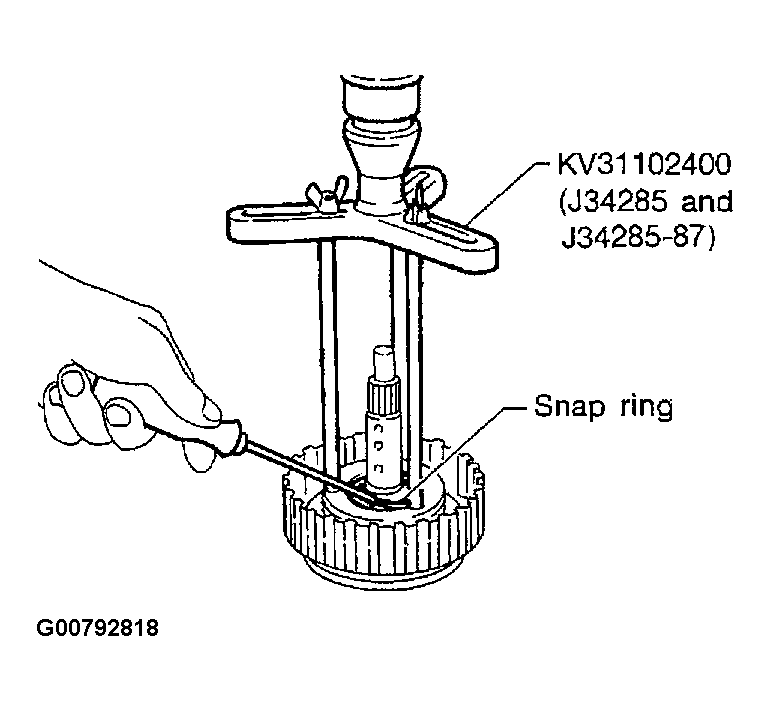

  4. Set Tool on spring retainer and install snap ring while compressing return springs.
    • Set Tool directly over return springs.
      Fig 4: Installing Snap Ring To High Clutch Drum
      G00792818Courtesy of NISSAN MOTOR CO., U.S.A.

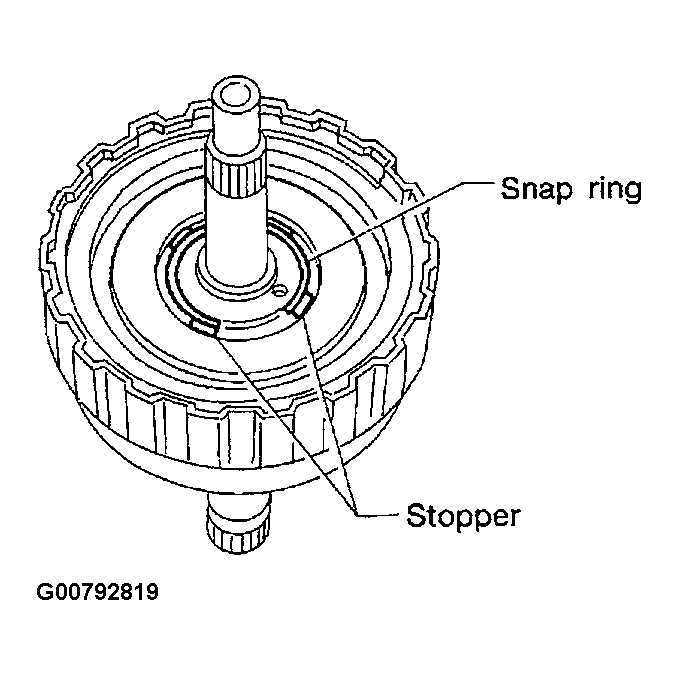

    • Do not align snap ring gap with spring retainer stopper.
    Fig 5: Precautions For Snap Ring Gap Aligning With Spring Retainer Stopper
    G00792819Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install drive plates, driven plates and retaining plate.
    • Take care with the order and direction of plates.

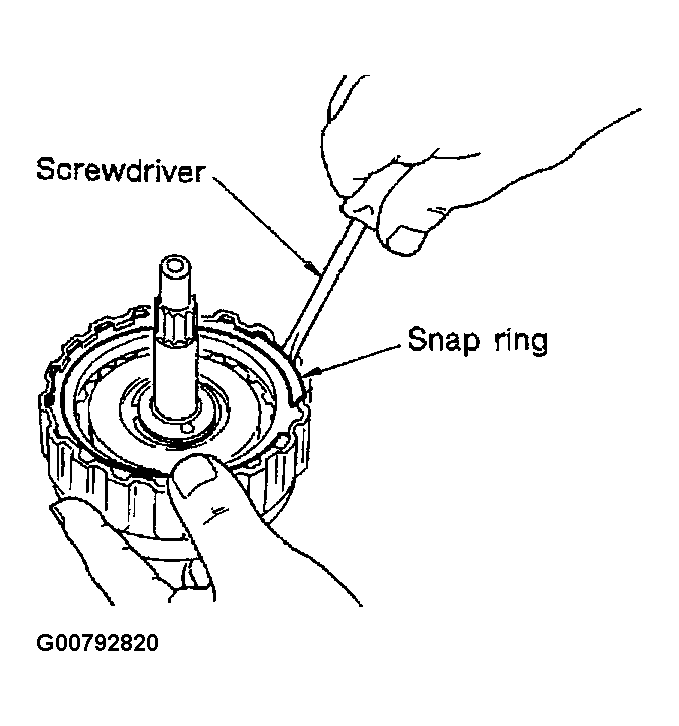

  6. Install snap ring.
    Fig 6: Installing Snap Ring
    G00792820Courtesy of NISSAN MOTOR CO., U.S.A.

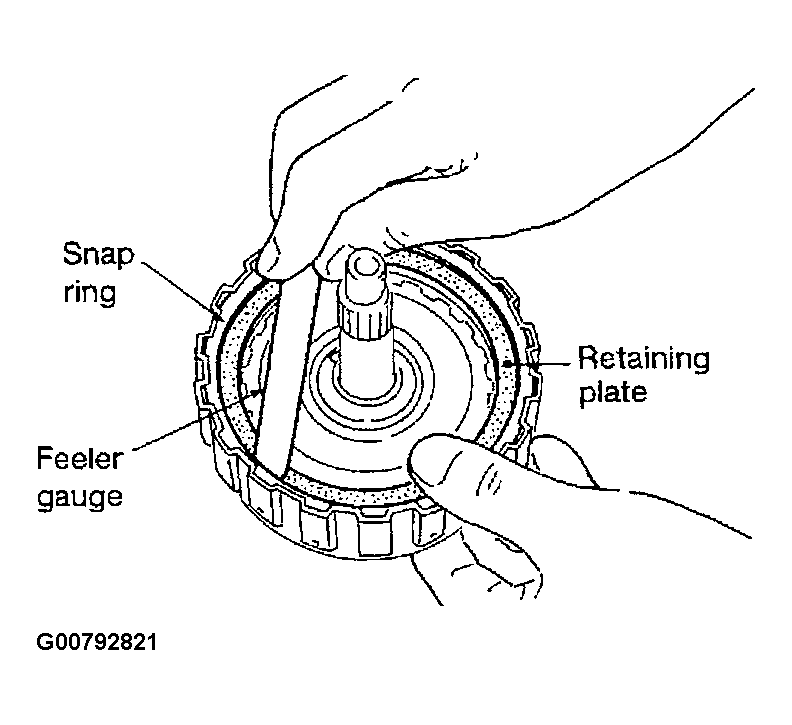

  7. Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.
    1. Specified clearance: Standard 1.8 - 2.2 mm (0.071 - 0.087 in)
    2. Allowable limit 2.8 mm (0.110 in)
    3. Retaining plate: Refer to SDS,  RETURN SPRING  .
    Fig 7: Measuring Clearance Between Retaining Plate And Snap Ring
    G00792821Courtesy of NISSAN MOTOR CO., U.S.A.

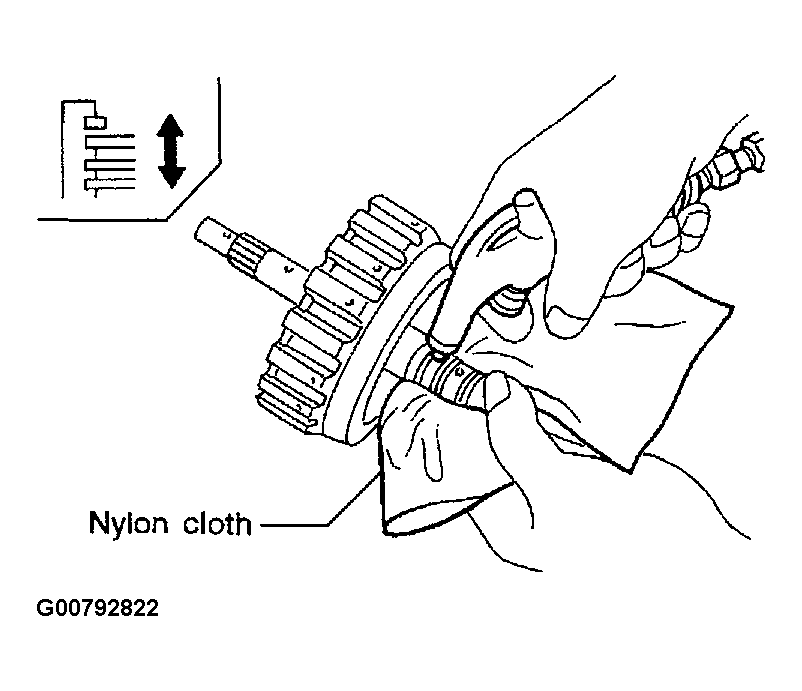

  8. Check operation of high clutch.

    Refer to "DISASSEMBLY ", "High Clutch" .

    Fig 8: Checking High Clutch Operation
    G00792822Courtesy of NISSAN MOTOR CO., U.S.A.

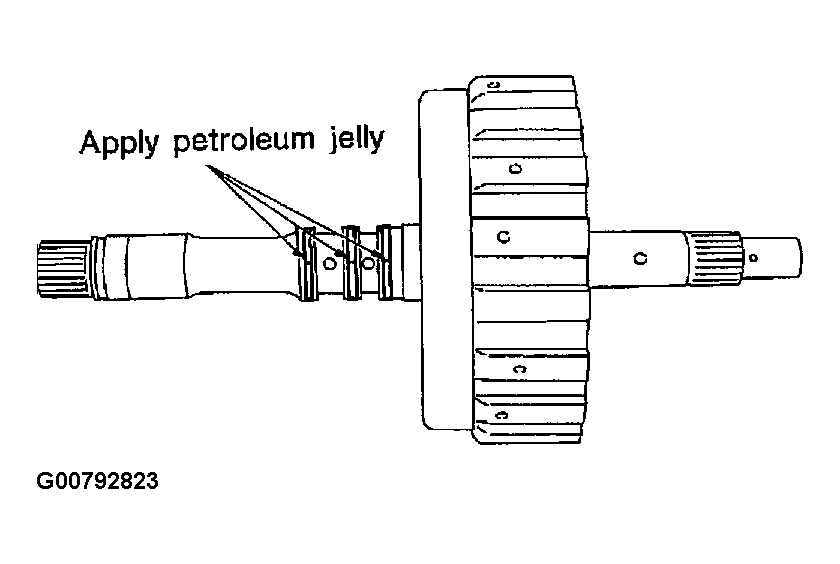

  9. Install seal rings to input shaft.

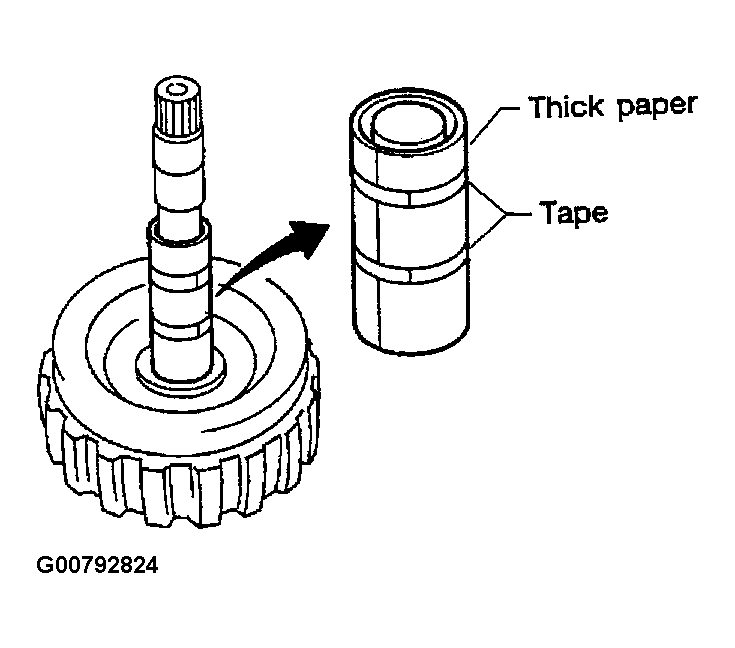

Fig 10: Precautions For Seal Rings
G00792824Courtesy of NISSAN MOTOR CO., U.S.A.
