A/T Fluid Temperature Sensor

Remarks: Specification data are reference values.

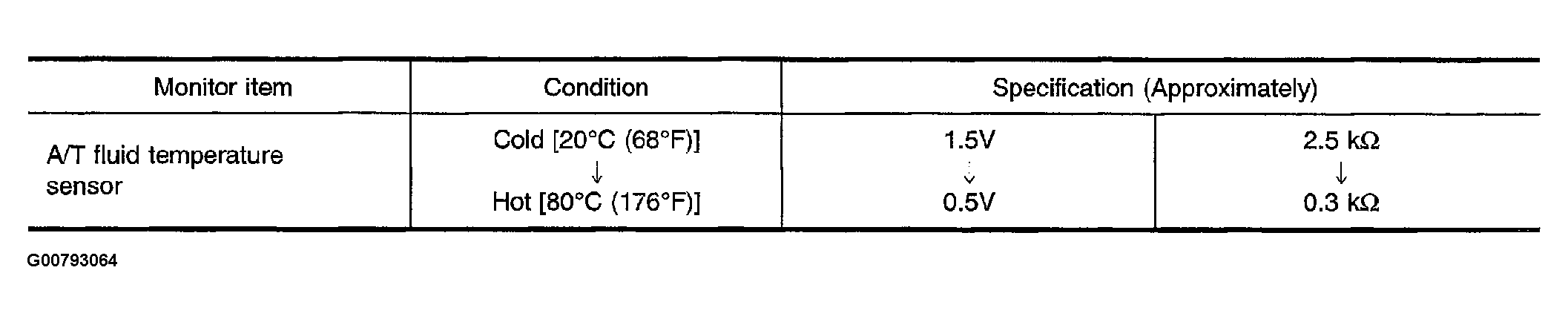

Fig 1: Specifications - Automatic Transmission Fluid Temperature Sensor
G00793064Courtesy of NISSAN MOTOR CO., U.S.A.
