Service Data And Specifications (SDS): Accumulator: O-Ring

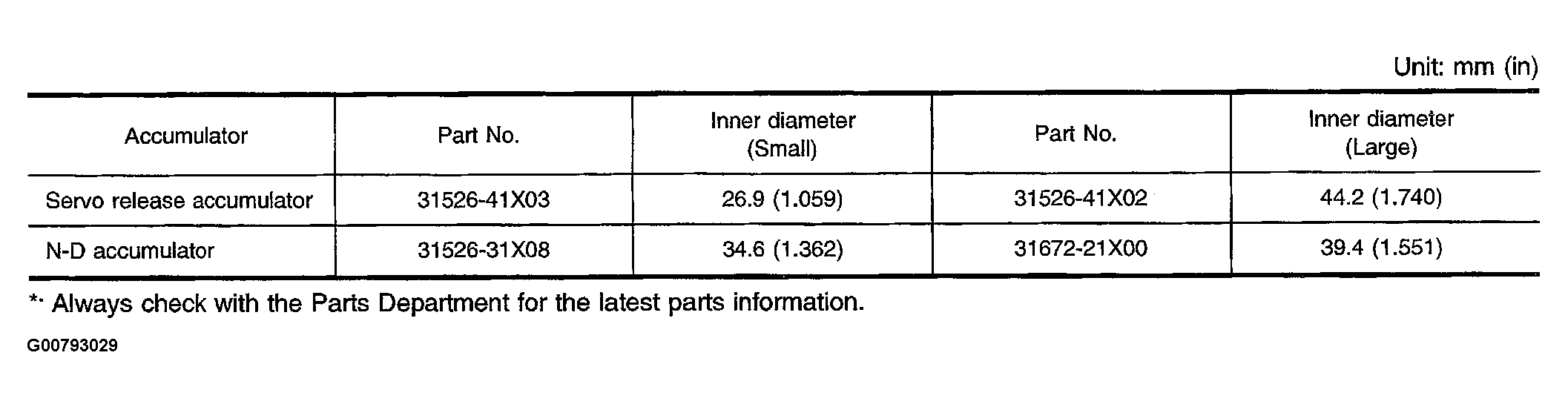

Fig 1: Specifications - Accumulator - O-Ring
G00793029Courtesy of NISSAN MOTOR CO., U.S.A.
