Line Pressure

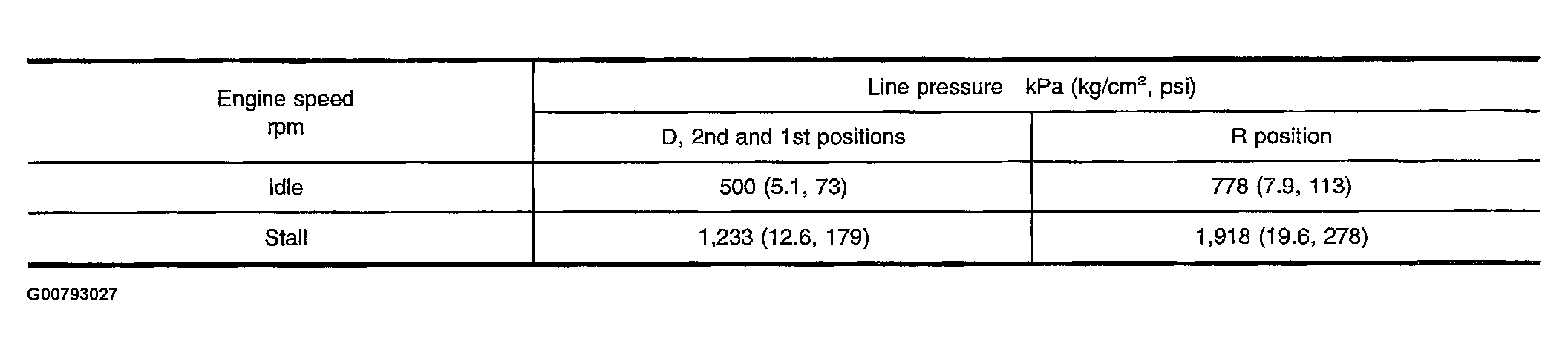

Fig 1: Specifications - Line Pressure
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
