Terminals and Reference Values for Voice Activated Control Module

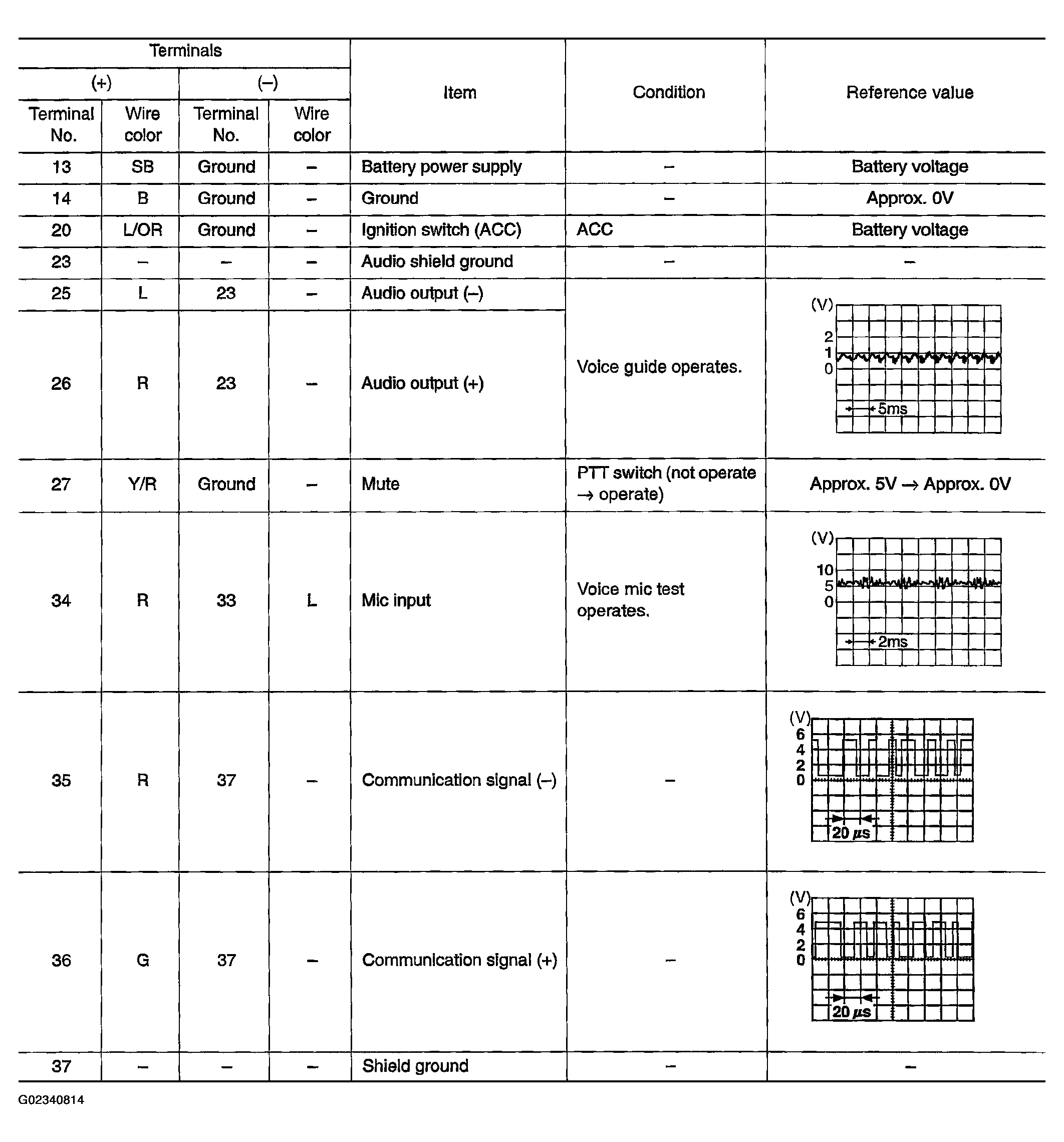

Fig 1: Identifying Terminal Reference Values
Courtesy of NISSAN MOTOR CO., U.S.A.
