Terminals And Reference Value For ICC Radar Sensor

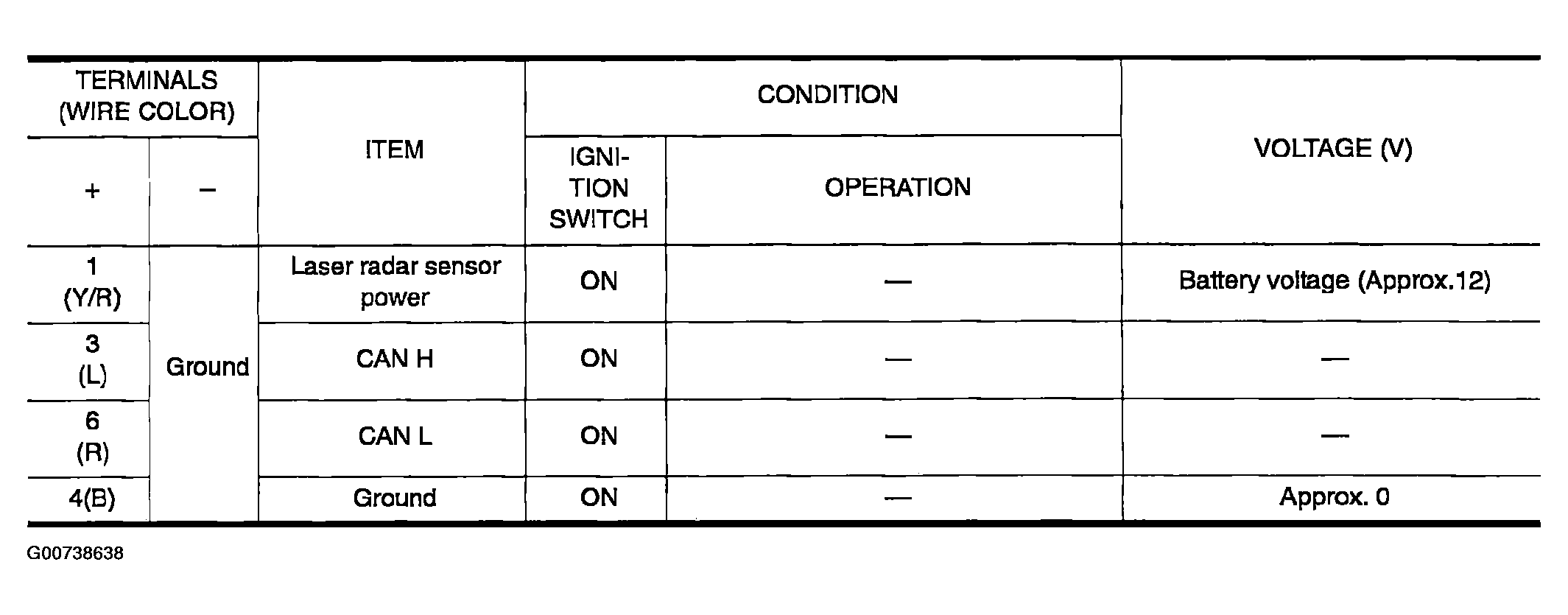

Fig 1: Terminals & Reference Value For ICC Radar Sensor Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
