Navigation System: Schematic

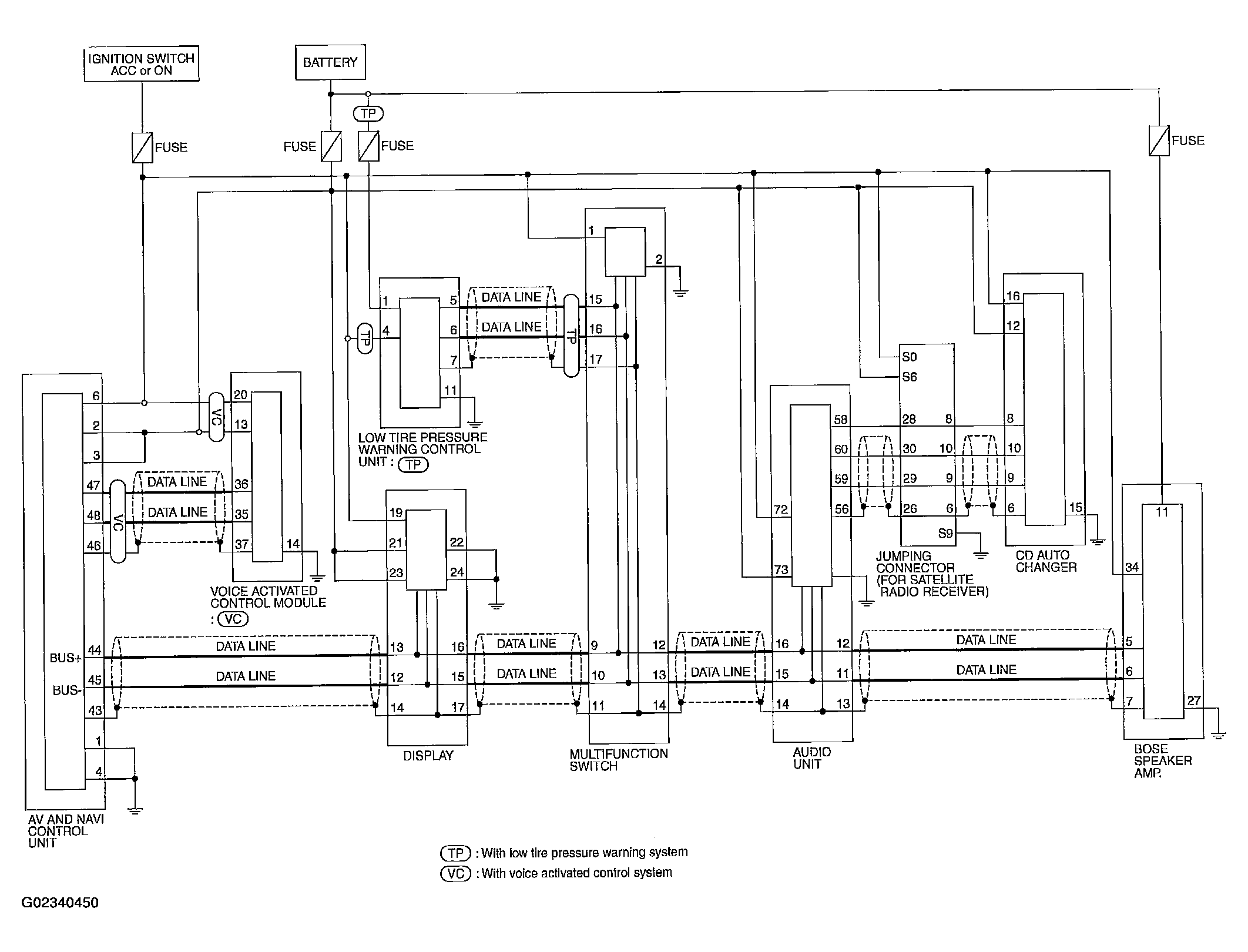

Fig 1: Navigation System Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

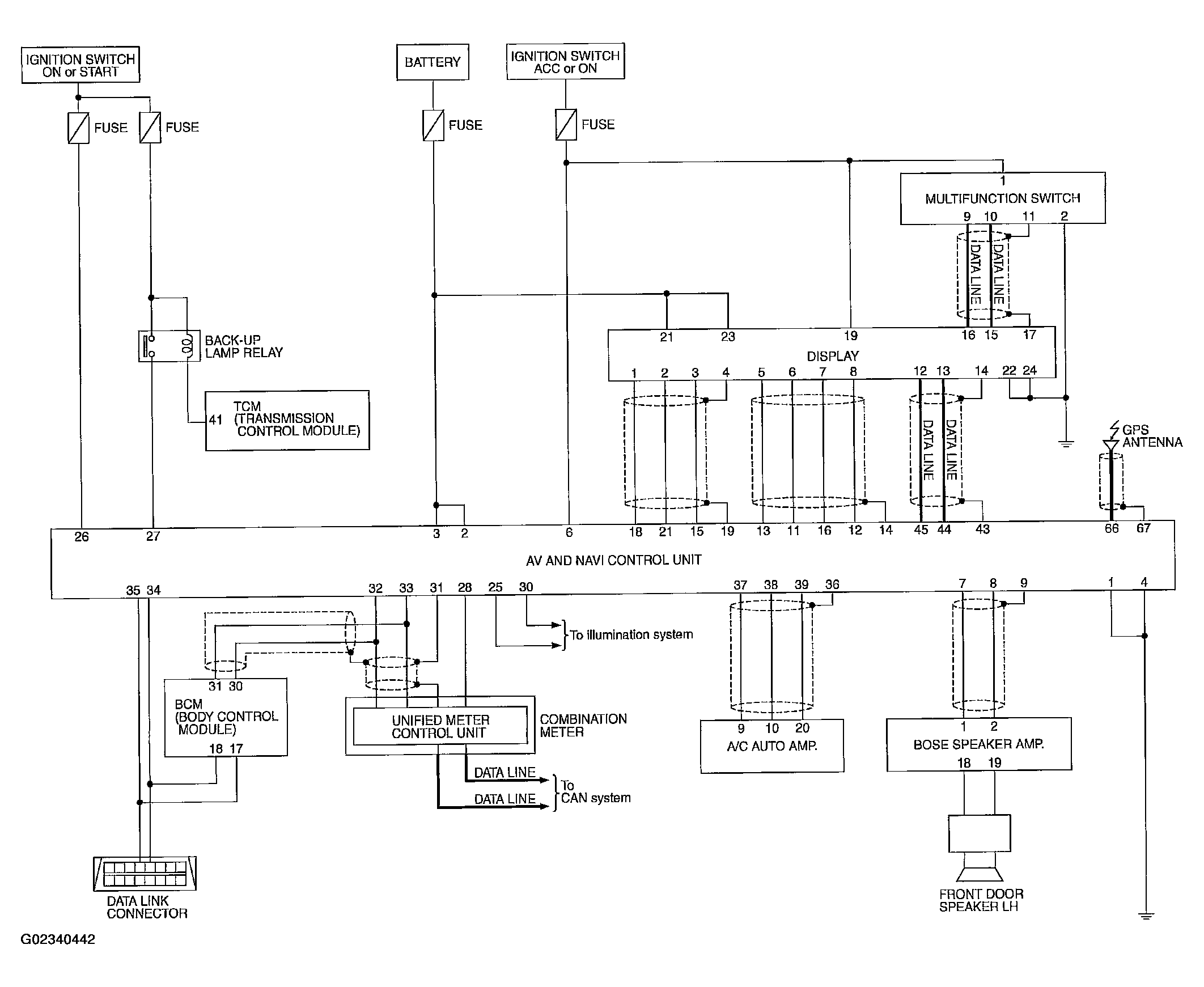

Fig 1: Navigation System Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
