4. Check Ignition Timing

Check the following items. Refer to BASIC INSPECTION.

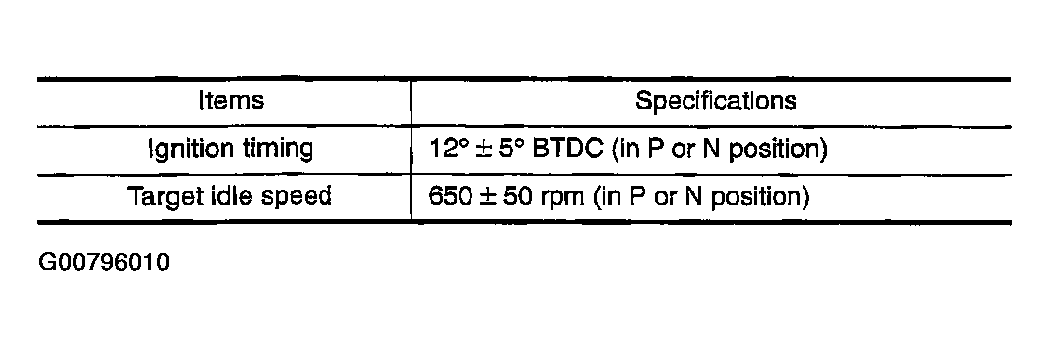

Fig 1: Ignition Timing & Idle Speed Specifications Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 5.
NG: Follow the BASIC INSPECTION.
