Check For ON/OFF Switch

  1. Start the engine. Then, check the following operations are carried correctly.
  2. "CRUISE" lamp (green) illuminates and ICC system indicator goes off when ON/OFF switch is pressed "ON" for more than 1.5 seconds, and then ready for operation. The illumination goes off when ON/OFF switch is turned to OFF.
  3. "CRUISE" illumination go off when the key switch is turned to OFF while ON/OFF switch is ON.

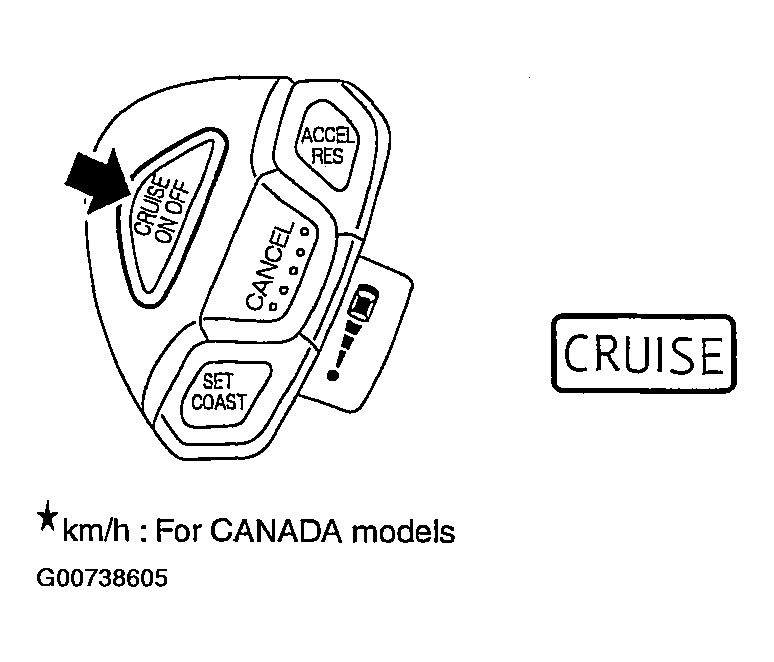

Fig 1: Locating ON/OFF Switch & Identifying CRUISE Indicator
G00738605Courtesy of NISSAN MOTOR CO., U.S.A.
