ICC System Display

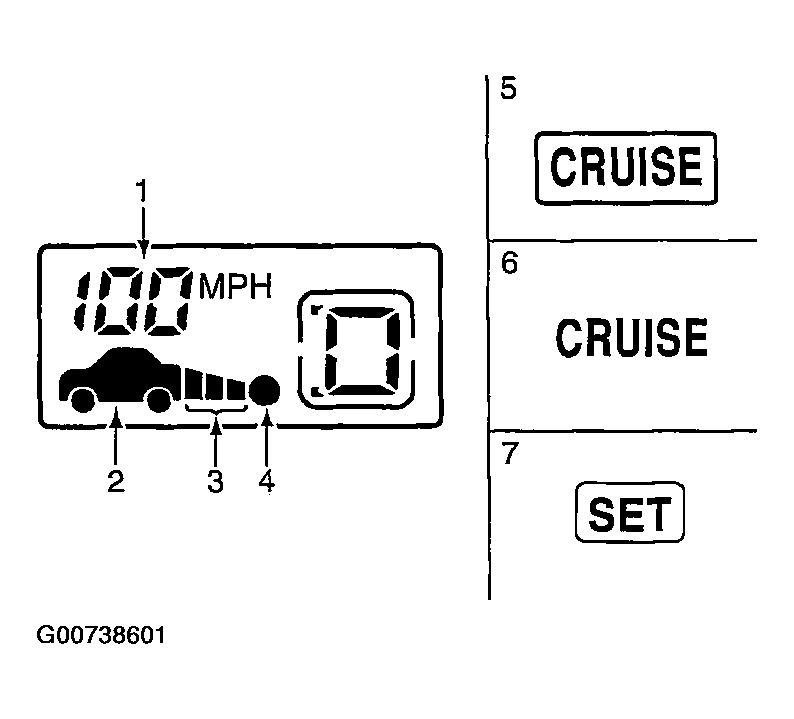

Fig 1: ICC System Display Components
Courtesy of NISSAN MOTOR CO., U.S.A.

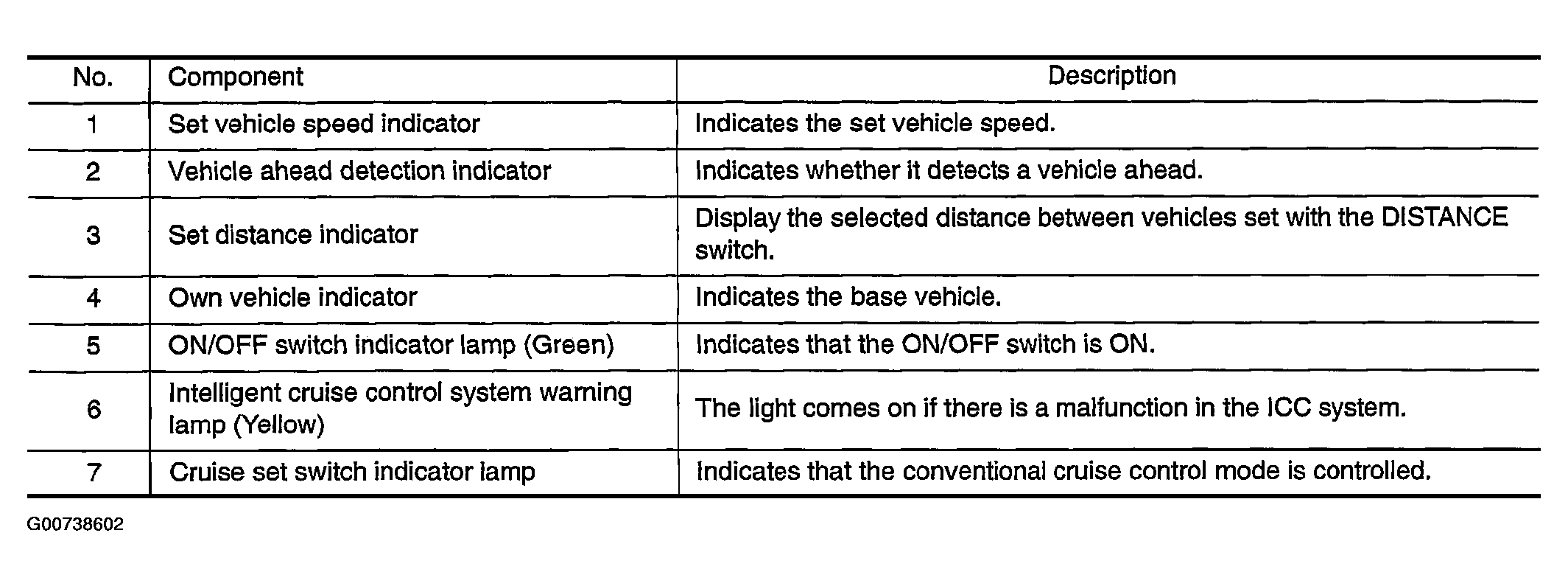

Fig 2: ICC System Display Components Description
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
