Power Window System
>>
Component Parts and Harness Connector Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Parts and Harness Connector Location

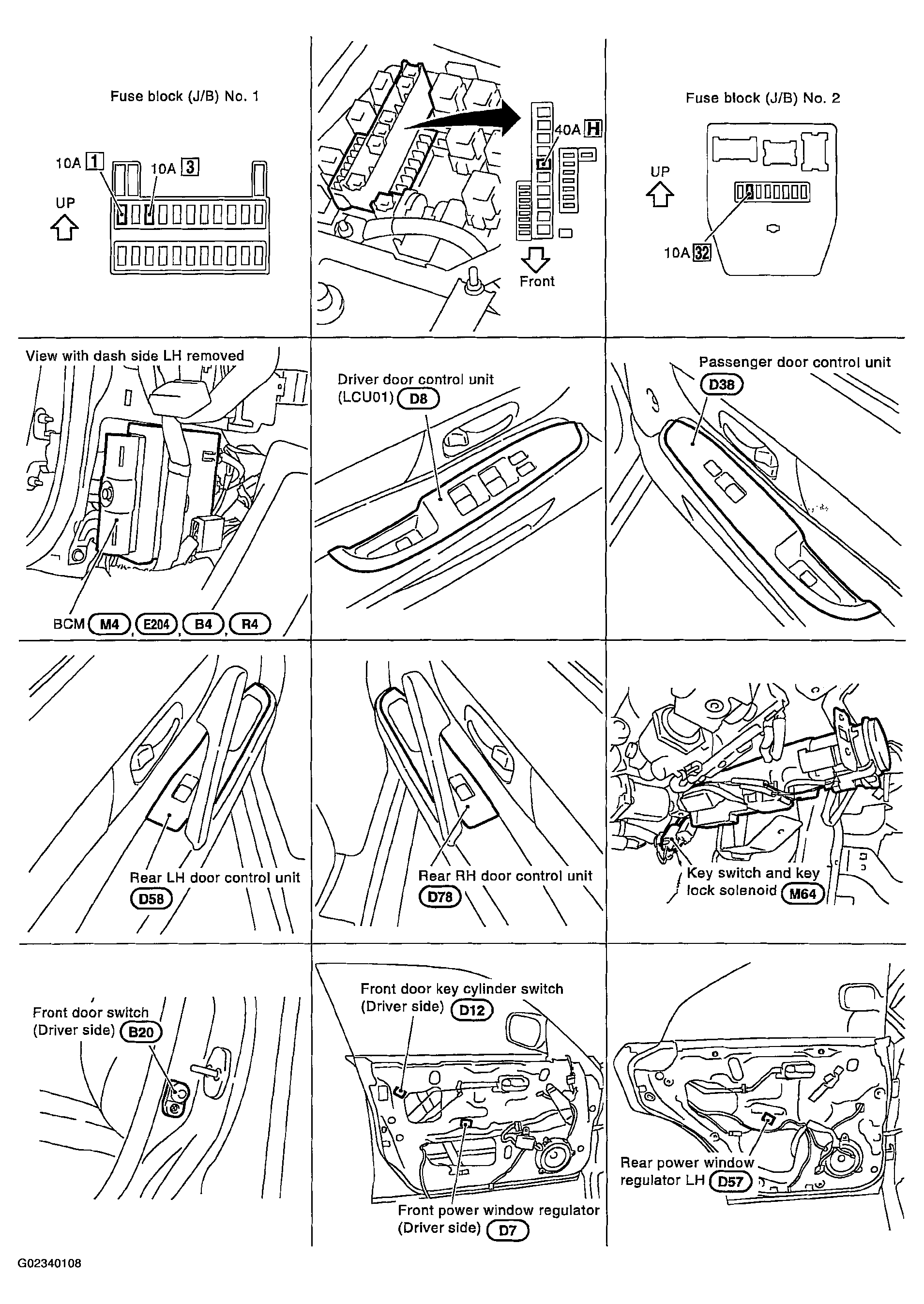

Fig 1: Locating Power Window System Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
