SLIP Lamp

Touch "ON" and "OFF" on the screen. Make sure that SLIP lamp operates as shown in Fig 2

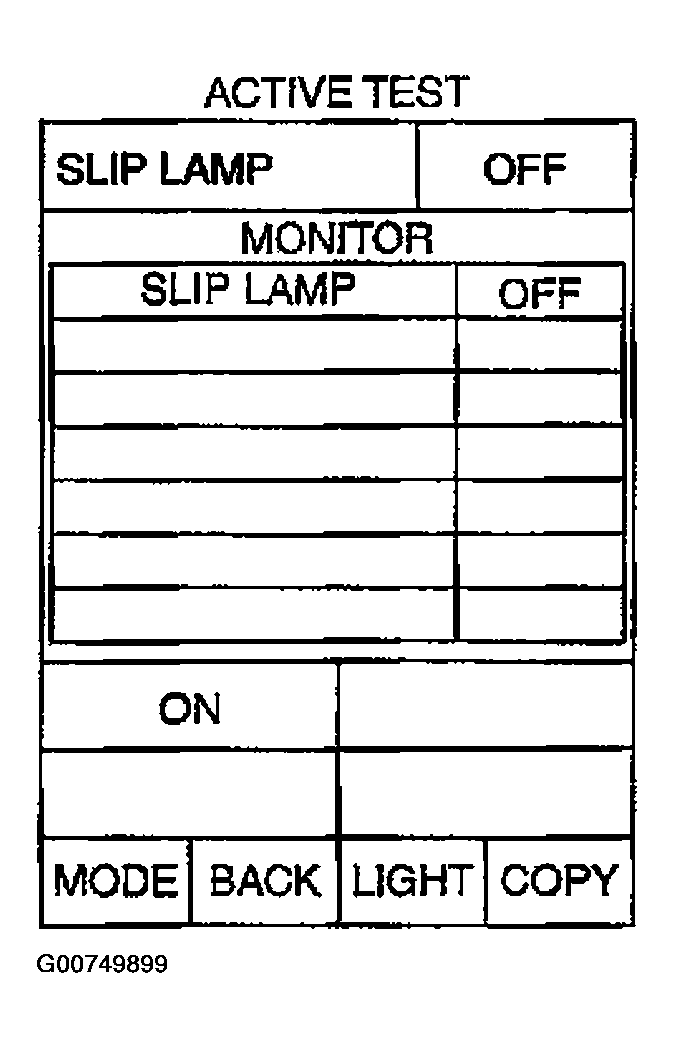

Fig 1: Viewing SLIP LAMP Function On Active Test Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

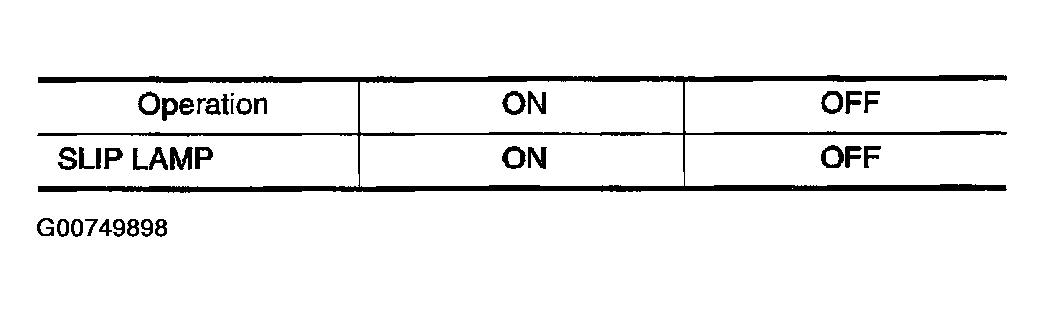

Fig 2: Defining SLIP LAMP Test Result
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If "OFF" is touched on screen during active test, VDC OFF lamp, SLIP lamp, and ABS warning lamp all turn on for a moment. This is normal.
