Inspection 2 Engine System

Check self-diagnosis results.

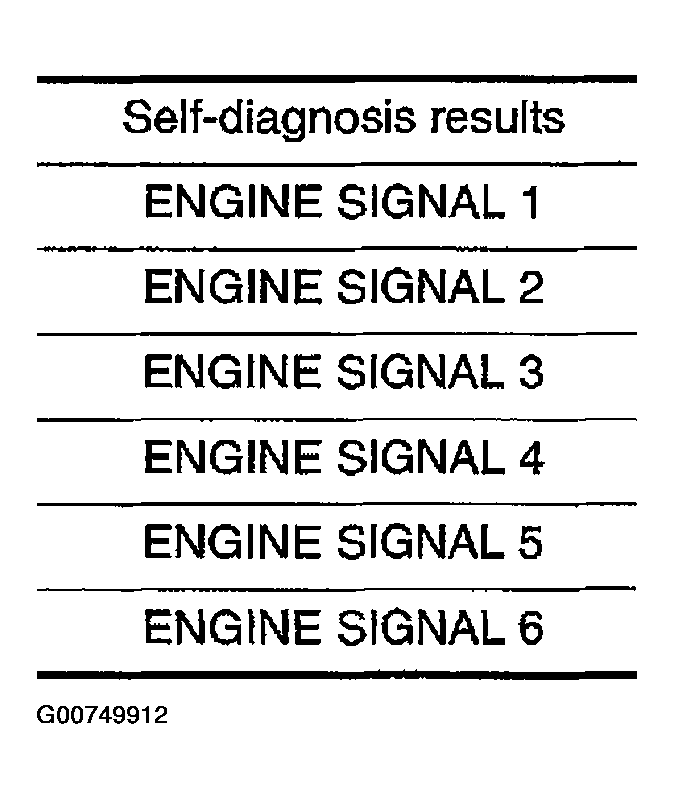

Fig 1: Identifying Self-Diagnosis Results

Courtesy of NISSAN MOTOR CO., U.S.A.

Is the above displayed in the self-diagnosis display items?

1. YES: GO TO 2.
2. NO: Inspection End

1. Conduct an ECM self-diagnosis and repair or replace any non-standard items. Re-conduct the ECM self-diagnosis.
2. Re-conduct the VDC/TCS/ABS control unit self-diagnosis.

OK or NG

1. OK: Inspection End
2. NG: Repair or replace any non-standard items. Re-conduct the self-diagnosis.
