Removal And Installation

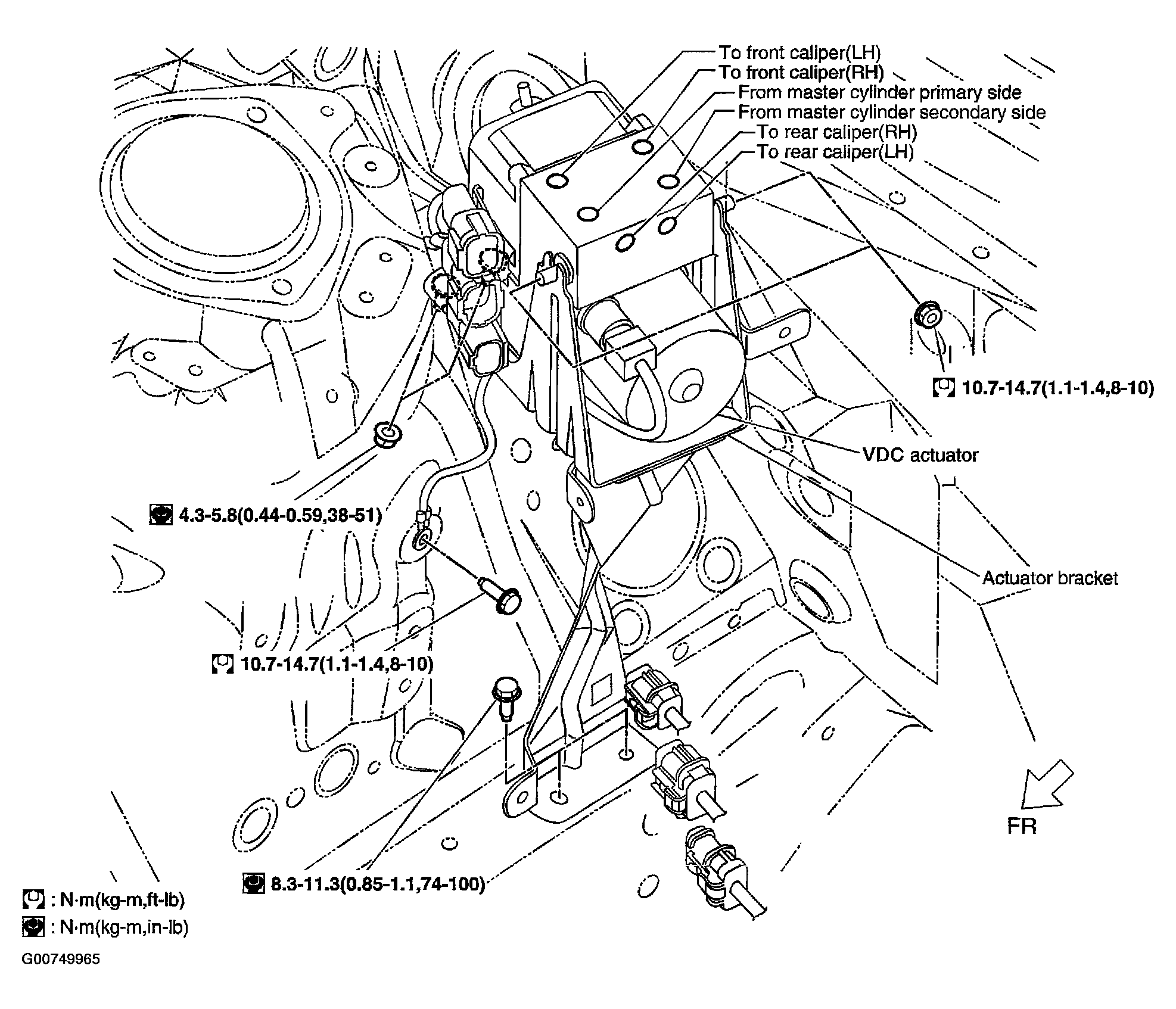

Fig 1: Removing & Installing VDC/TCS/ABS Actuator

Courtesy of NISSAN MOTOR CO., U.S.A.

Pay attention to the following when removing actuator.

CAUTION:

Before servicing, disconnect battery cables.
To remove brake tube, use a flare nut wrench to prevent flare nuts and brake tube from being damaged. To install, use a flare nut wrench (commercial service tool).
Do not remove and install actuator by holding harness.
After work is completed, bleed air from brake piping. Refer to BLEEDING BRAKE SYSTEM .
Be sure to securely connect the ground cable.
