Removal And Installation: Notes

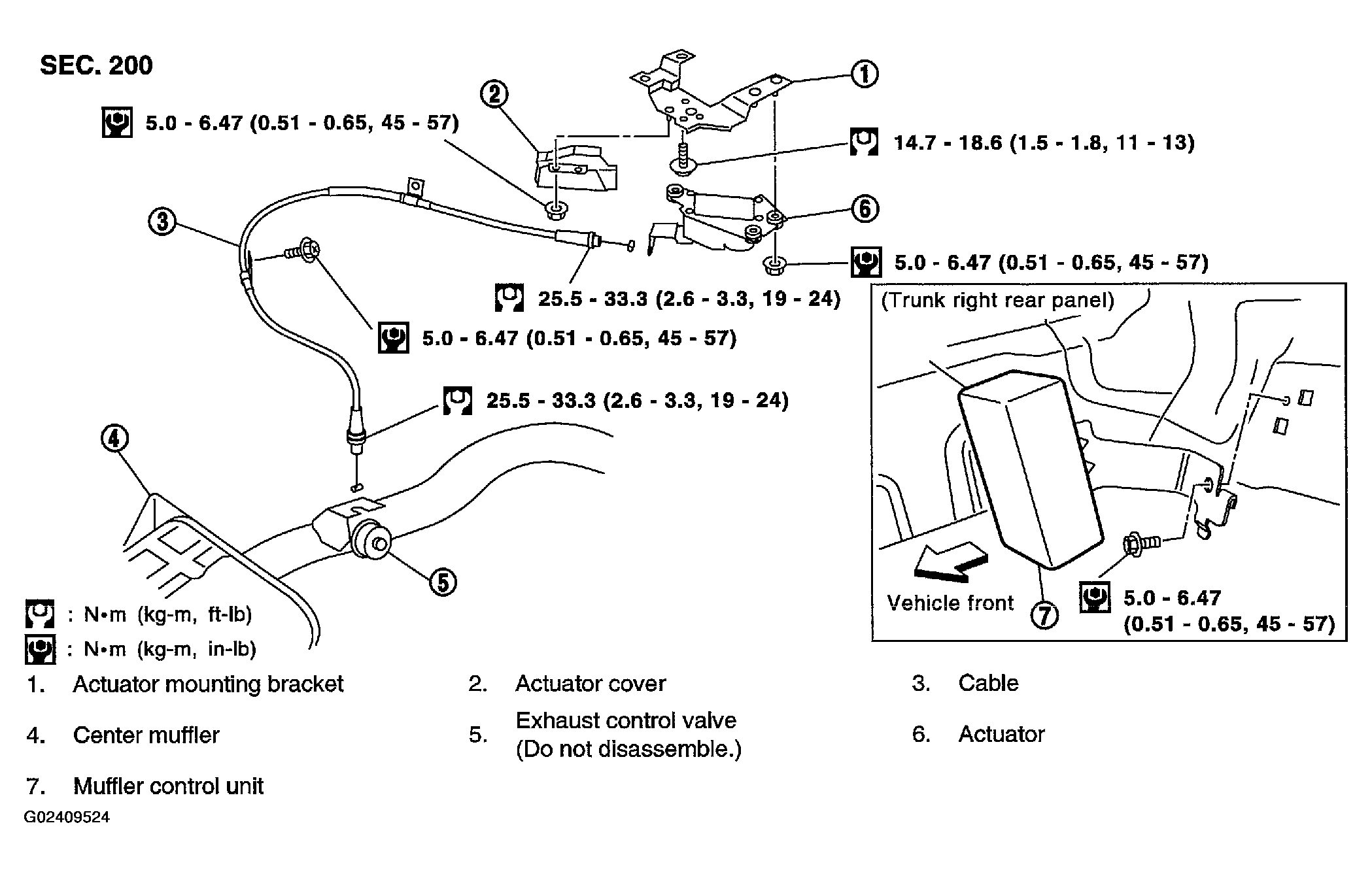

Fig 1: Exploded View Of Dual Mode Muffler Actuator & Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Exhaust control valve is provided in center muffler and not permitted to disassemble.
