Intake Valve Timing Control Solenoid Valve

Disconnect intake valve timing control solenoid valve harness connector.
Check resistance between intake valve timing control solenoid valve terminals as follows.

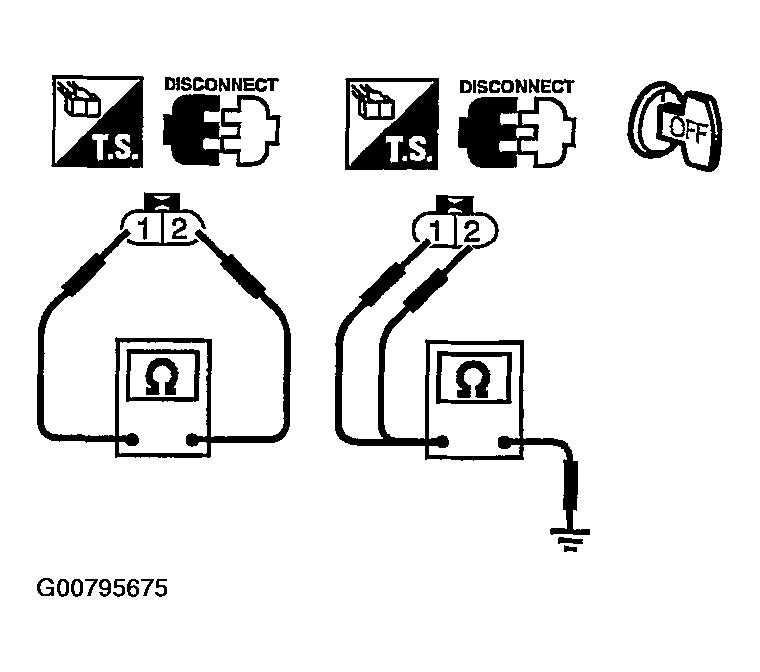

Fig 1: Checking Resistance Between Intake Valve Timing Control Solenoid Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

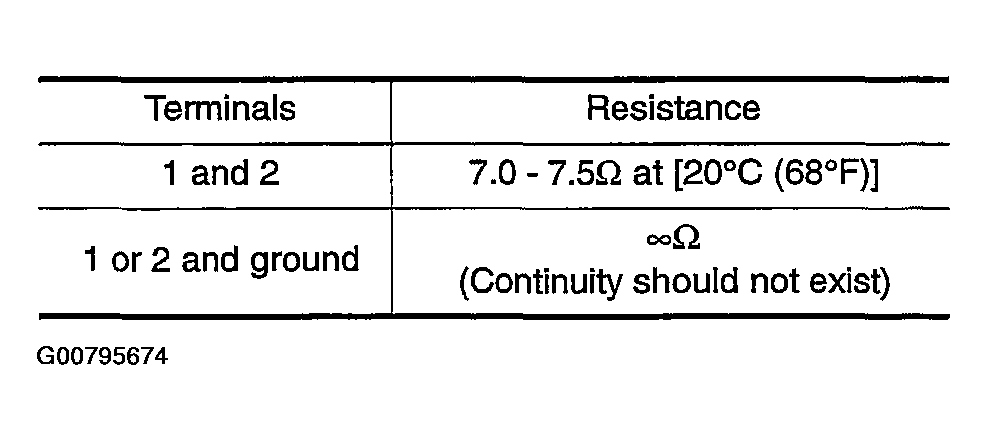

Fig 2: Identifying Terminal Resistance Information

Courtesy of NISSAN MOTOR CO., U.S.A.
