With CONSULT-II

  1. Start engine and warm it up to normal operating temperature.
  2. Select "MANU TRIG" and adjust "TRIGGER POINT" to 100% in "DATA MONITOR" mode with CONSULT-II.

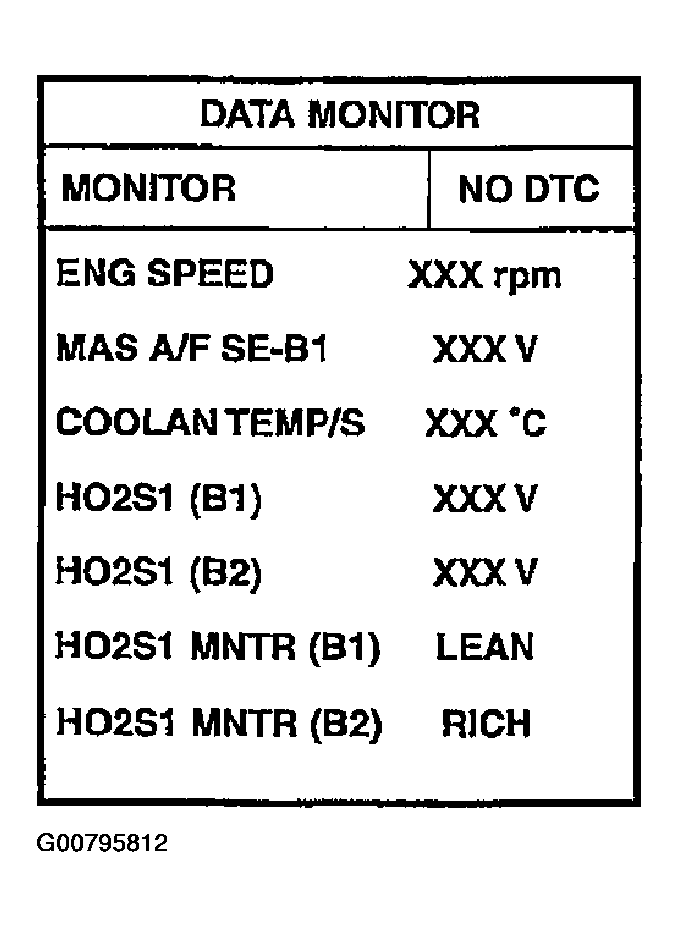

    Fig 1: Scan Tool Display - Data Monitor
    G00795812Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Select "HO2S1 (B1)/(B2)" and "HO2S1 MNTR (B1)/(B2)".
  4. Hold engine speed at 2,000 RPM under no load during the following steps.
  5. Touch "RECORD" on CONSULT-II screen.
  6. Check the following.
    • "HO2S1 MNTR (B1)/(B2)" in "DATA MONITOR" mode changes from "RICH" to "LEAN" to "RICH" more than 5 times in 10 seconds.
    • "HO2S1 (B1)/(B2)" voltage goes above 0.6V at least once.
    • "HO2S1 (B1)/(B2)" voltage goes below 0.3V at least once.
    • "HO2S1 (B1)/(B2)" voltage never exceeds 1.0V.

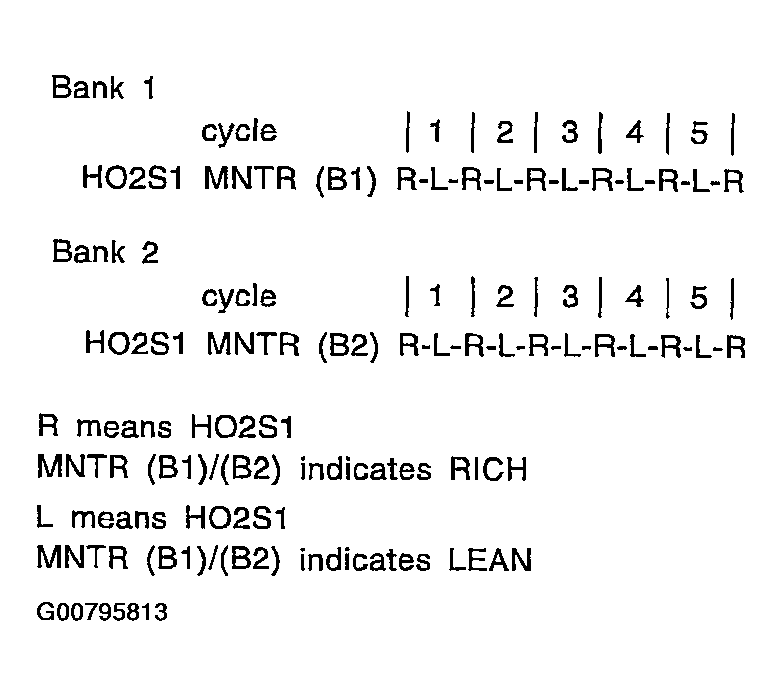

    Fig 2: Scan Tool Display - Data Monitor (1 Of 2)
    G00795813Courtesy of NISSAN MOTOR CO., U.S.A.

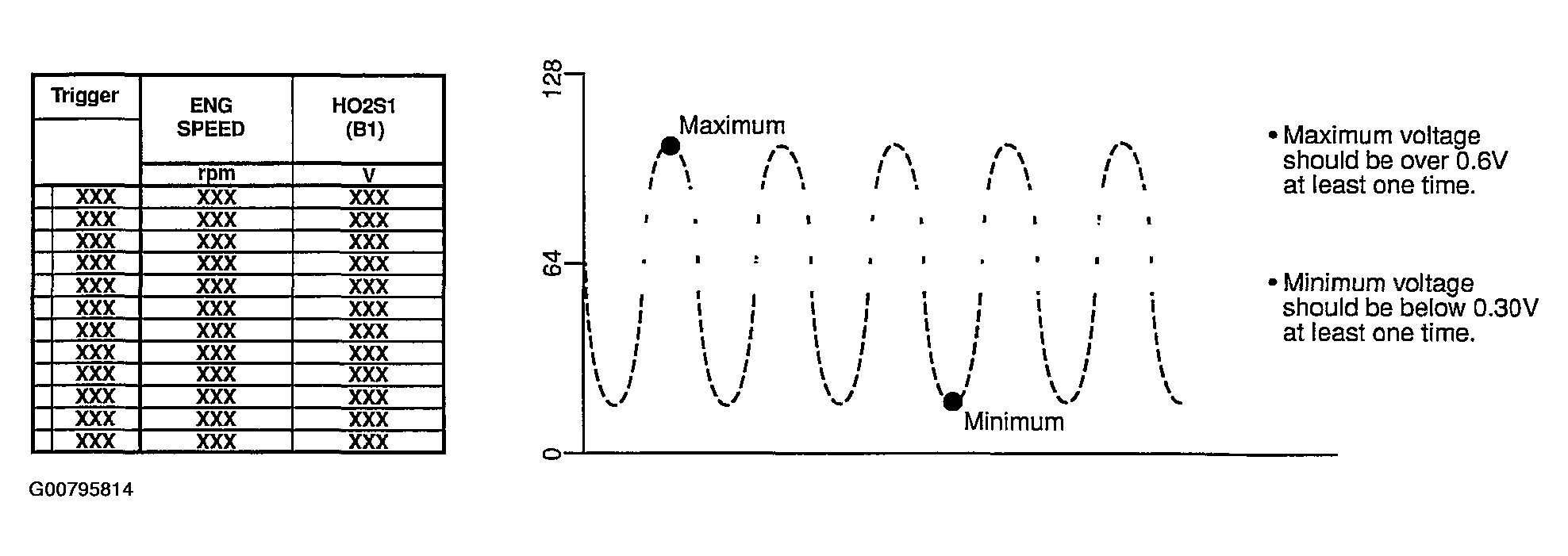

    Fig 3: Scan Tool Display - Data Monitor (2 Of 2)
    G00795814Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
    • Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
