With Consult-II

Start engine and warm it up to normal operating temperature.
Select "HO2S1 (B1) P0134" or "HO2S1 (B2) P0154" of "HO2S1" in "DTC WORK SUPPORT" mode with CONSULT-II.
Touch "START".
Let it idle for at least 3 minutes.
NOTE: Never raise engine speed above 3,000 RPM after this step. If the engine speed limit is exceeded, return to step 4.

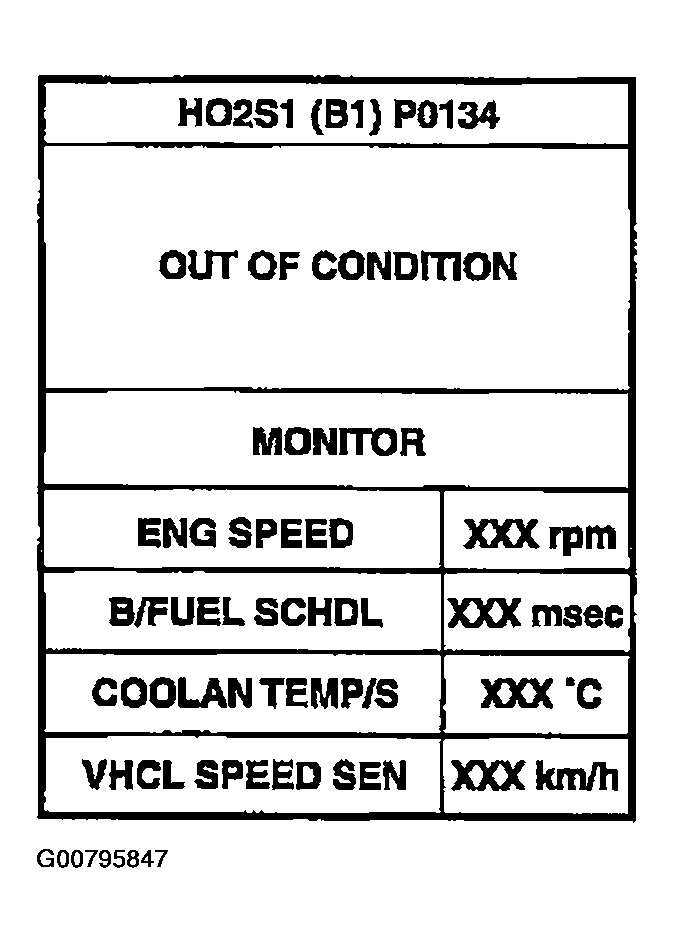

Fig 1: Scan Tool Display - Work Support
Courtesy of NISSAN MOTOR CO., U.S.A.
When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take approximately 10 to 60 seconds.)

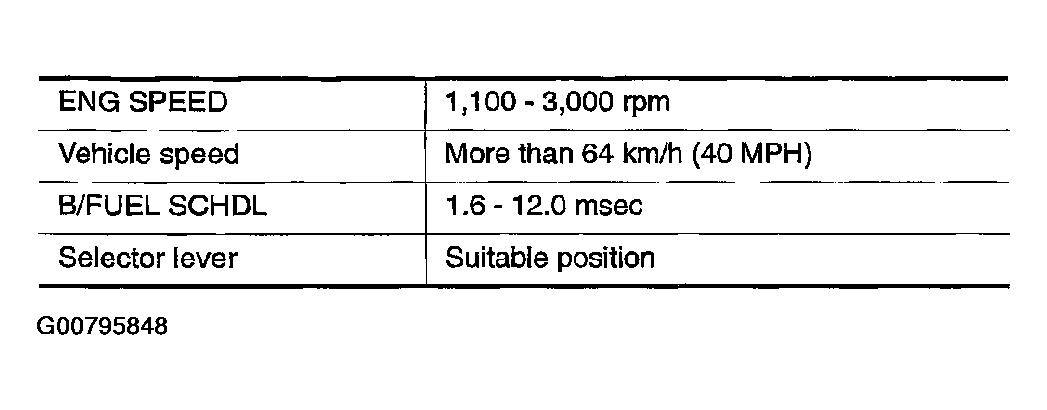

Fig 2: Inspecting Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

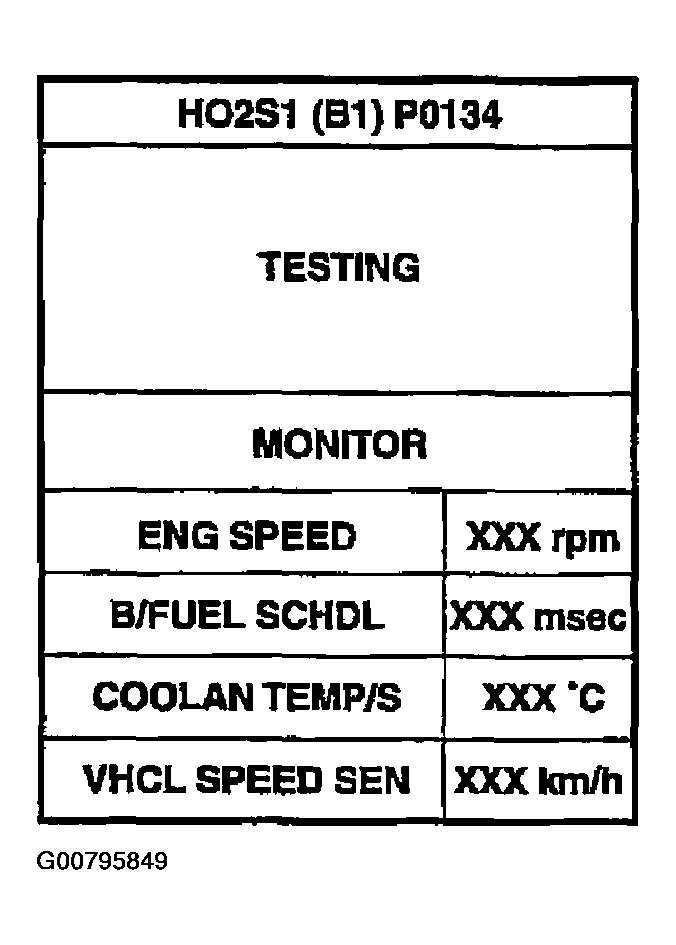

Fig 3: Scan tool Display - Testing
Courtesy of NISSAN MOTOR CO., U.S.A.

If "TESTING" is not displayed after 5 minutes, retry from step 2.
Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, refer to DIAGNOSTIC PROCEDURE .

Fig 4: Scan Tool Display - Self-Diag Results

Courtesy of NISSAN MOTOR CO., U.S.A.
