3. Check Ho2S2 Ground Circuit For Open And Short

1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 2 harness connector.

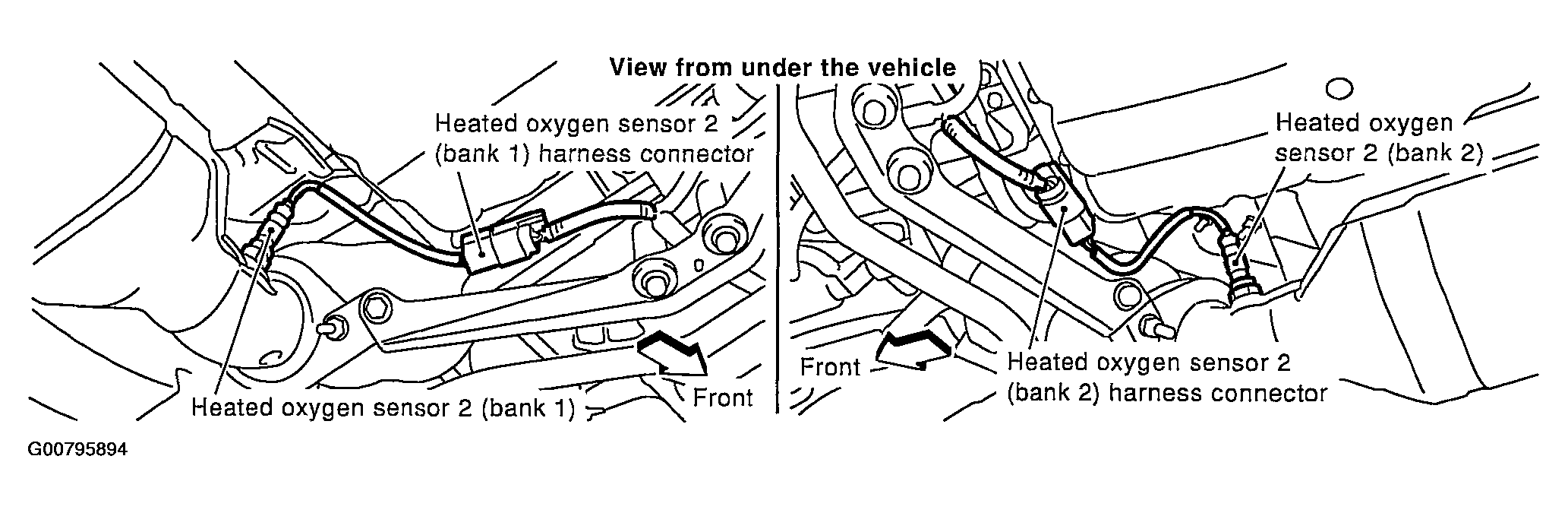

   Fig 1: Identifying HO2S2 Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check harness continuity between HO2S2 terminal 4 and ground. Refer to WIRING DIAGRAM .

   Continuity should exist.

4. Also check harness for short to power.

OK or NG

1. OK: GO TO 5. CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT .
2. NG: GO TO 4.
