13. Check If EVAP Canister Saturated With Water

1. Remove EVAP canister with EVAP canister vent control valve attached.
2. Check if water will drain from the EVAP canister.

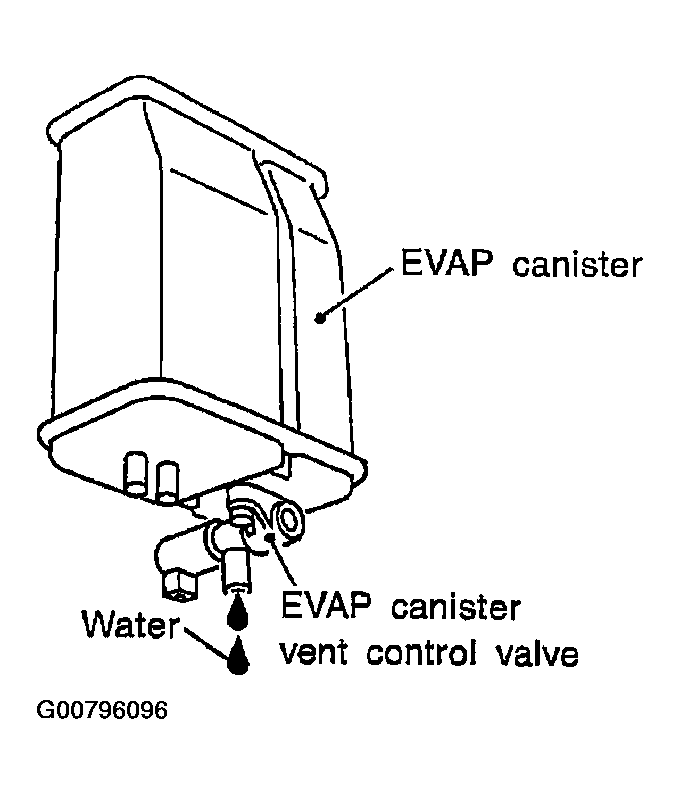

   Fig 1: Checking EVAP Canister For Water

   Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No

1. Yes: GO TO 14.
2. No: GO TO 16. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR SHIELD CIRCUIT FOR OPEN AND SHORT .
