8. Install The Pressure Pump

To locate the EVAP leak, install EVAP service port adapter and pressure pump to EVAP service port securely.

NOTE: Improper installation of the EVAP service port adapter to the EVAP service port may cause leaking.

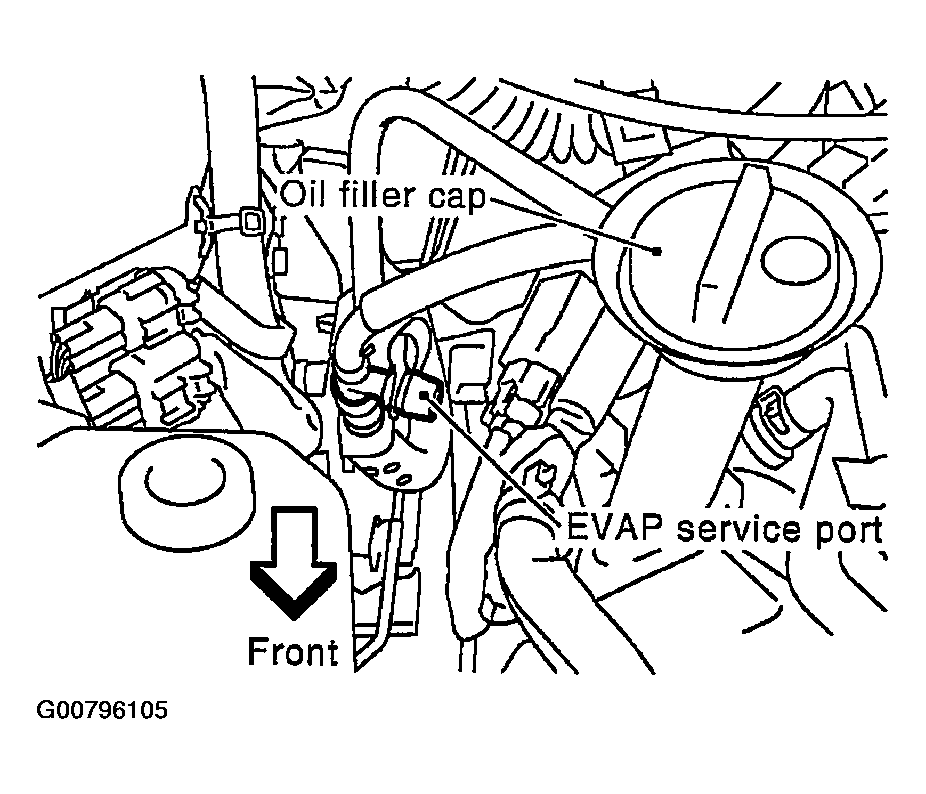

Fig 1: Identifying EVAP Service Port

Courtesy of NISSAN MOTOR CO., U.S.A.

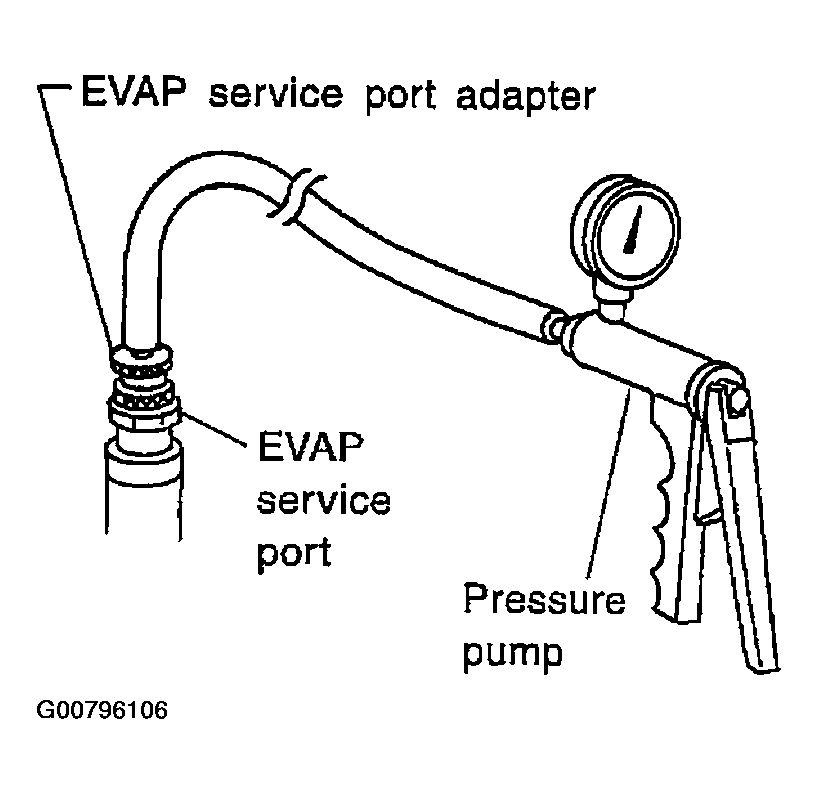

Fig 2: Installing EVAP Service Port Adapter & Pressure Pump

Courtesy of NISSAN MOTOR CO., U.S.A.

With CONSULT-II: GO TO 9.

Without CONSULT-II: GO TO 10. CHECK FOR EVAP LEAK .
