DTC P1119: Radiator Coolant Temperature Sensor: Wiring Diagram

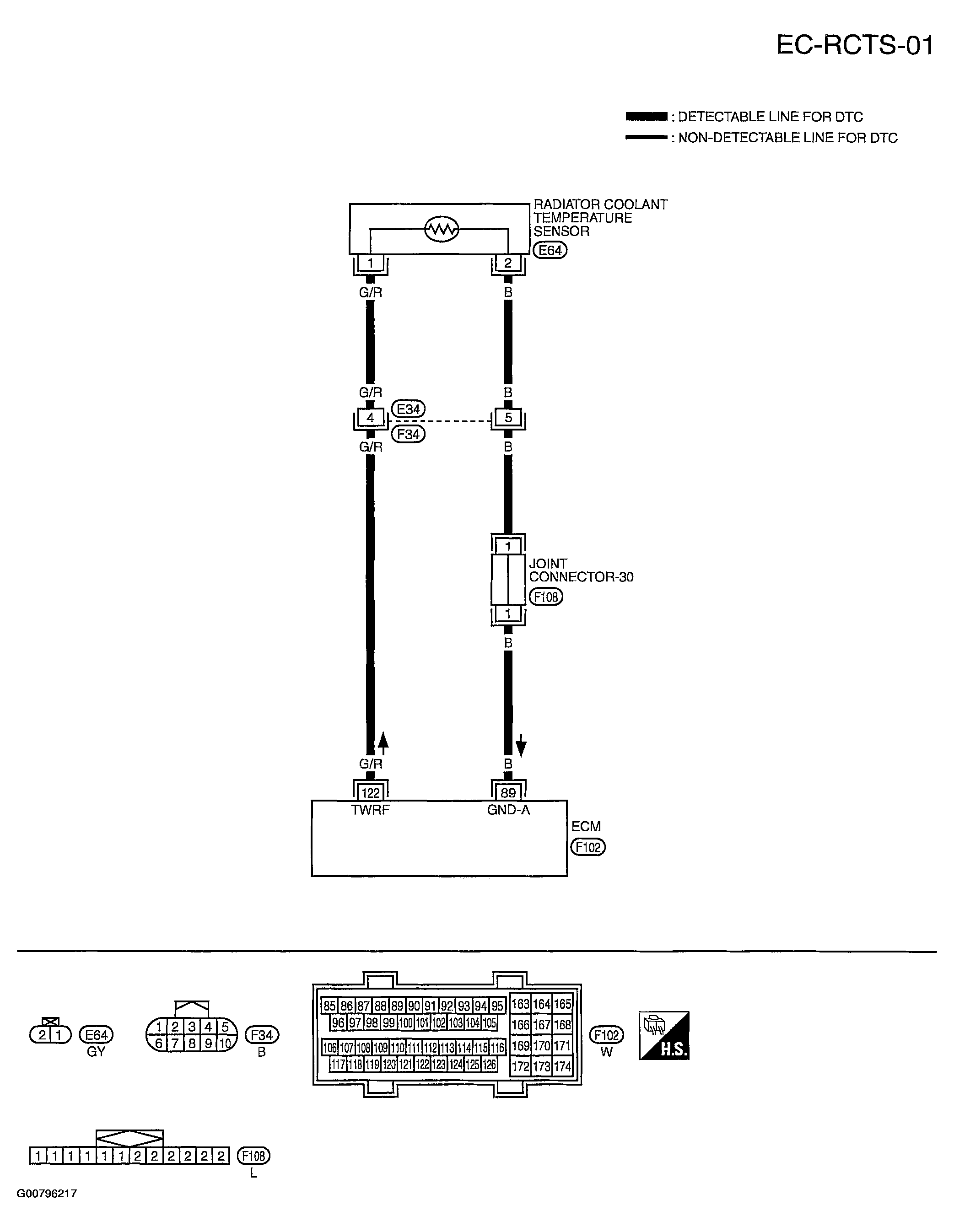

Fig 1: Circuit Diagram - Radiator Coolant Temperature Sensor - EC-RCTS-01
G00796217Courtesy of NISSAN MOTOR CO., U.S.A.
