11. Check Electric Throttle Control Actuator Visually

  1. Remove the intake air duct.
  2. Check if foreign matter is caught between the throttle valve and the housing.

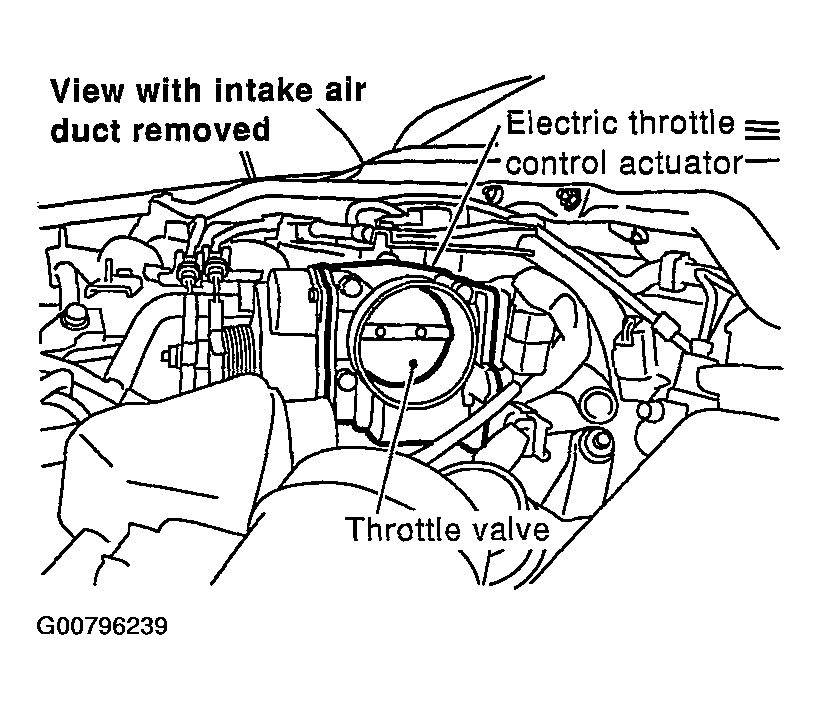

    Fig 1: Visually Inspect Throttle Valve For Foreign Matter
    G00796239Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 12.
  2. NG: Remove the foreign matter and clean the electric throttle control actuator inside.
