1. Check Throttle Control Motor Relay Power Supply

1. Turn ignition switch OFF
2. Disconnect throttle control motor relay harness connector.

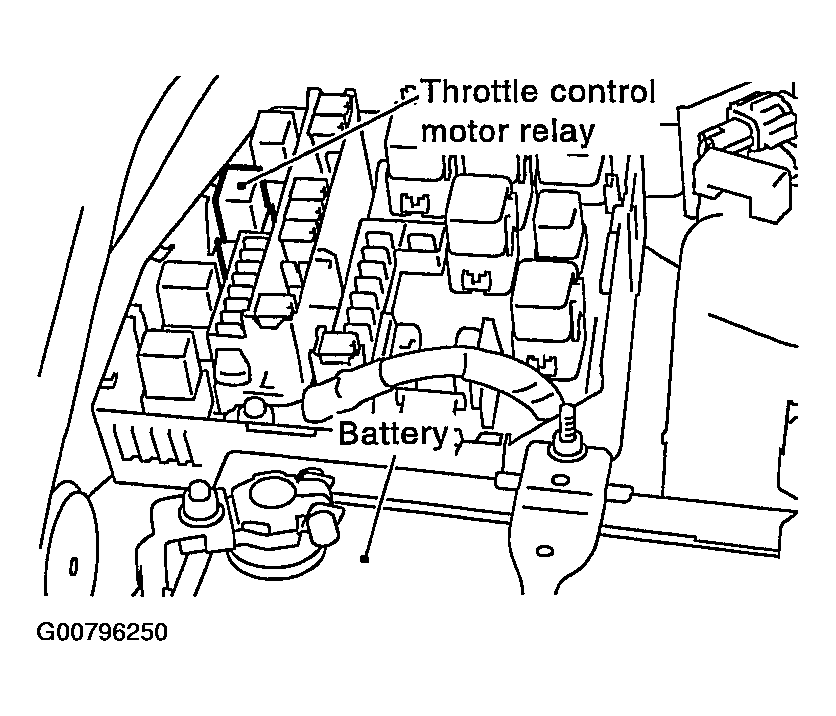

   Fig 1: Identifying Throttle Control Motor Relay

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between throttle control motor relay terminals 2, 5 and ground with CONSULT-II or tester.

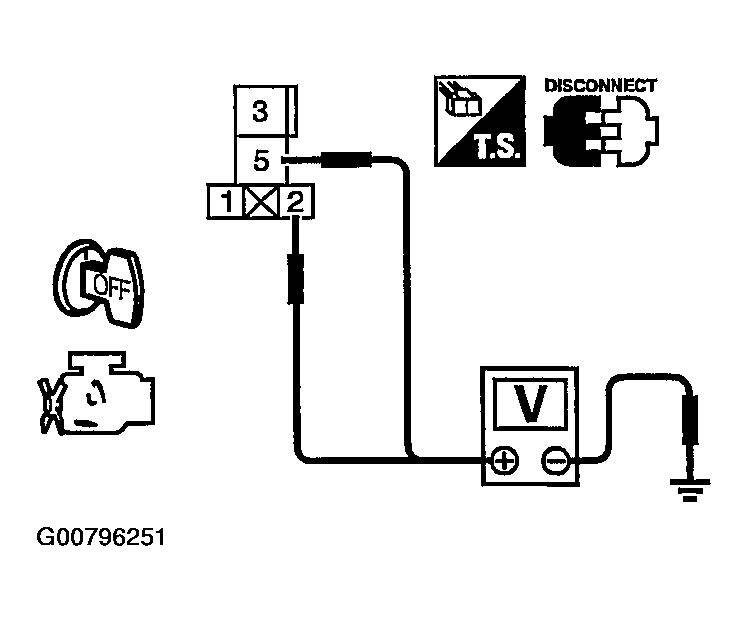

   Fig 2: Checking Voltage Between Throttle Control Motor Relay Terminals 2, 5 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Voltage: Battery voltage

OK or NG

1. OK: GO TO 3. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT .
2. NG: GO TO 2.
