5. Check Ho2S2 Input Signal Circuit For Open And Short

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal and HO2S2 terminal as follows.

   Refer to WIRING DIAGRAM .

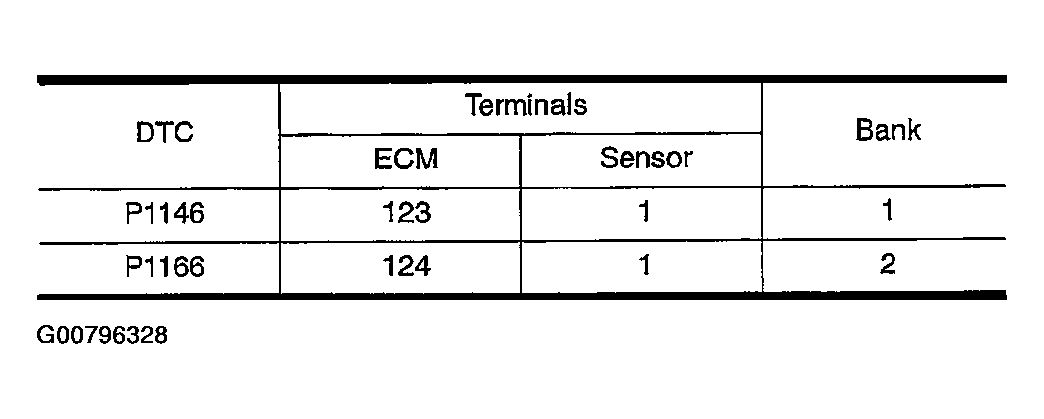

   Fig 1: Checking Harness Continuity Between ECM Terminal & HO2S2 Terminals

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Continuity should exist.

3. Check harness continuity between the following terminals and ground.

   Refer to WIRING DIAGRAM .

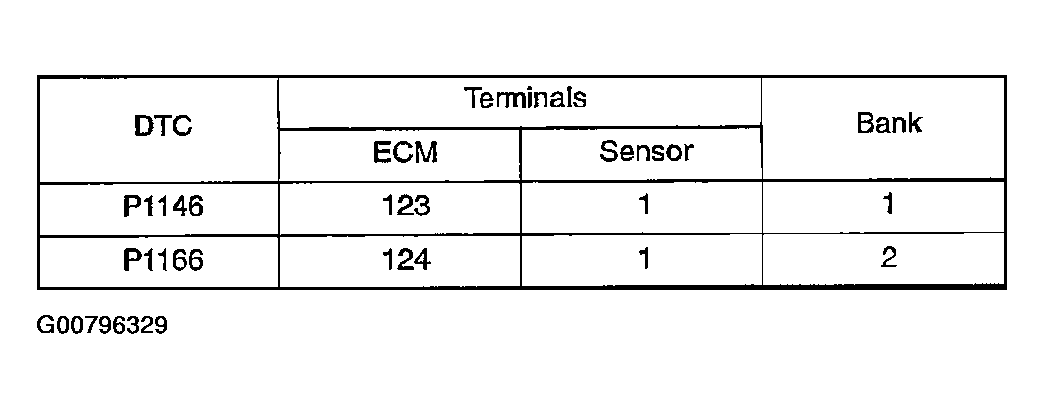

   Fig 2: Checking Harness Continuity Between ECM Terminals & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Continuity should not exist.

4. Also check harness for short to ground or short to short to power.

OK or NG

1. OK: GO TO 7. CHECK HEATED OXYGEN SENSOR 2 .
2. NG: GO TO 6.
