13. Check Thermostat

1. Remove thermostat.
2. Check valve seating condition at normal room temperatures.

   It should seat tightly.

3. Check valve opening temperature and valve lift.

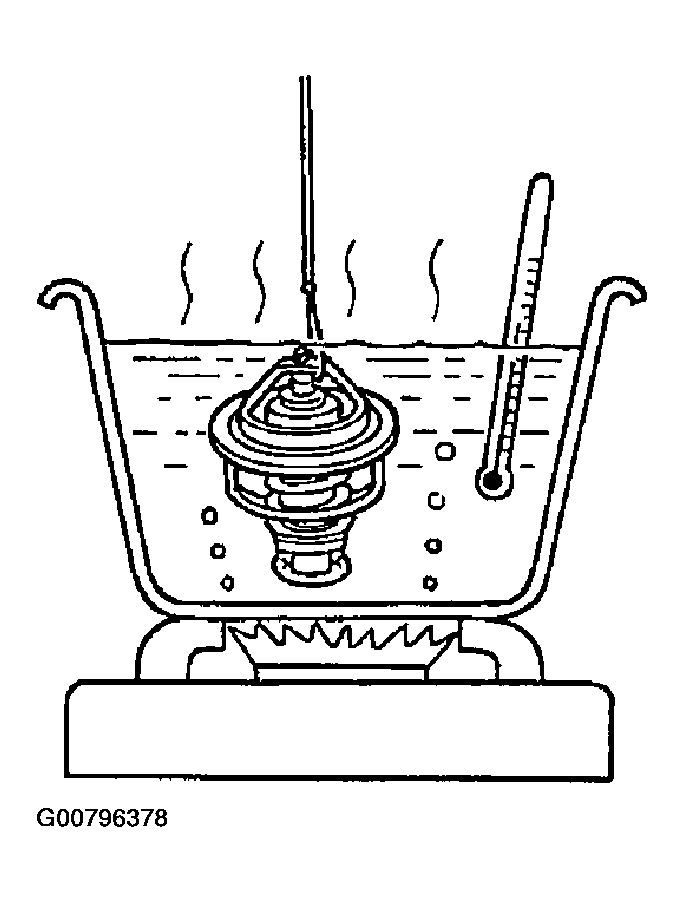

   Fig 1: Testing Thermostat

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Valve opening temperature: 95°C (203°F) [standard]

   valve lift: More than 8.0 mm/108°C (0.315 in/226°F)

4. Check if valve is closed at 5°C (41°F) below valve opening temperature. For details, refer to THERMOSTAT AND WATER CONTROL VALVE .

OK or NG

1. OK: GO TO 14.
2. NG: Replace thermostat.
