5. Check Ground Connections

  1. Turn ignition switch OFF.
  2. Loosen and retighten two ground screws. Refer to GROUND INSPECTION .

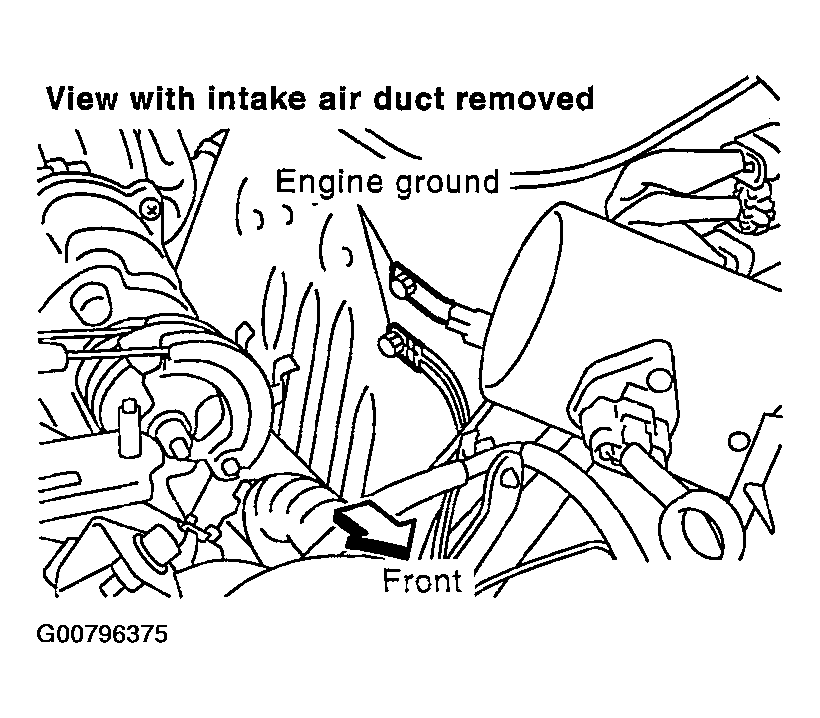

    Fig 1: Identifying Engine Ground Wires
    G00796375Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 6.
  2. NG: Repair or replace ground connections.
