5. Install The Pressure Pump

To locate the EVAP leak, install EVAP service port adapter and pressure pump to EVAP service port securely. For the location of EVAP service port, refer to EVAPORATIVE EMISSION LINE DRAWING .

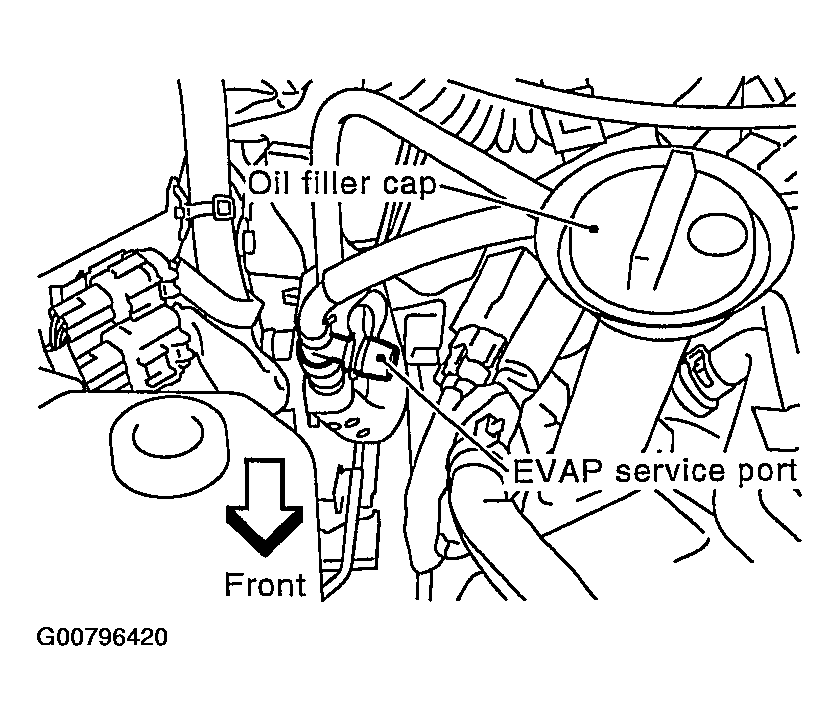

Fig 1: Identifying EVAP Service Port

Courtesy of NISSAN MOTOR CO., U.S.A.

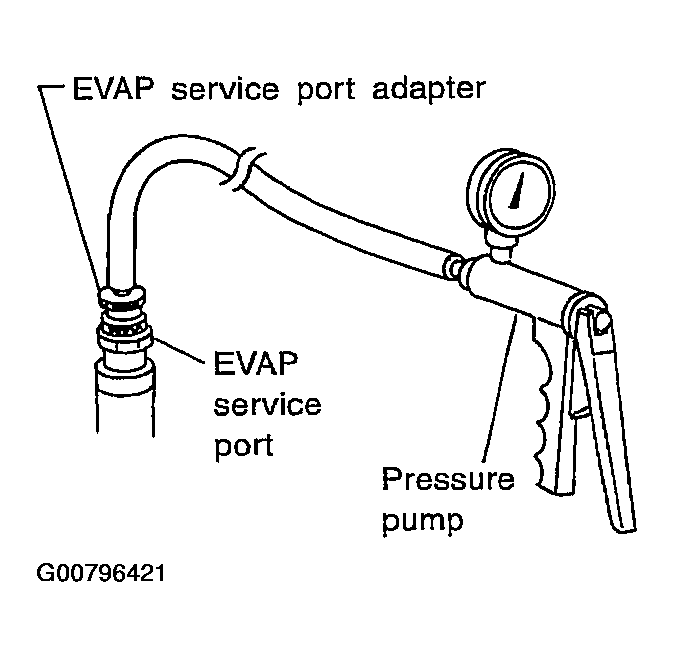

Fig 2: Identifying EVAP Service Port Adapter & Pump

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Improper installation of the EVAP service port adapter to the EVAP service port may cause leaking.

With CONSULT-II: GO TO 6.

Without CONSULT-II: GO TO 7. CHECK FOR EVAP LEAK .
