Cooling Fan Speed Control Solenoid Valve

Check resistance between cooling fan speed control solenoid valve terminals 1 and 2.

Resistance: Approximately 8Ω [at 20°C (68°F)]

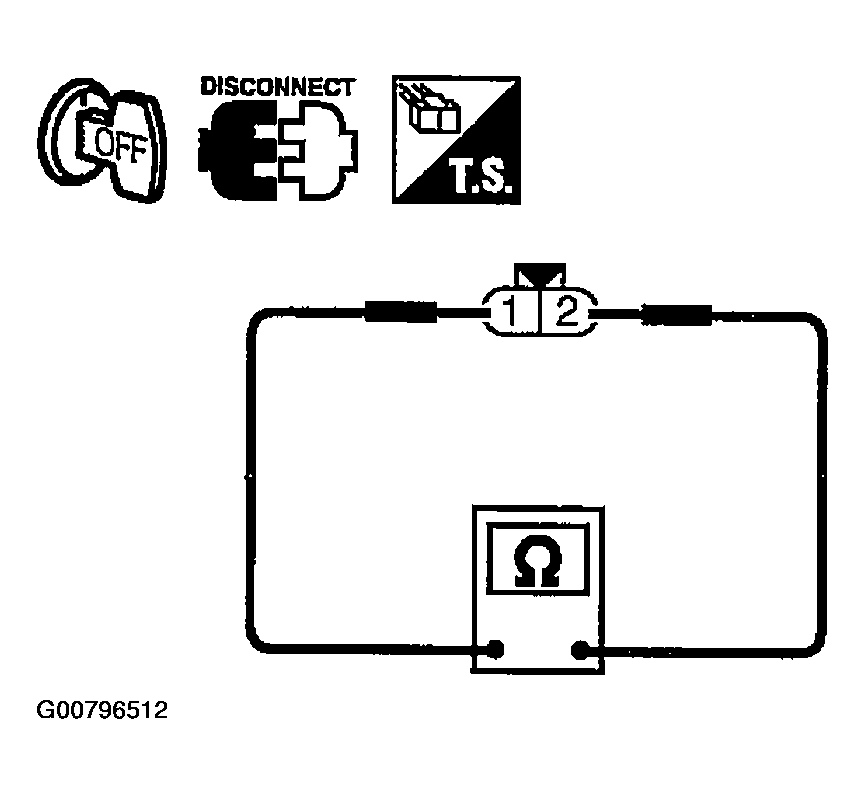

Fig 1: Checking Resistance Between Cooling Fan Speed Control Solenoid Valve Terminals 1 & 2
G00796512Courtesy of NISSAN MOTOR CO., U.S.A.
