DTC U1000, U1001: Can Communication Line: Wiring Diagram

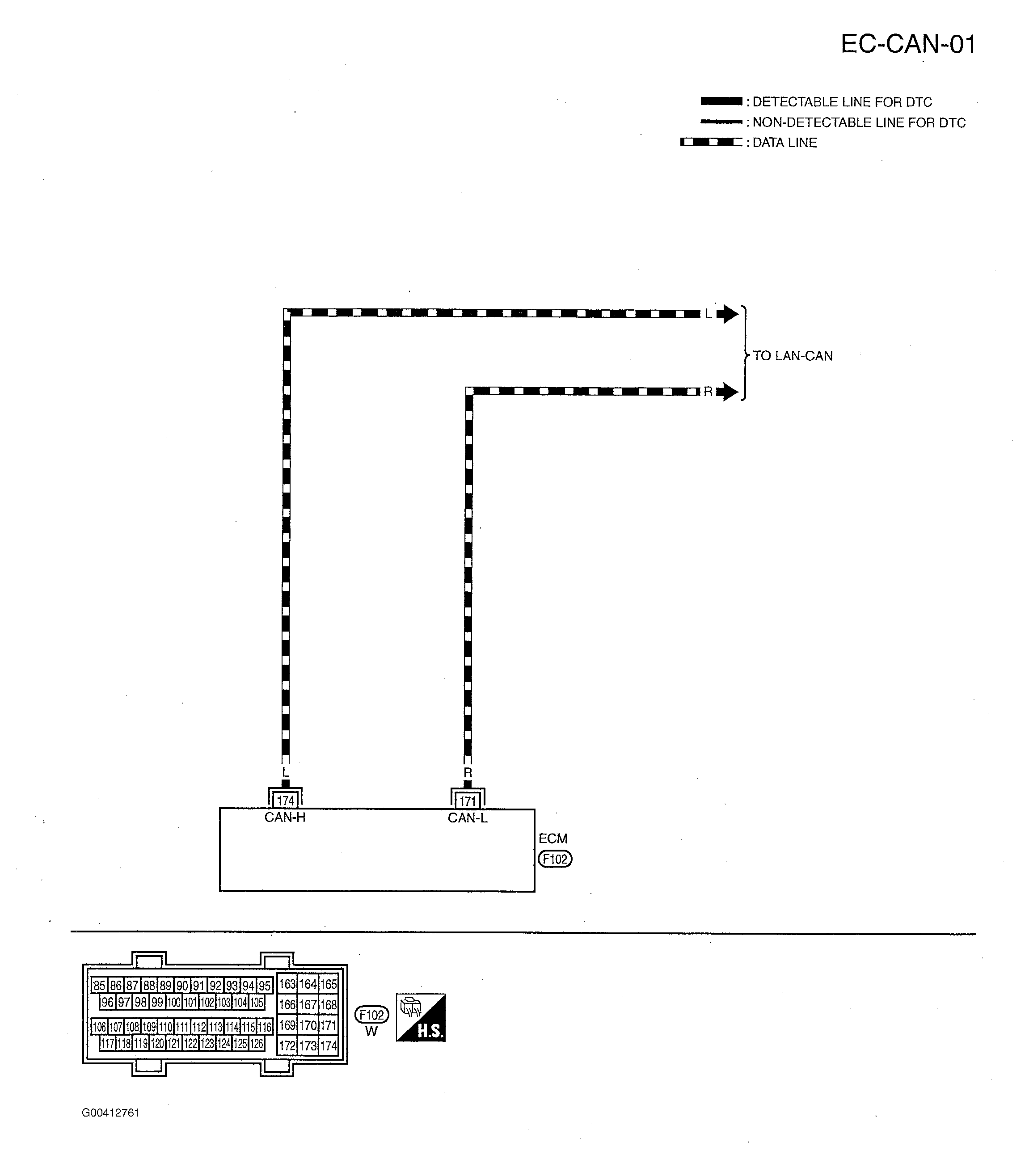

Fig 1: Circuit Diagram - CAN Communication Line - EC-CAN-01
G00412761Courtesy of NISSAN MOTOR CO., U.S.A.
