Power Supply And Ground Circuit: Wiring Diagram

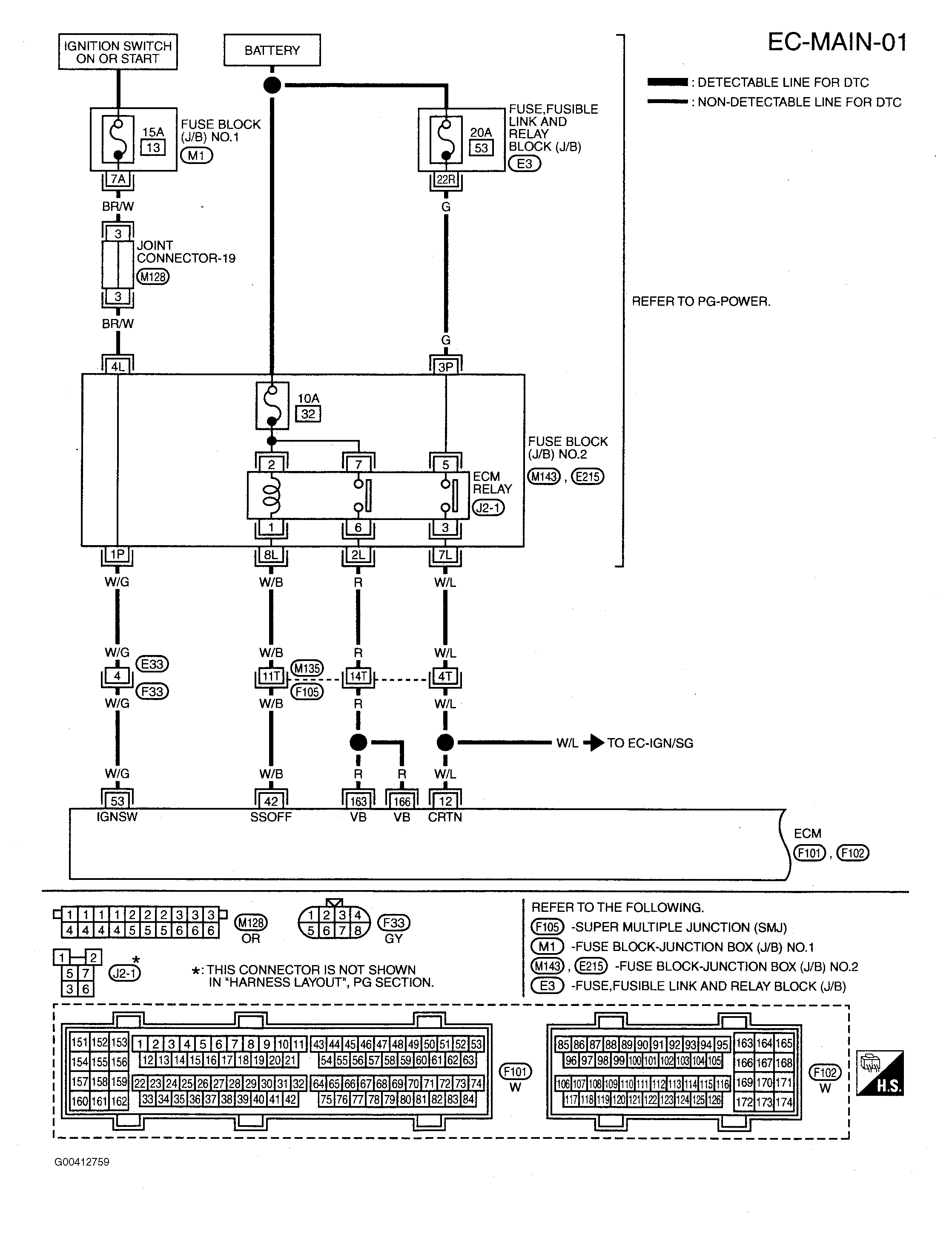

Fig 1: Circuit Diagram - Power Supply And Ground (1 Of 2) - EC-MAIN-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

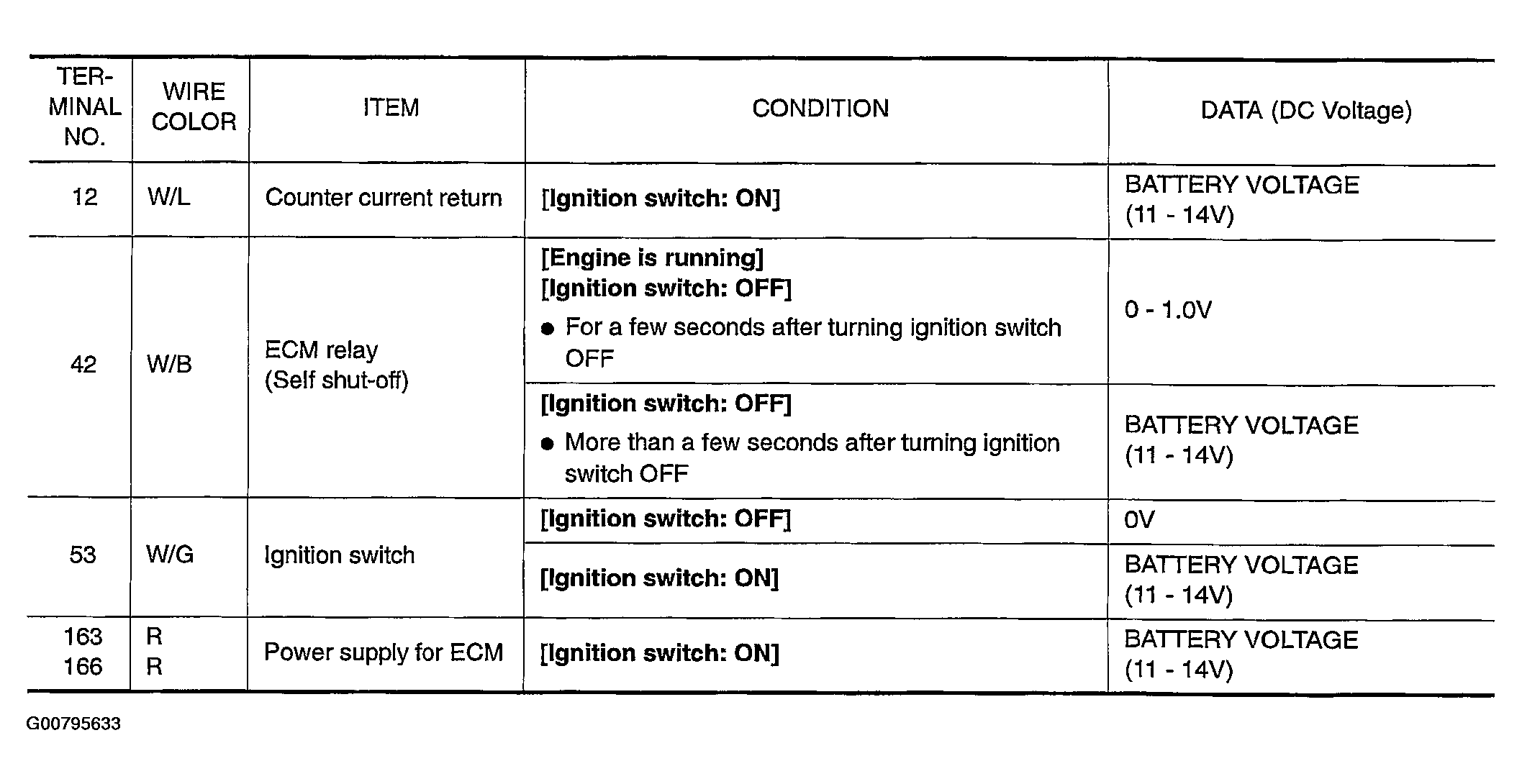

Fig 2: Terminal Testing & Conditions Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

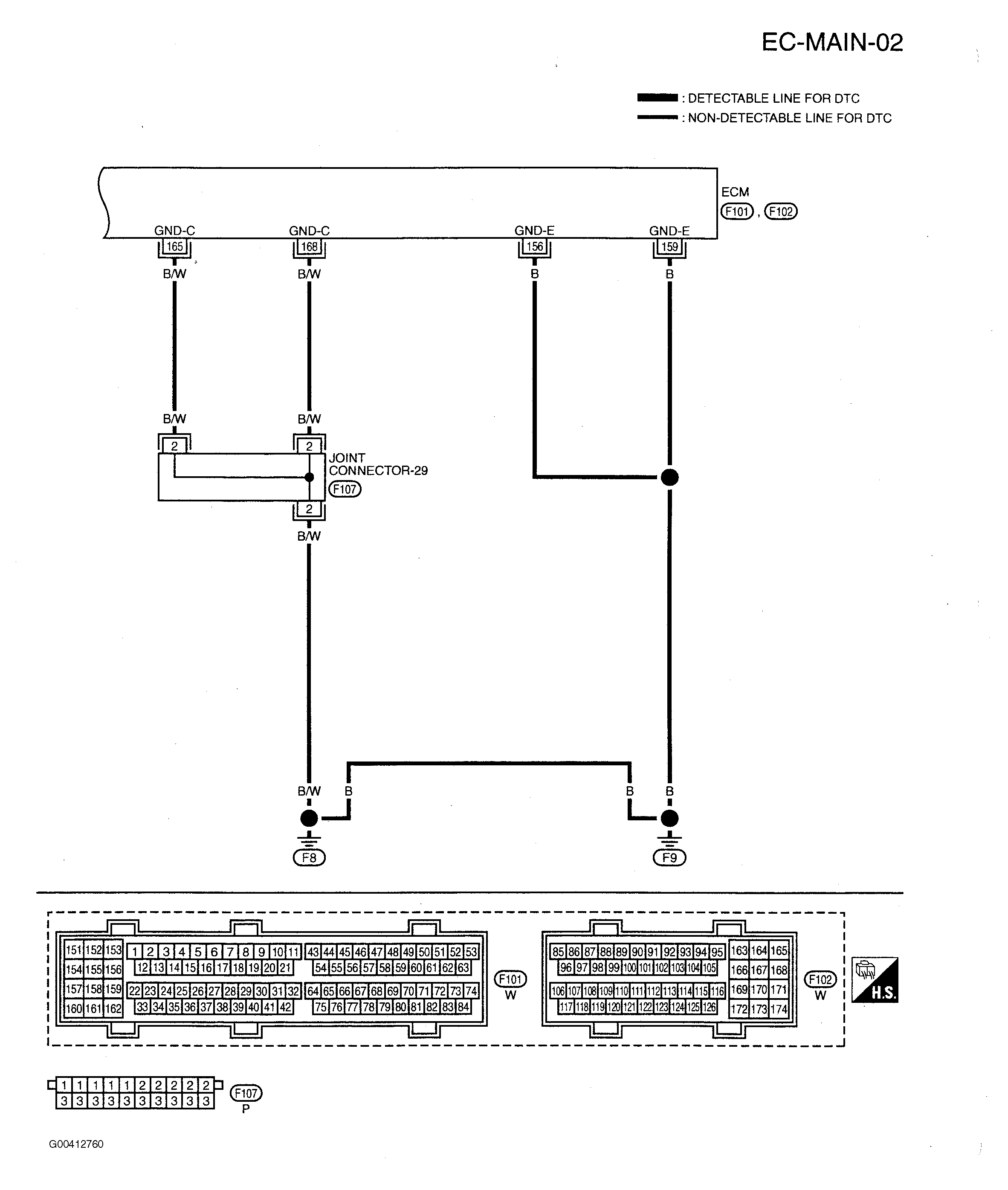

Fig 3: Circuit Diagram - Power Supply And Ground (2 Of 2) - EC-MAIN-02

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

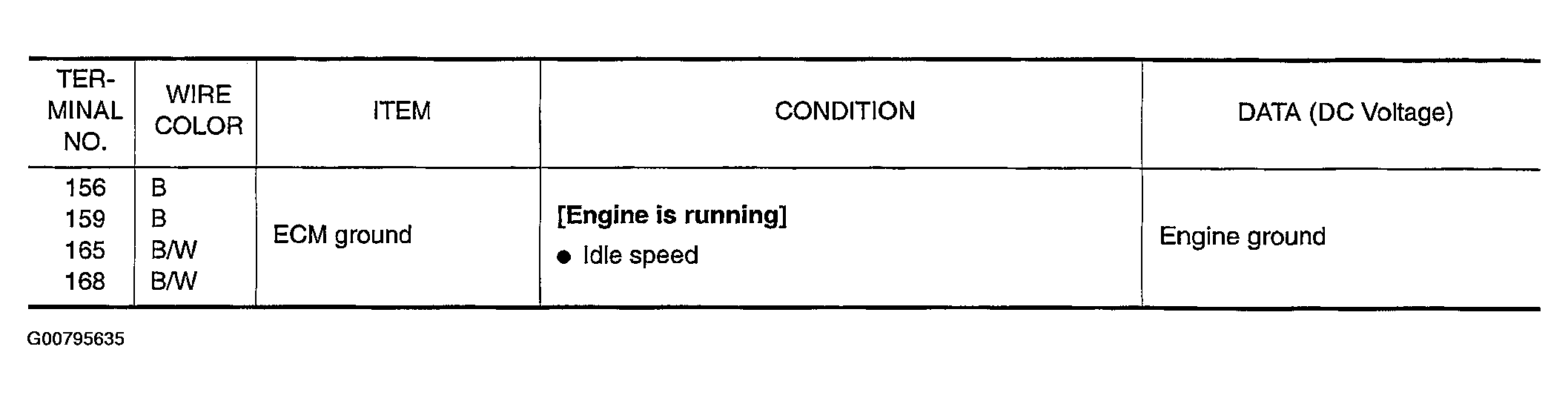

Fig 4: Terminal Testing & Conditions Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
