Worksheet Sample

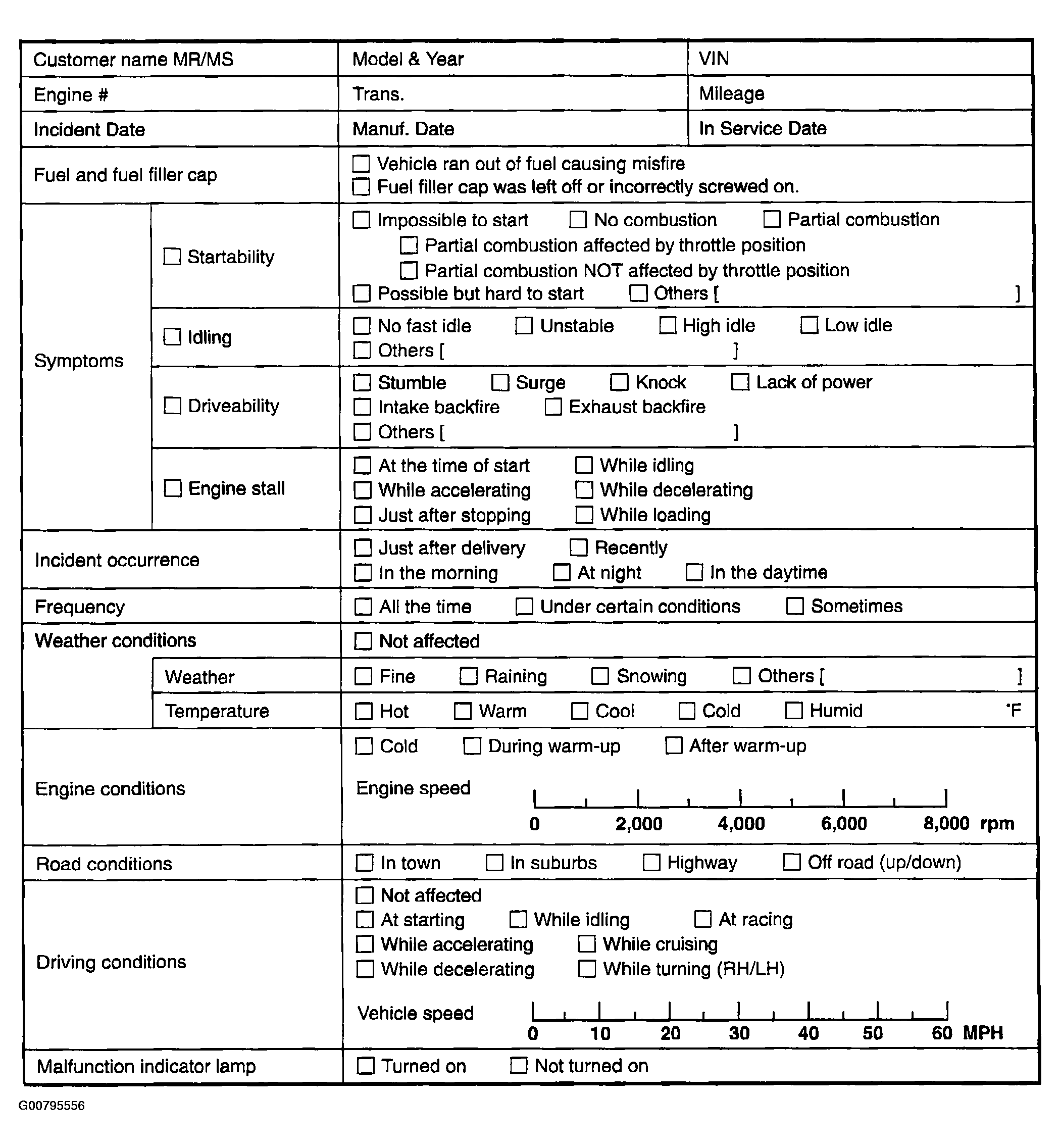

Fig 1: Identifying Diagnostic Worksheet
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
