Removal And Installation

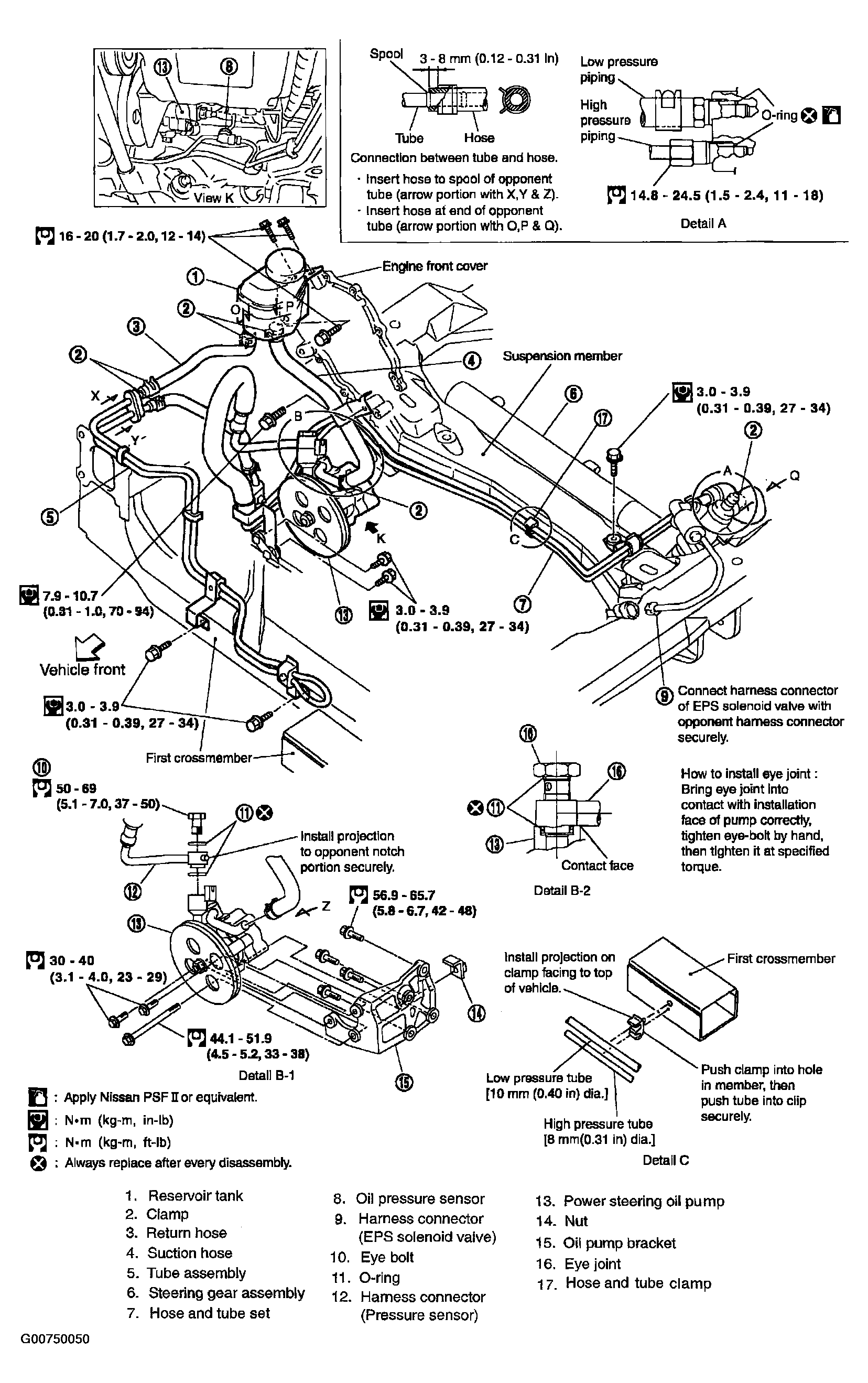

Fig 1: Removing & Installing Hydraulic Line
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
