Disassembly And Assembly: Notes

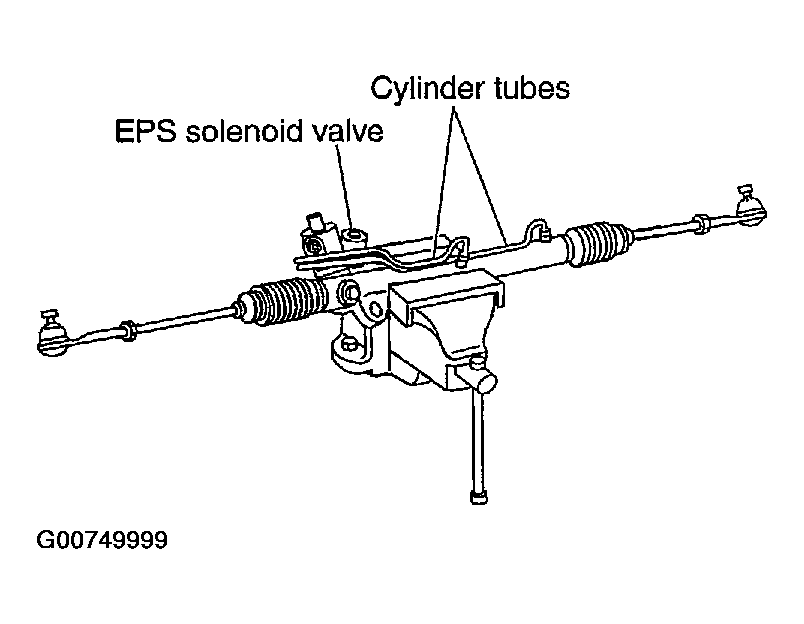

Fig 1: Disassembling & Assembling Power Steering

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Secure steering gear with a vise, using copper plates or something similar to prevent it from being damaged. Do not grip cylinder with a vise.
Before performing disassembly, clean power steering gear with kerosene. Be careful not to bring any kerosene into contact with the discharge and return port connectors.

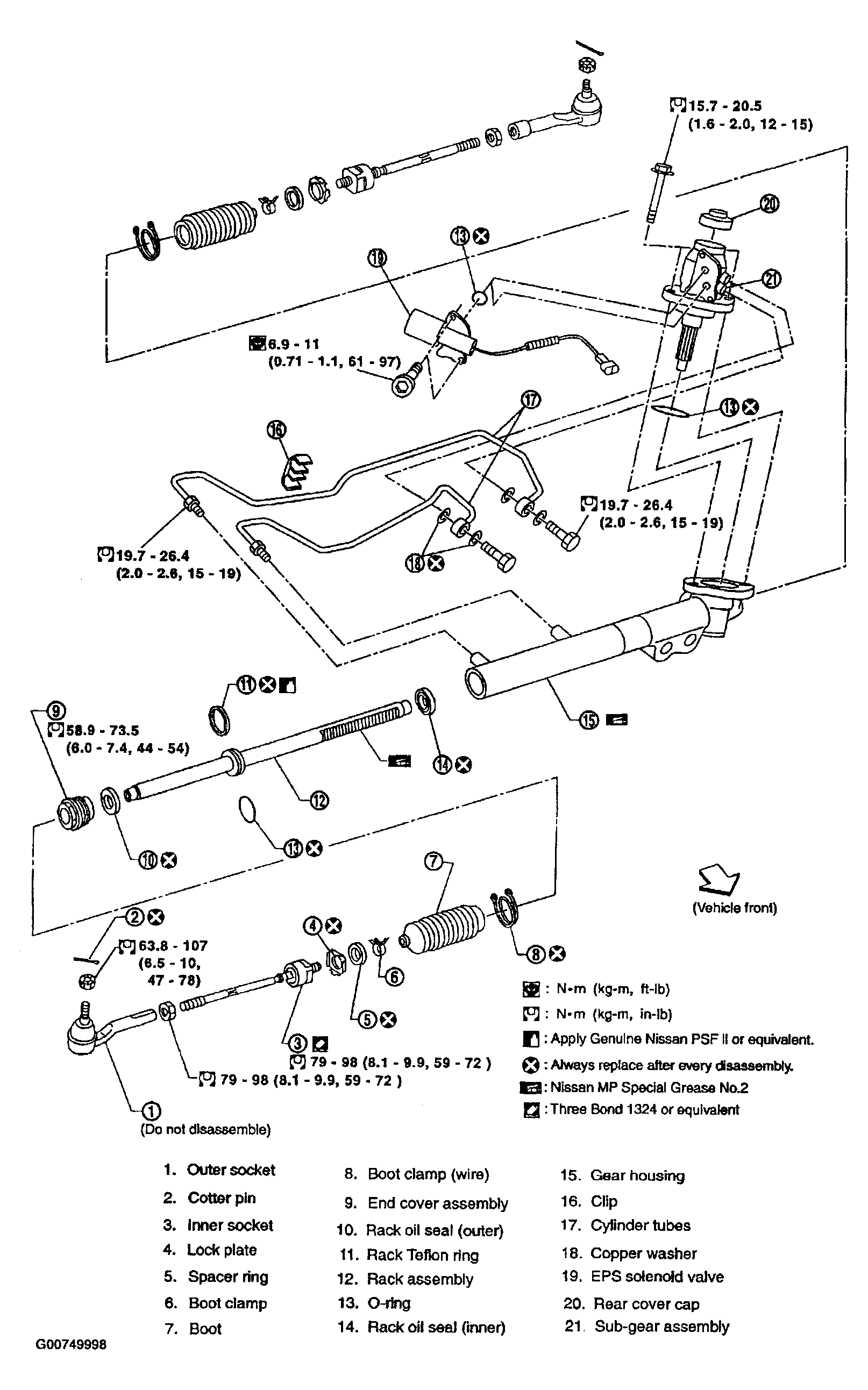

Fig 2: Disassembling Steering Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
