Steering Linkage

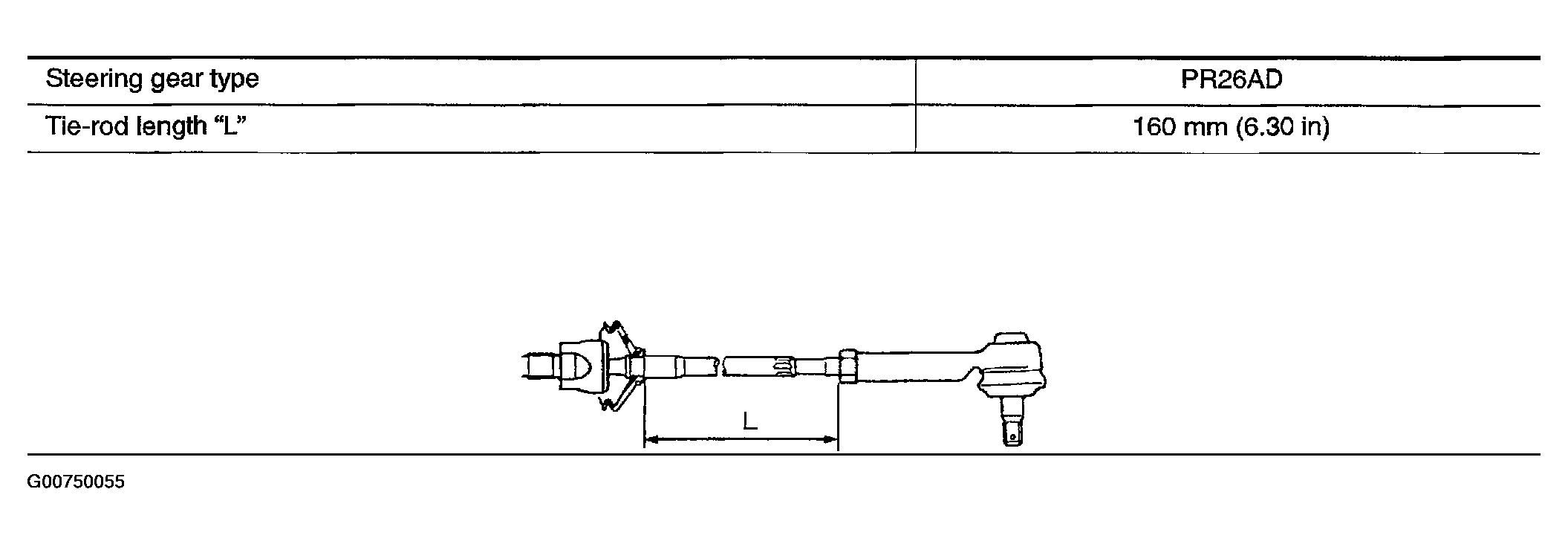

Fig 1: Reviewing Steering Linkage Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

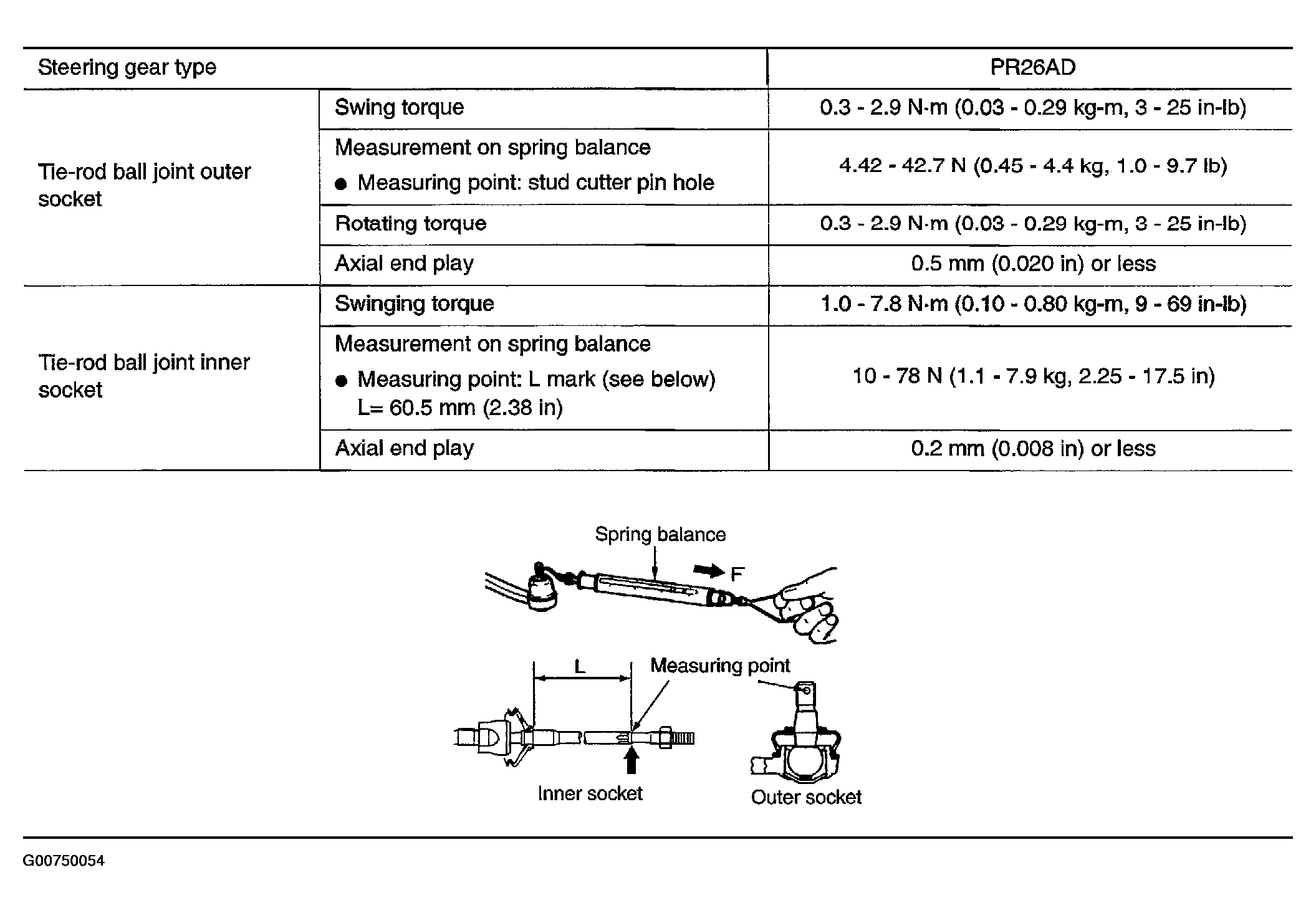

Fig 2: Reviewing Steering Linkage Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
