Clutch And Band Chart

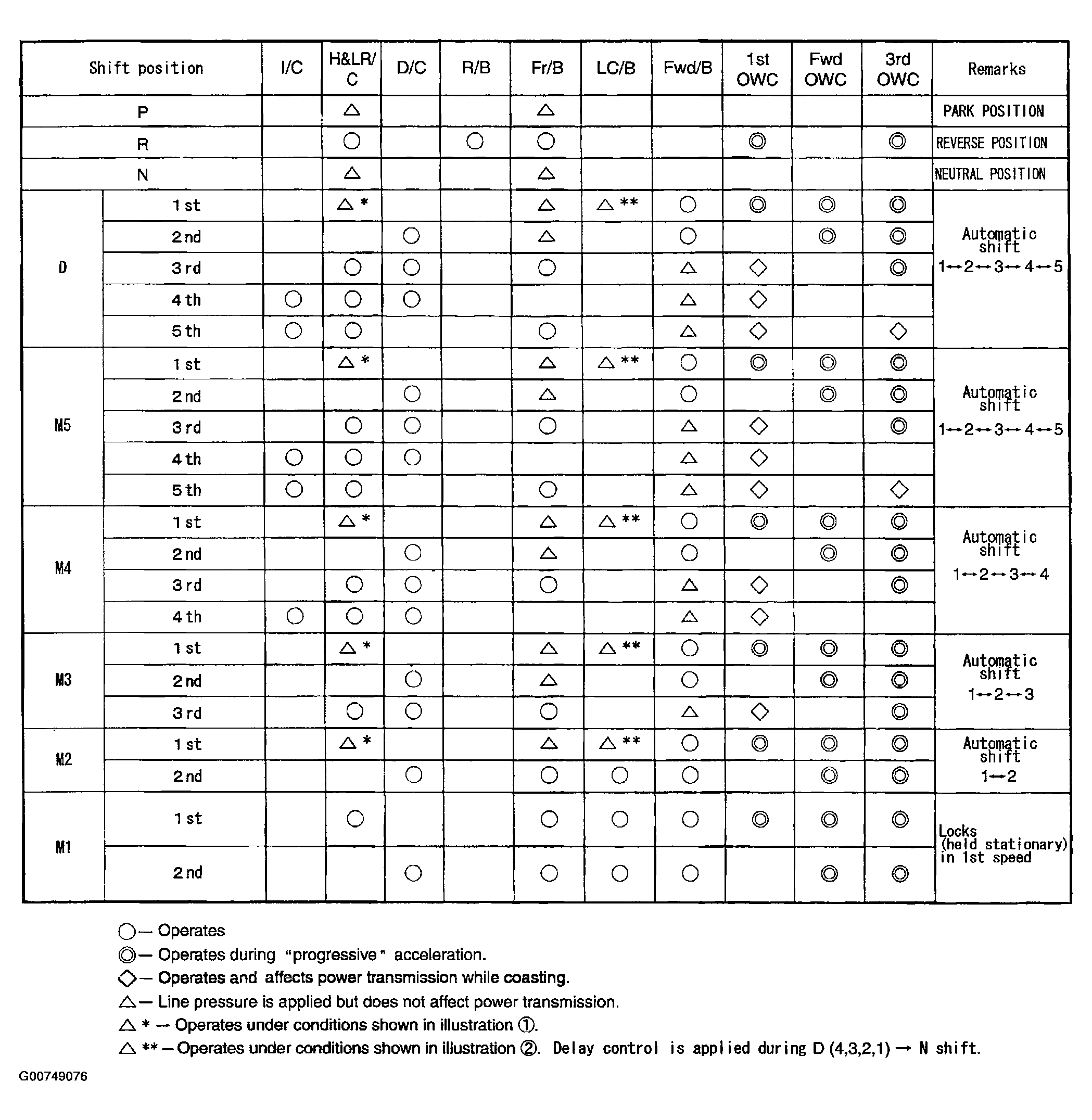

Fig 1: Clutch & Band Applications (1 Of 2)
G00749076Courtesy of NISSAN MOTOR CO., U.S.A.

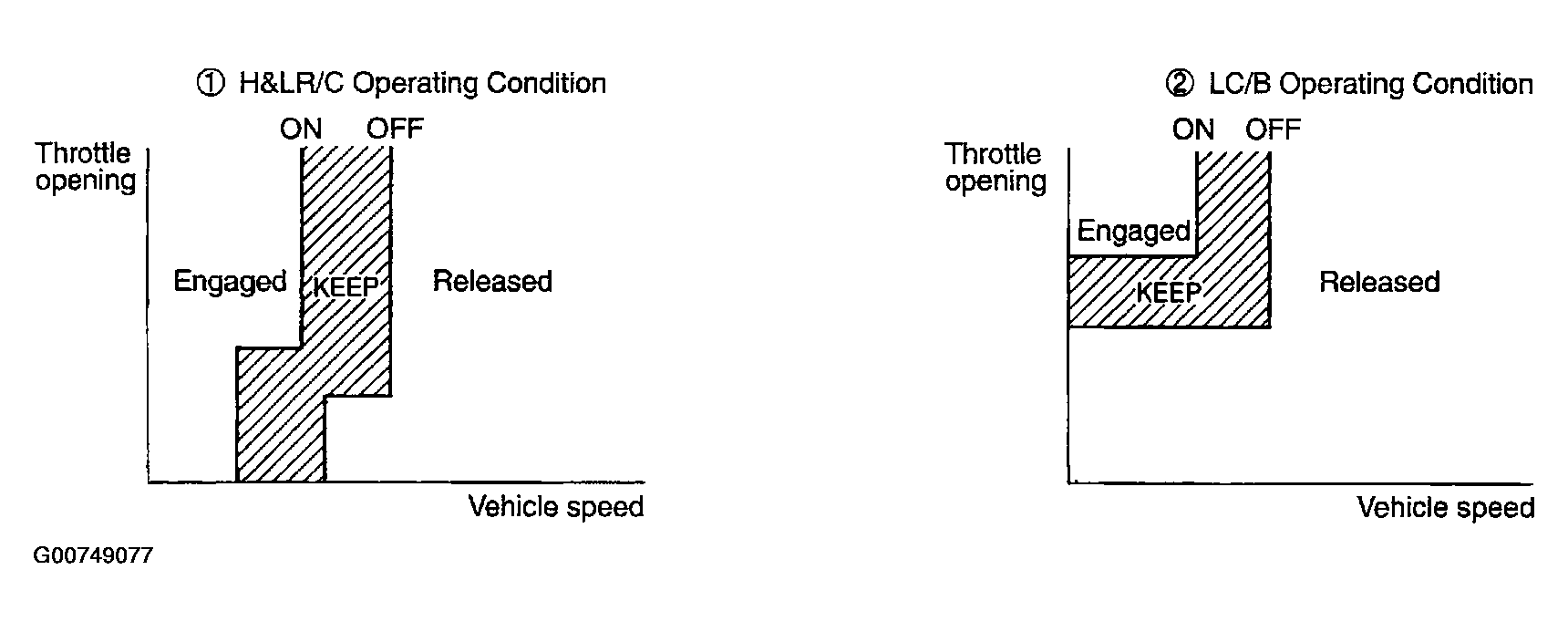

Fig 2: Clutch & Band Applications (2 Of 2)
G00749077Courtesy of NISSAN MOTOR CO., U.S.A.
