Function Of Clutch And Brake

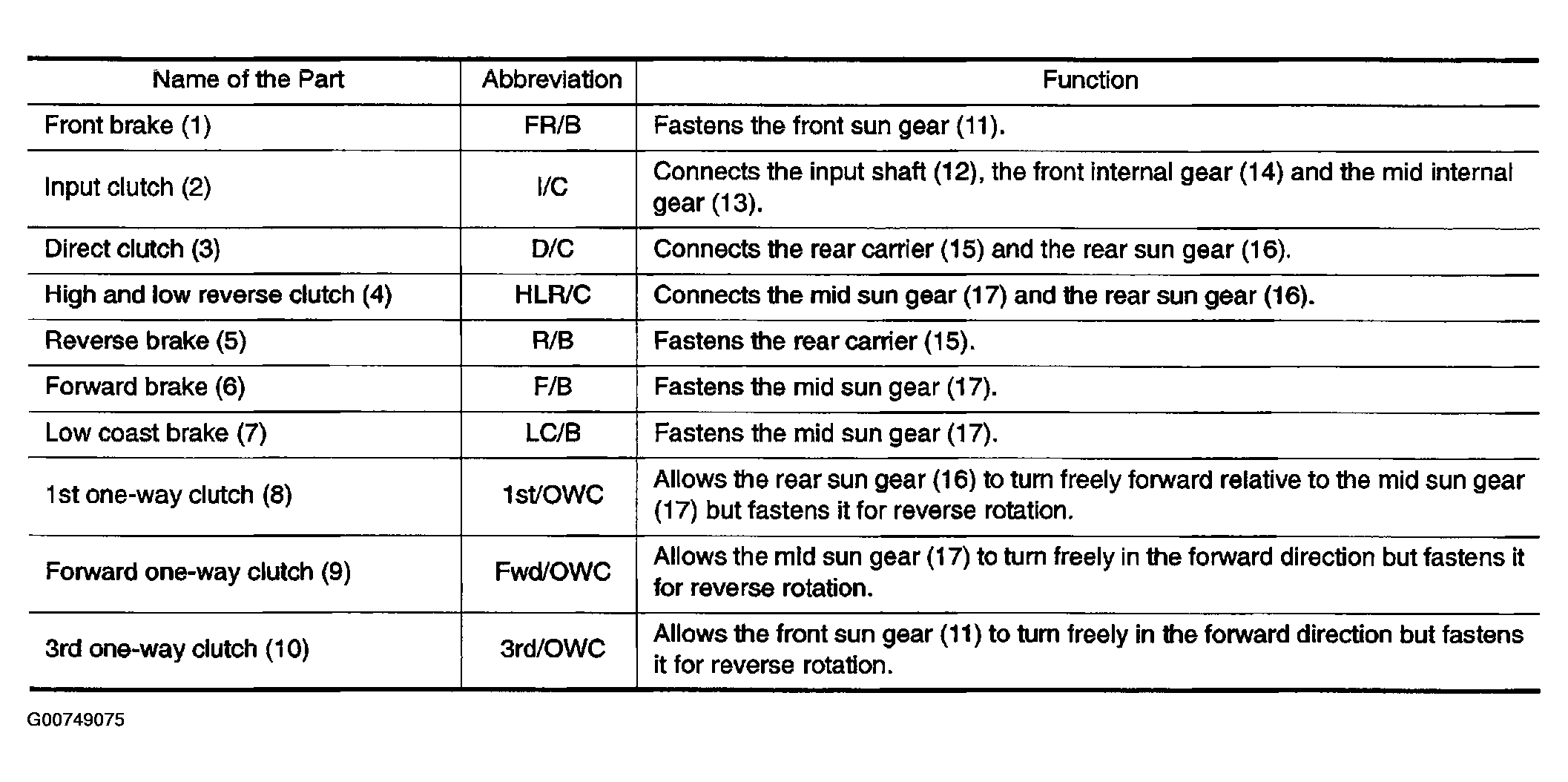

Fig 1: Shift Mechanism Component Function
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
