Diagnostic Procedure

Check DTC
With CONSULT-II:
1. Turn ignition switch ON. (Do not start engine.)
2. Select "SELF DIAG RESULTS" mode for "A/T" with CONSULT-II.

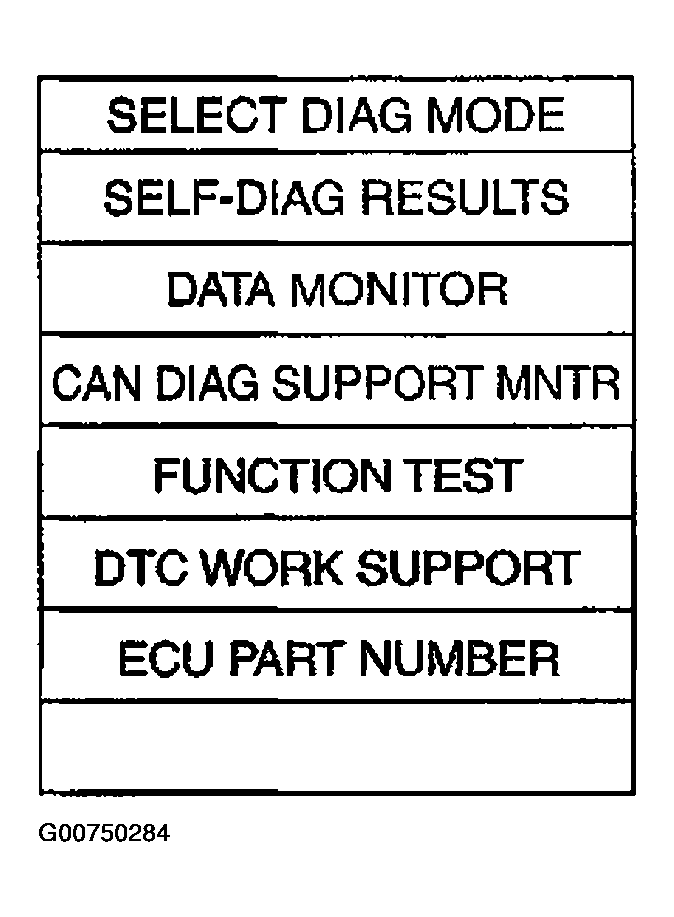

  Fig 1: Selecting "SELF DIAG RESULTS" On CONSULT-II Screen
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Touch "ERASE".
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Perform DTC confirmation procedure, . " DTC CONFIRMATION PROCEDURE " .
Is the "TCM.RAM" displayed again?
1. YES : Replace TCM.
2. NO : Inspection end.
