Manual Mode Switch

Check continuity between terminals.

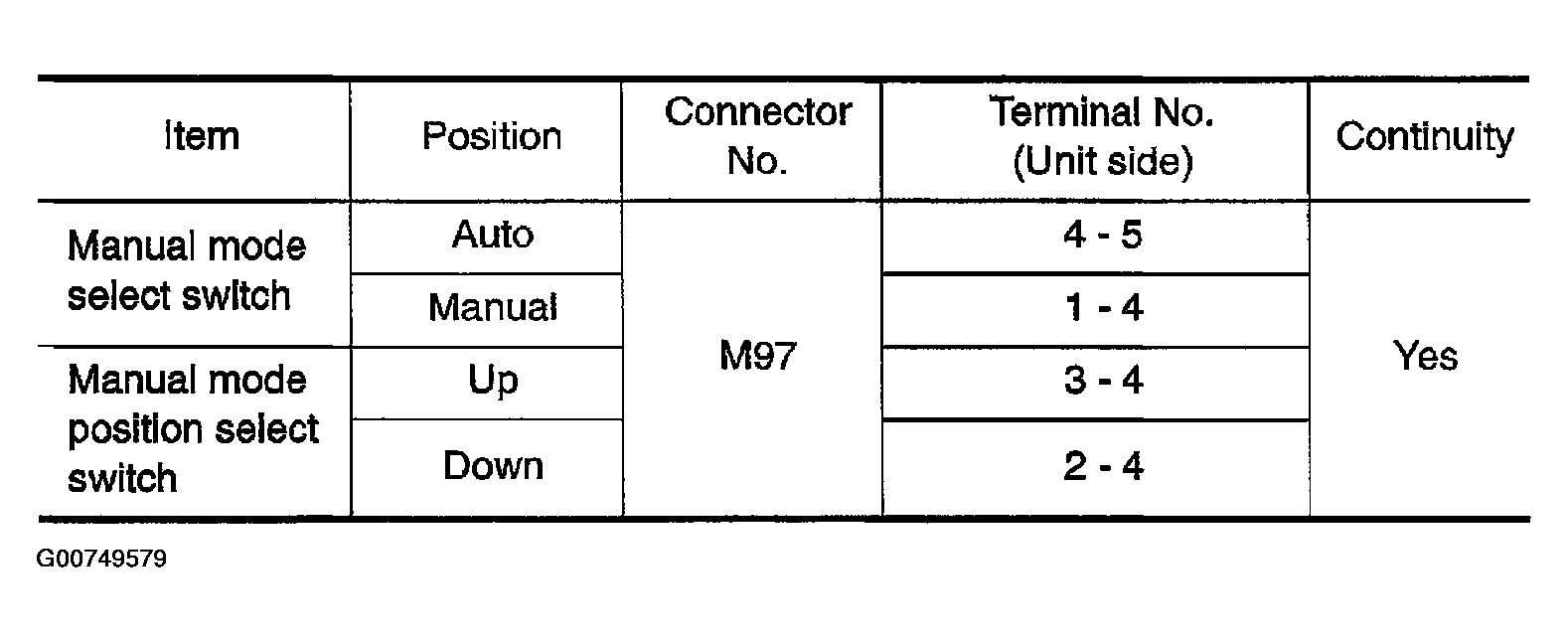

Fig 1: Continuity Specifications Chart
G00749579Courtesy of NISSAN MOTOR CO., U.S.A.

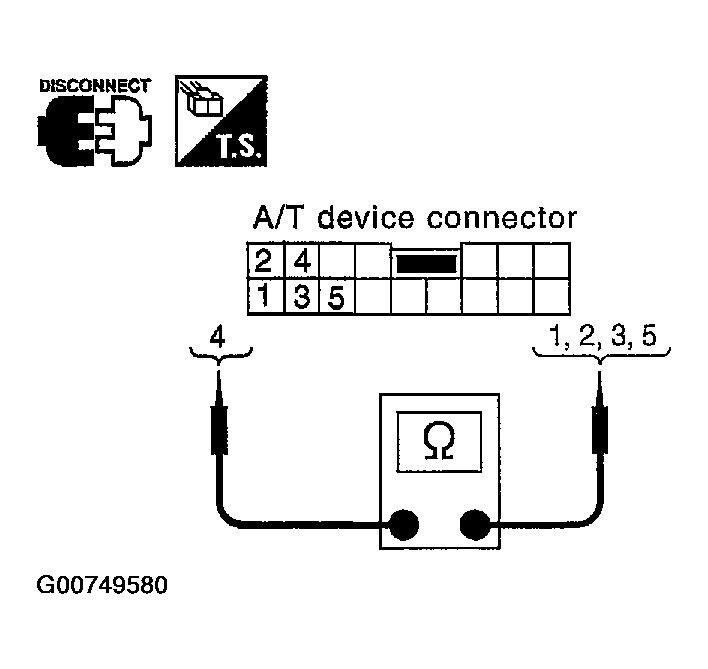

Fig 2: Testing Procedures
G00749580Courtesy of NISSAN MOTOR CO., U.S.A.
