Consult-II Reference Value In Data Monitor Mode

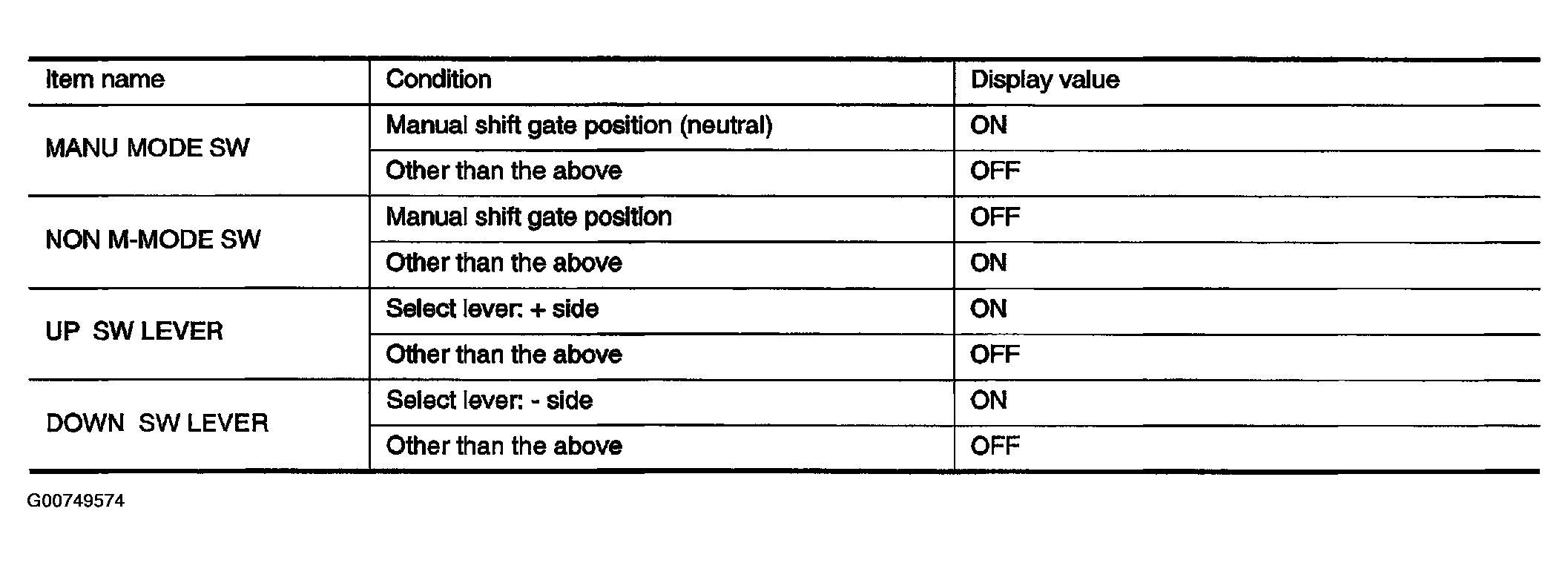

Fig 1: Consult-II Reference Value For DTC P1815 Manual Mode Switch
G00749574Courtesy of NISSAN MOTOR CO., U.S.A.
