Parking Components: Inspection

If the contact surface on parking actuator support, parking pawl, etc. has excessive wear, abrasion, bend, or any other damage, replace the components.

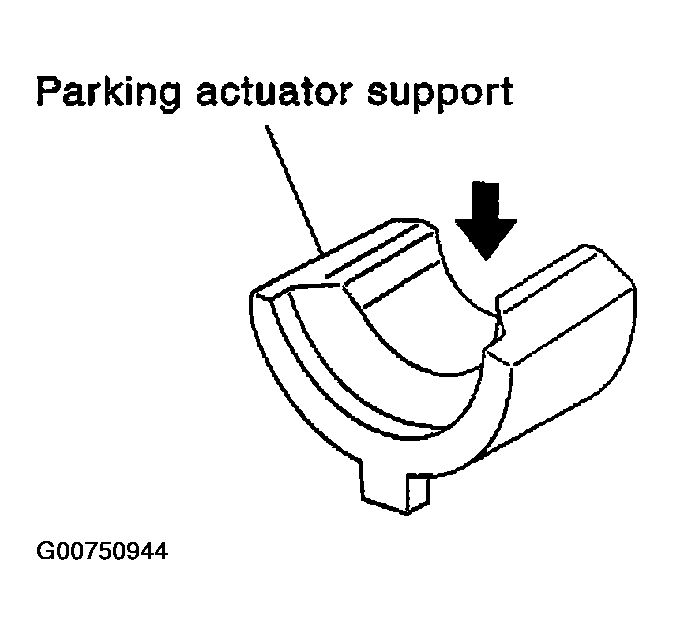

Fig 1: Identifying Parking Actuator Support Contact Surface
Courtesy of NISSAN MOTOR CO., U.S.A.

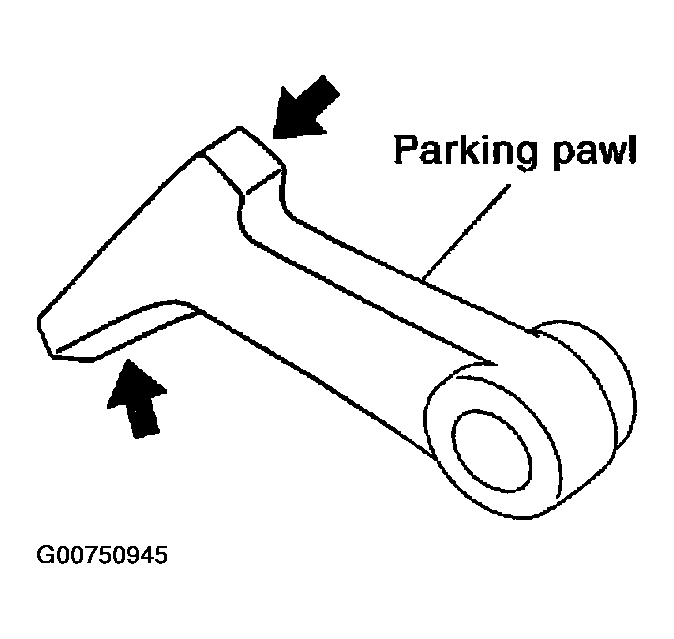

Fig 2: Identifying Parking Pawl Contact Surfaces
Courtesy of NISSAN MOTOR CO., U.S.A.
