Parking Components: Removal

Drain ATF through drain plug.
Remove exhaust front tube and center muffler with power tool. Refer to " REMOVAL AND INSTALLATION " .
Remove propeller shaft. Refer to " REMOVAL AND INSTALLATION " .
Support transmission assembly with a transmission jack.
CAUTION: When setting transmission jack, be careful not to allow it to collide against the drain plug.

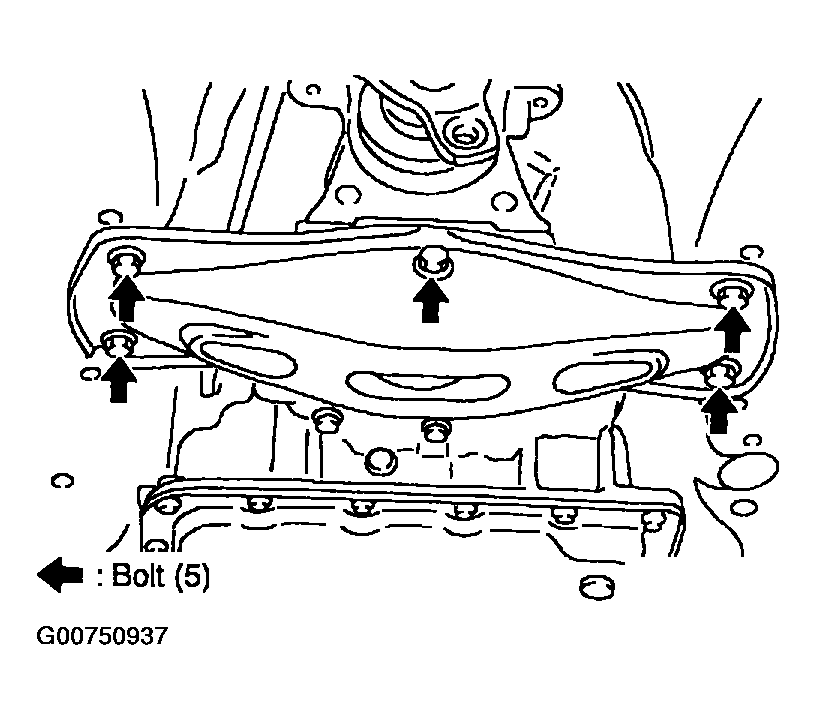

Remove engine rear member with power tool. Refer to "Removal and Installation" . See REMOVAL AND INSTALLATION .

Fig 1: Locating Engine Rear Member Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

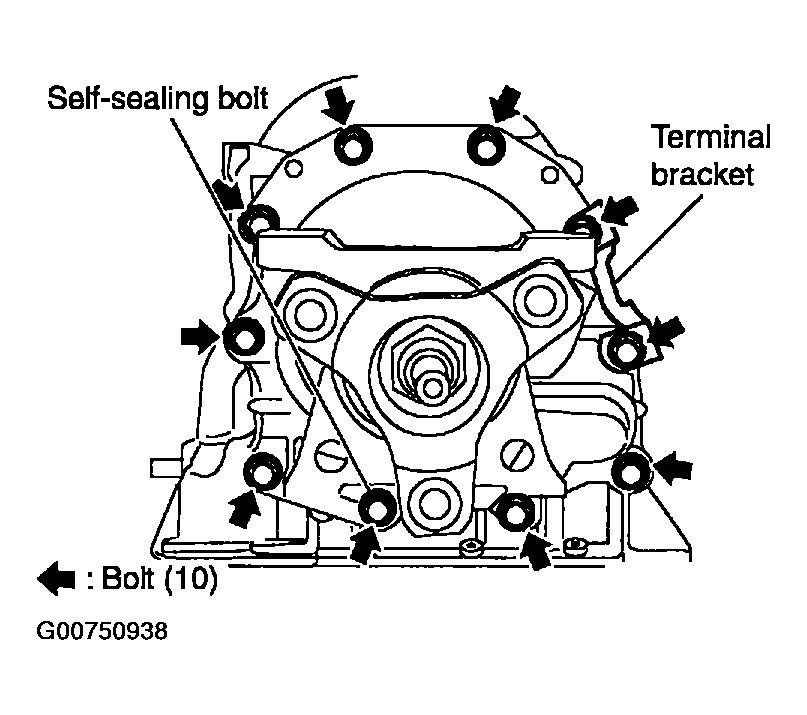

Remove tightening bolts for output shaft & companion flange complement and transmission case. (With terminal bracket)

Fig 2: Locating Output Shaft, Companion Flange & Transmission Case Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

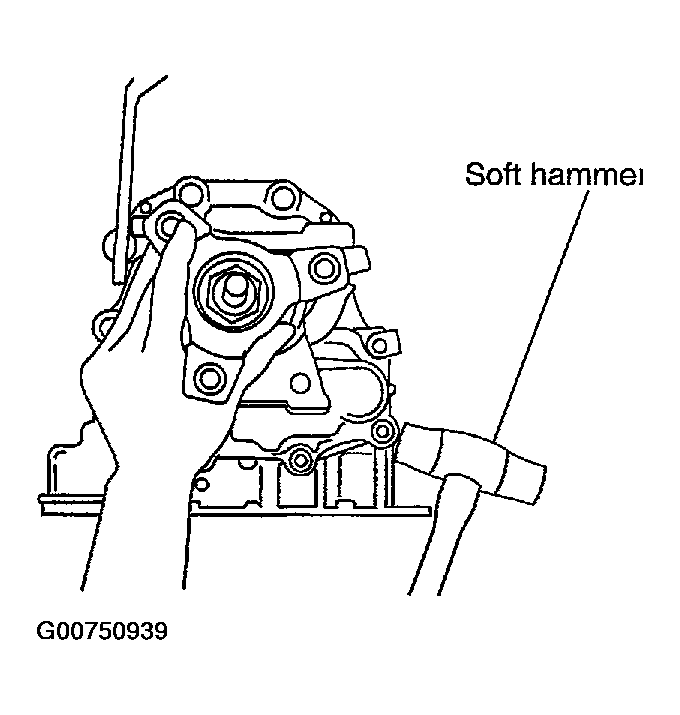

Tap output shaft & companion flange complement with soft hammer.

Fig 3: Loosening Output Shaft & Companion Flange
Courtesy of NISSAN MOTOR CO., U.S.A.

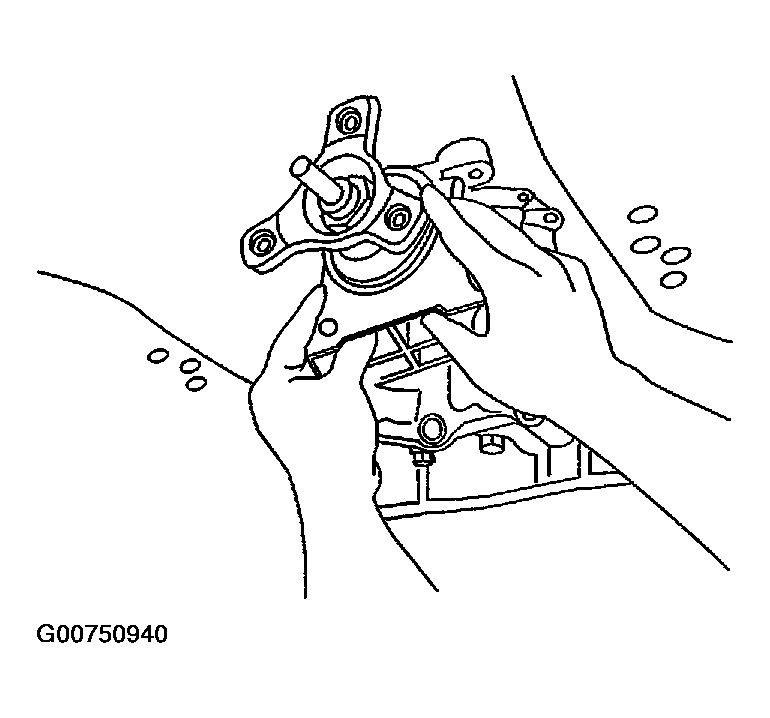

Remove output shaft & companion flange complement from transmission assembly. (With needle bearing)

Fig 4: Removing & Installing Output Shaft & Companion Flange
Courtesy of NISSAN MOTOR CO., U.S.A.

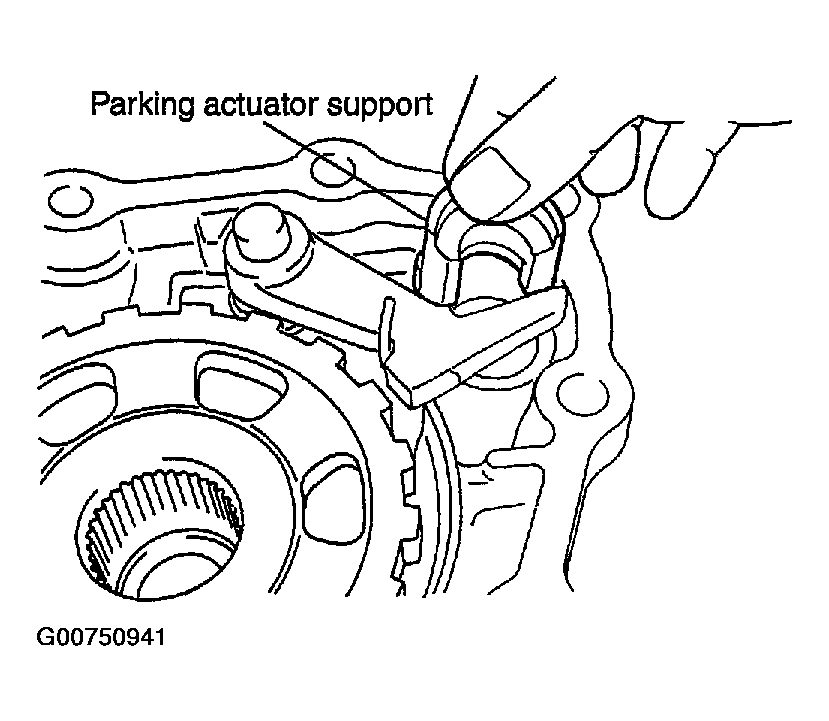

Remove parking actuator support from output shaft & companion flange complement.

Fig 5: Removing & Installing Parking Actuator Support
Courtesy of NISSAN MOTOR CO., U.S.A.

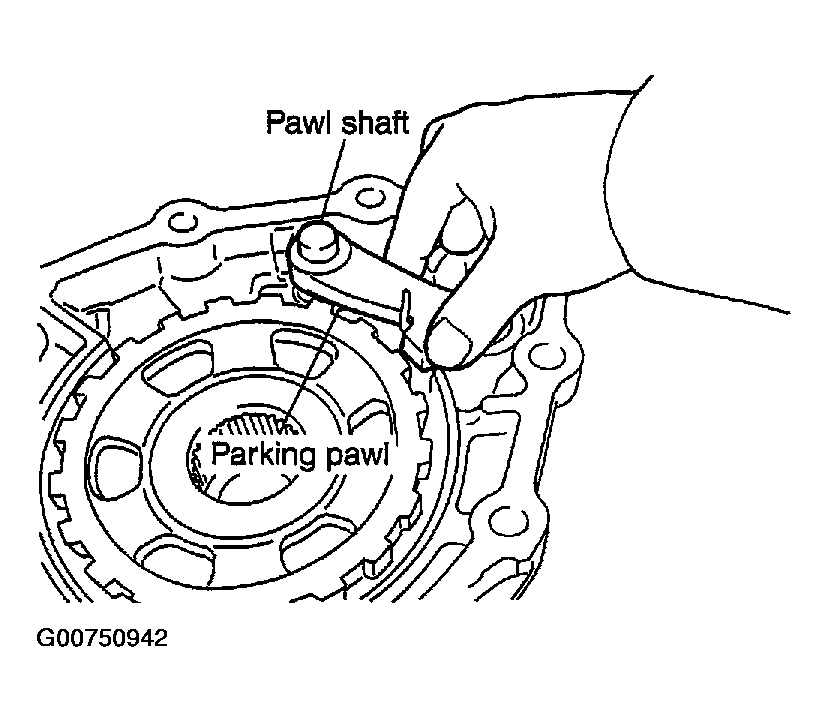

Remove parking pawl, parking pawl shaft and return spring from output shaft & companion flange complement.

Fig 6: Locating Parking Pawl & Parking Pawl Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

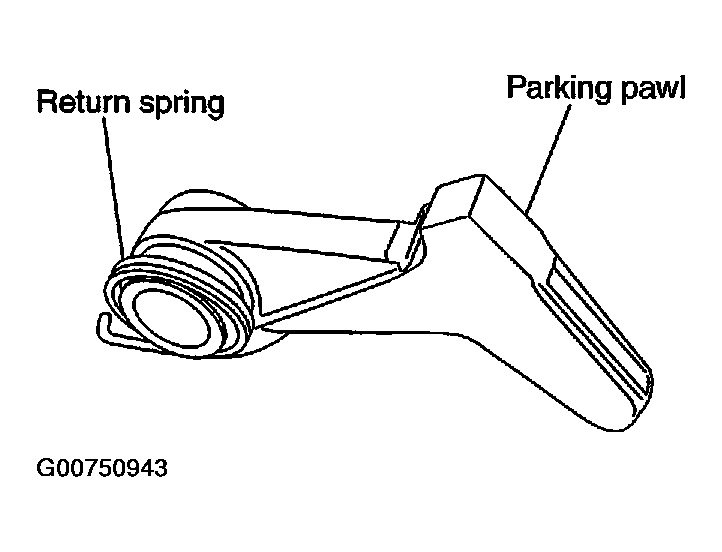

Remove return spring from parking pawl.

Fig 7: Identifying Parking Pawl & Return Spring
