Revolution Sensor: Removal

  1. Disconnect the negative battery terminal.
  2. Drain ATF through drain plug.
  3. Remove exhaust front tube and center muffler with power tool. Refer to " REMOVAL AND INSTALLATION  "  .
  4. Remove propeller shaft. Refer to " REMOVAL AND INSTALLATION  "  .
  5. Disconnect heated oxygen sensor 2 harness connector.
  6. Remove oil pan and oil pan gasket.

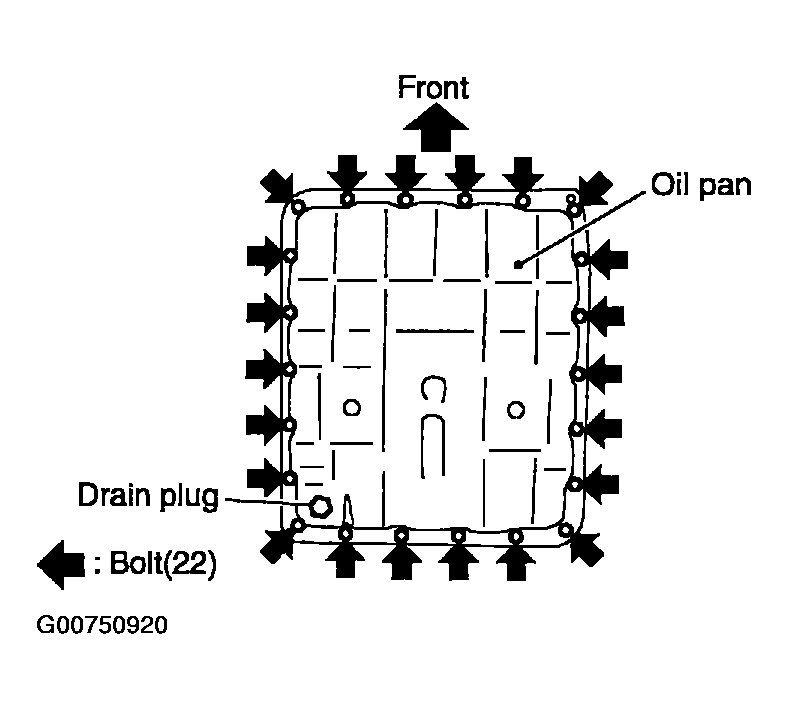

    Fig 1: Locating Oil Pan Bolts & Drain Plug
    G00750920Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Check foreign materials in oil pan to help determine causes of malfunction. If the A/T fluid is very dark, smells burned, or contains foreign particles, the frictional material (clutches, band) may need replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves, servo, and clutches to stick and can inhibit pump pressure.
    • If frictional material is detected, perform A/T fluid cooler cleaning. Refer to A/T FLUID COOLER CLEANING  under A/T FLUID.
  8. Support transmission assembly with a transmission jack.
    CAUTION: Remove setting transmission jack, place wooden blocks to prevent from damaging control valve and transmission case.
  9. Remove engine rear member with power tool. Refer to "Removal and Installation"  . See REMOVAL AND INSTALLATION .

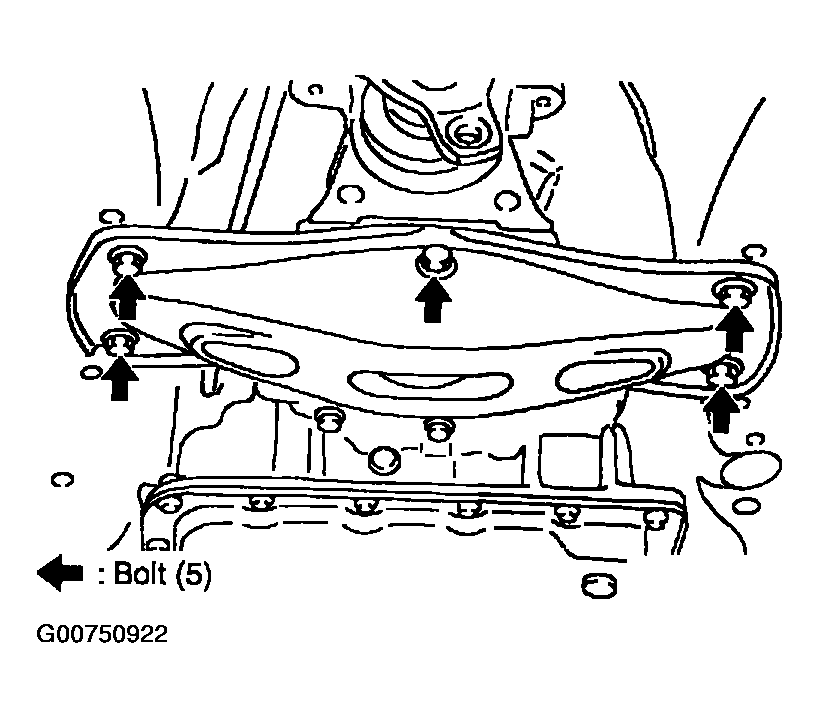

    Fig 2: Locating Engine Rear Member Mounting Bolts
    G00750922Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove tightening bolts for output shaft & companion flange complement and transmission case. (With terminal bracket)

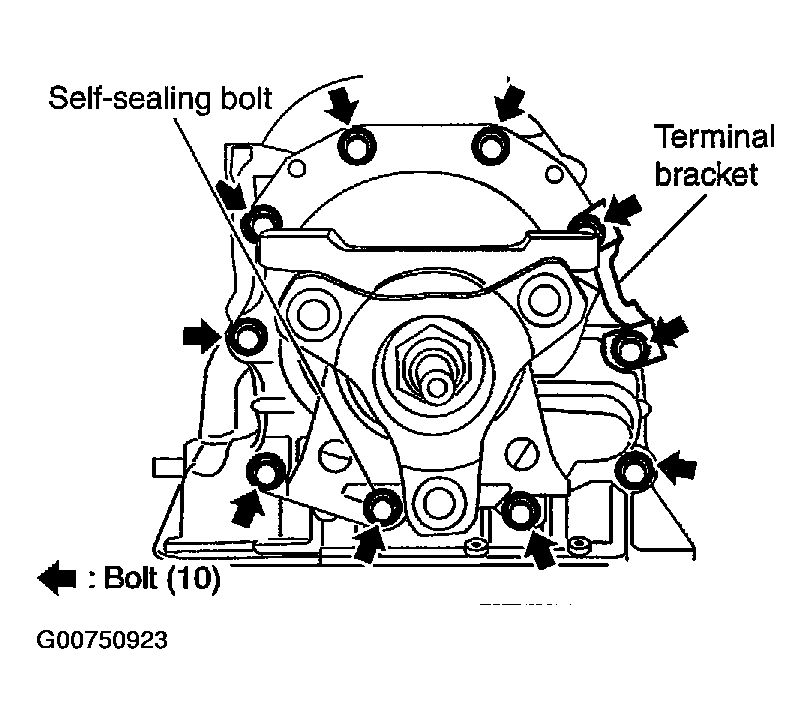

    Fig 3: Locating Output Shaft, Companion Flange & Transmission Case Mounting Bolts
    G00750923Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Tap output shaft & companion flange complement with soft hammer.

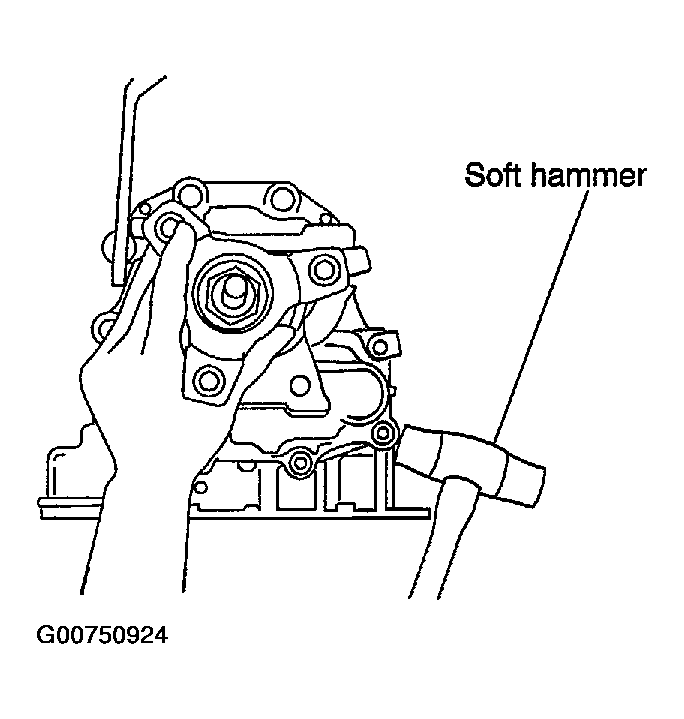

    Fig 4: Loosening Output Shaft & Companion Flange
    G00750924Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Remove output shaft & companion flange complement from transmission assembly. (With needle bearing)

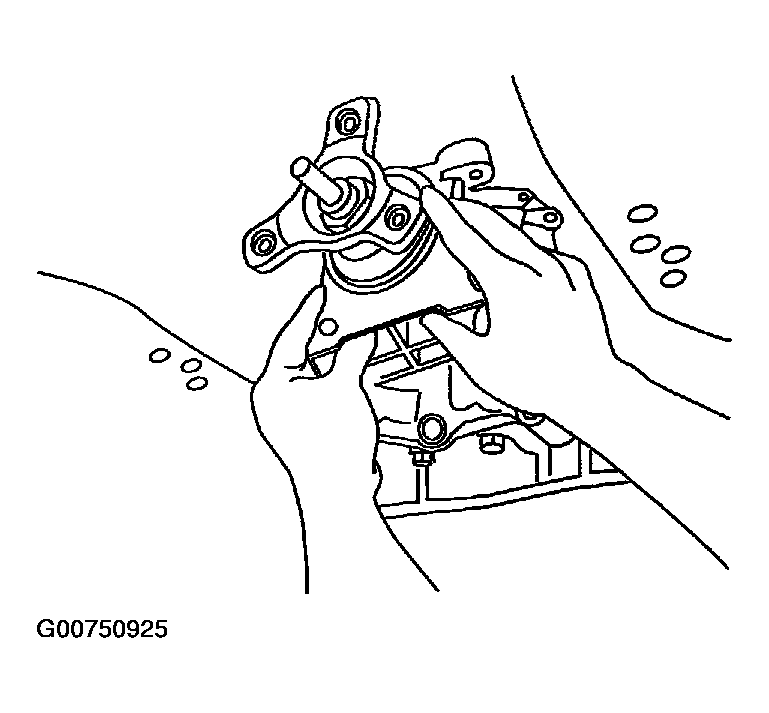

    Fig 5: Removing & Installing Output Shaft & Companion Flange
    G00750925Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove revolution sensor connector.
  14. Straighten terminal clips to free revolution sensor harness then remove terminal clips.

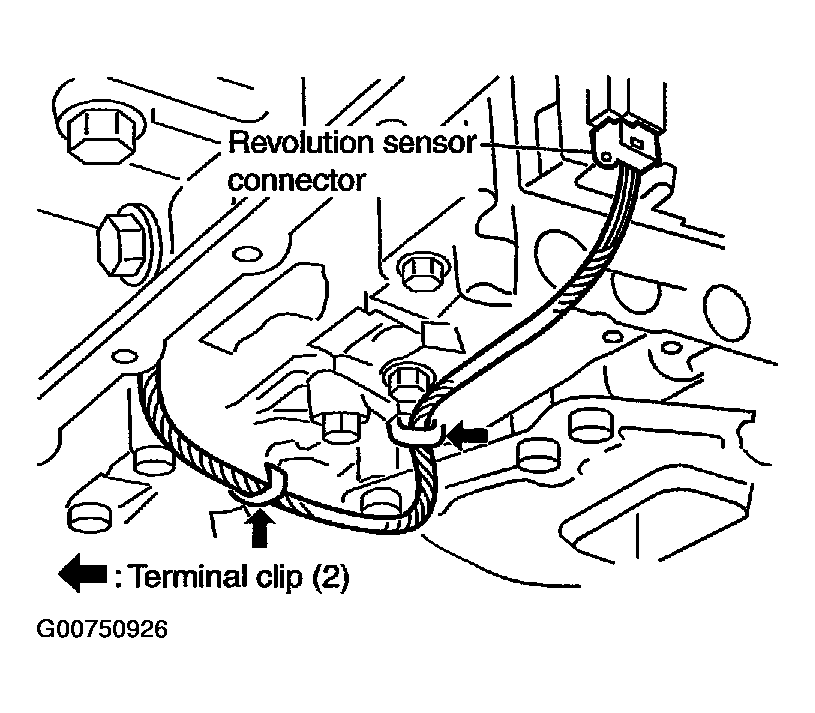

    Fig 6: Locating Terminal Revolution Sensor Harness Clips
    G00750926Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Remove revolution sensor from transmission assembly.
    CAUTION:
    • Do not subject it to impact by dropping or hitting it.
    • Do not disassemble.
    • Do not allow metal filings, etc., to get on the sensor's front edge magnetic area.
    • Do not place in an area affected by magnetism.

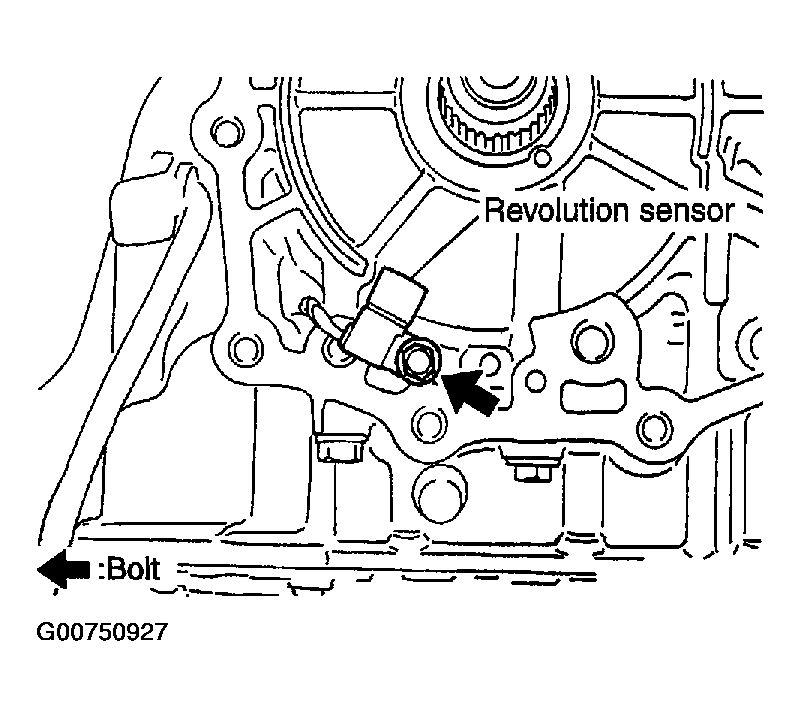

    Fig 7: Locating Revolution Senstor Mounting Bolt
    G00750927Courtesy of NISSAN MOTOR CO., U.S.A.
