Oil Pump: Assembly

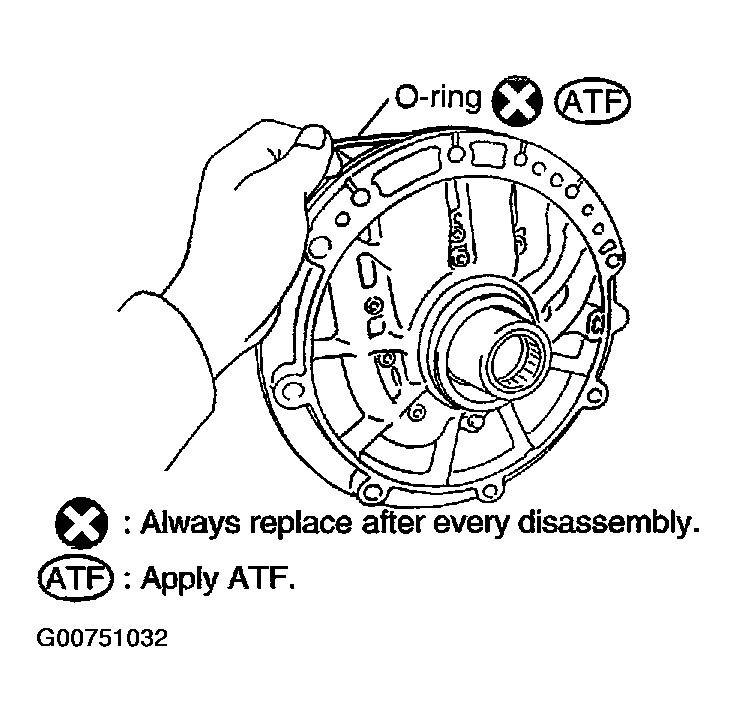

Install O-ring in oil pump cover.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Fig 1: Installing Oil Pump Cover O-ring
Courtesy of NISSAN MOTOR CO., U.S.A.

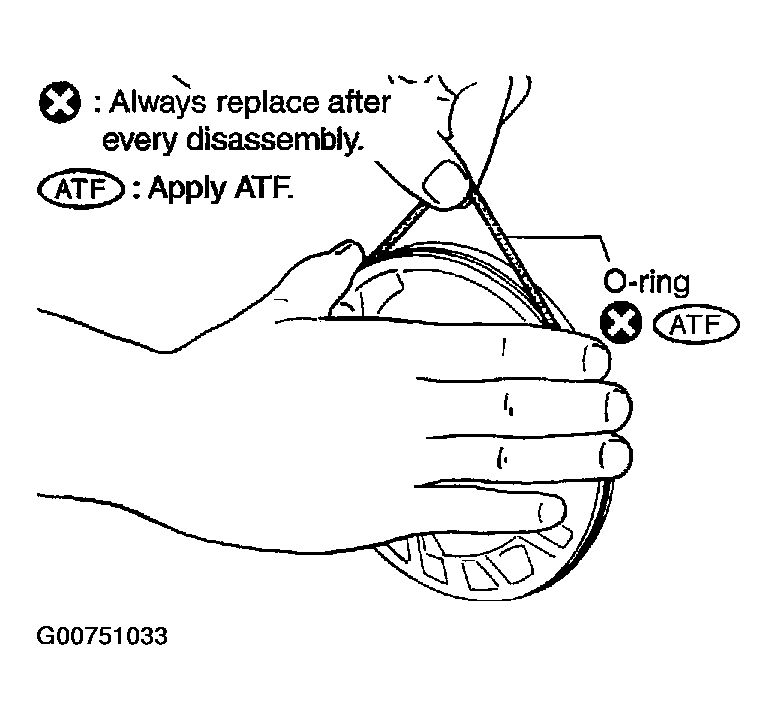

Install O-ring in oil pump housing.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Fig 2: Installing Oil Pump Housing O-ring
Courtesy of NISSAN MOTOR CO., U.S.A.

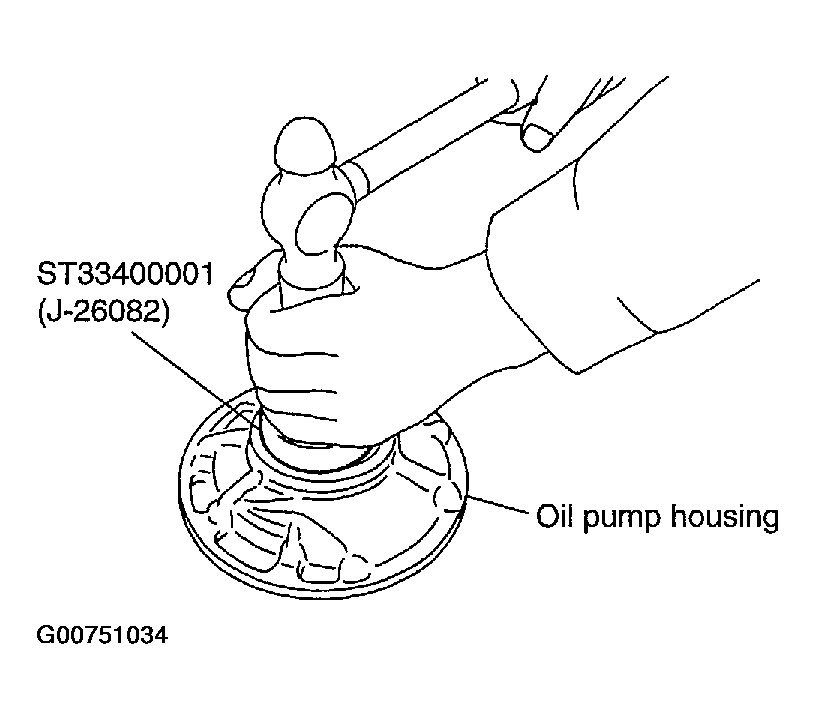

Using a drift, install oil pump housing oil seal to the oil pump housing until is flush.
CAUTION:
- Do not reuse oil seal.
- Apply ATF to oil seal.
Fig 3: Installing Oil Pump Housing Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.

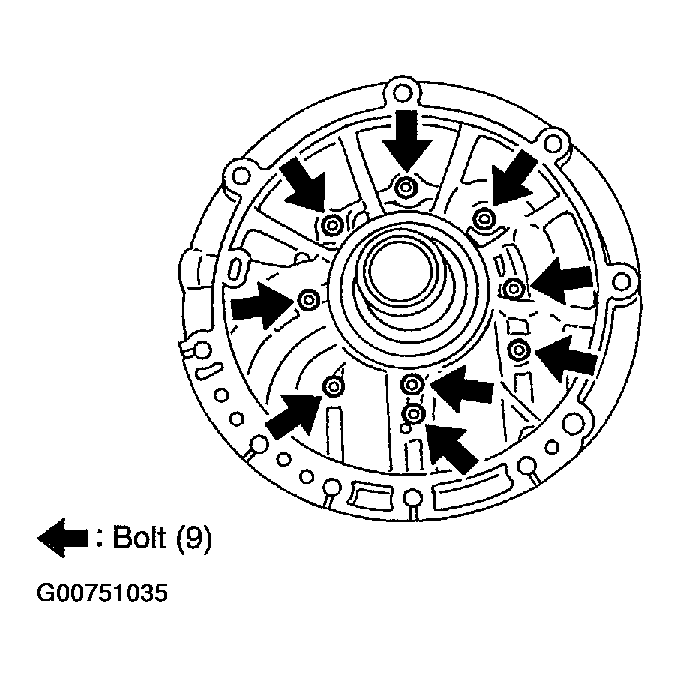

Install oil pump housing in oil pump cover.
1. 9.0 N.m (0.92 kg-m, 80 in-lb.)
Fig 4: Locating Oil Pump Cover Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
