Oil Pump: Components

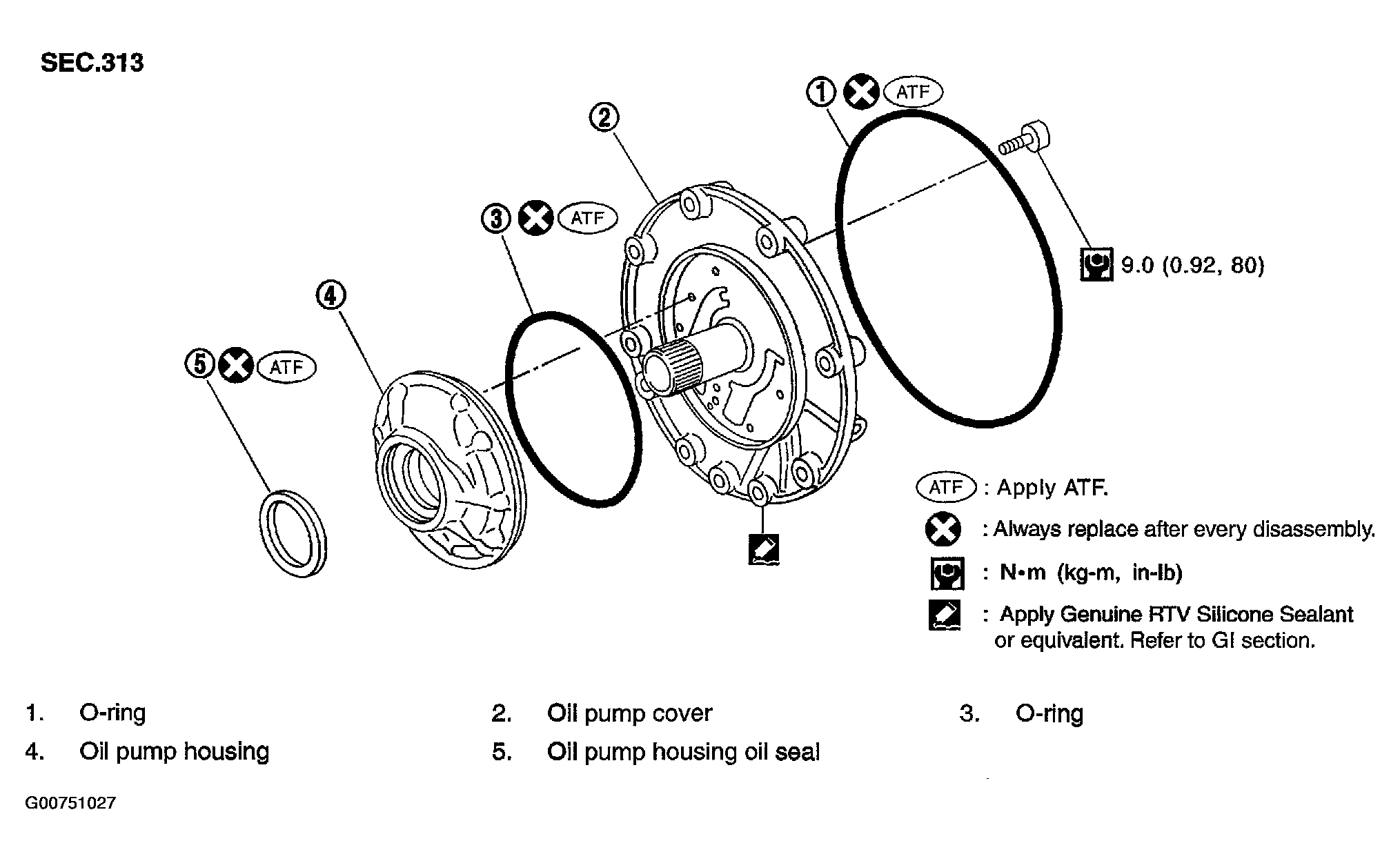

Fig 1: Identifying Oil Pump Components

G00751027

Courtesy of NISSAN MOTOR CO., U.S.A.
