Removal And Installation: Inspection: Installation

Install the removed parts in the reverse order of the removal, while paying attention to the following work.

• When installing transmission to the engine, attach the fixing bolts in accordance with the following standard.
  Fig 1: Identifying Transmission Case Mounting Bolts

  Courtesy of NISSAN MOTOR CO., U.S.A.

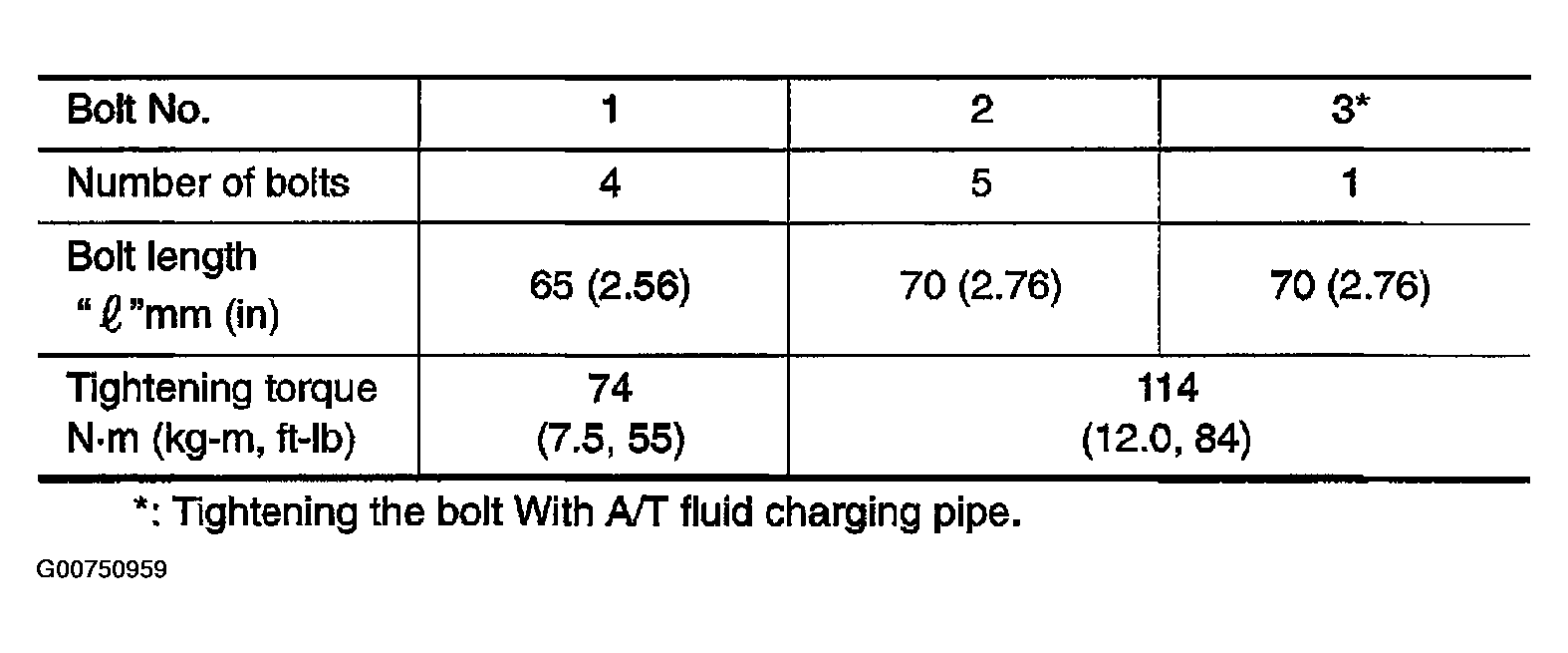

  Fig 2: Transmission Case Mounting Bolt Specifications

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Align the positions of tightening bolts for drive plate with those of the torque converter, and temporarily tighten the bolts. Then, tighten the bolts with the specified torque.
  1. : 51 N.m (5.2 kg-m, 38 ft-lb)
  CAUTION:

  • When turning crankshaft, turn it clockwise as viewed from the front of the engine.
  • When tightening the tightening bolts for the torque converter after fixing the crankshaft pulley bolts, be sure to confirm the tightening torque of the crankshaft pulley mounting bolts.
  • After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that transmission rotates freely without binding.
  Fig 3: Identifying Torque Converter To Drive Plate Mounting Bolt

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Install CRANKSHAFT POSITION SENSOR (POS). Refer to "Removal and Installation".
• After completing installation, check fluid leakage, fluid level, and the positions of A/T. Refer to A/T FLUID -Checking A/T Fluid, CHECKING OF A/T POSITION , and ADJUSTMENT OF A/T POSITION -Checking of A/T Position .
• When replacing the A/T assembly, erase EEP ROM in TCM. Refer to " PRECAUTIONS FOR TCM, A/T ASSEMBLY AND CONTROL VALVE ASSEMBLY REPLACEMENT  "
