Operation Procedure: Notes

  1. Perform "CONSULT-II SETTING PROCEDURE". Refer to, "CONSULT-II SETTING PROCEDURE ".
    2. NOTE: When malfunction is detected, CONSULT-II performs "REAL-TIME DIAGNOSIS". Also, any malfunction detected while in this mode will be displayed at real time.

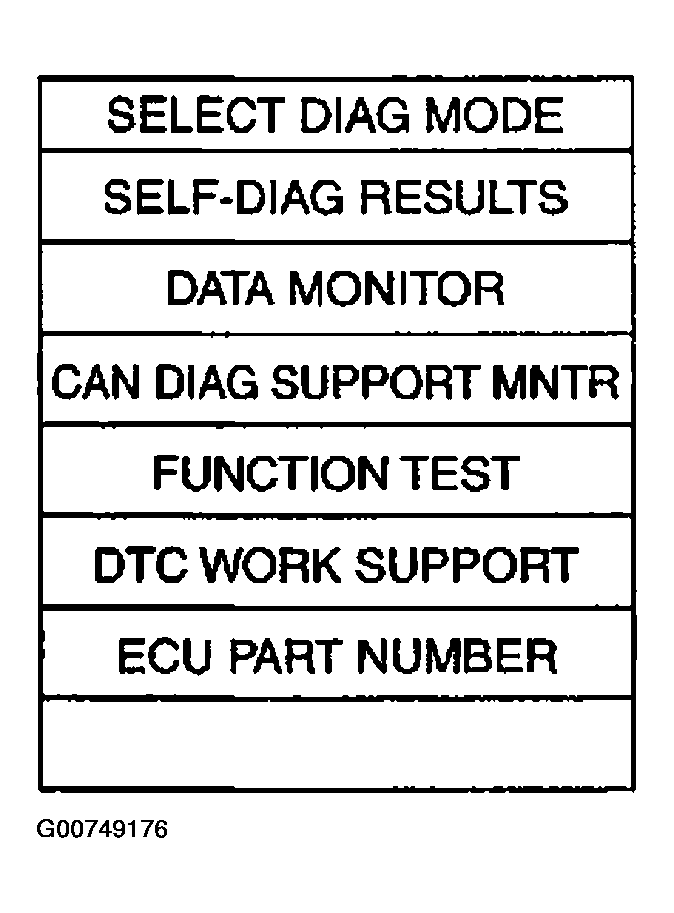

    Fig 1: Selecting "DATA MONITOR" On CONSULT-II Screen
    G00749176Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "DATA MONITOR".
