TCM Inspection Table

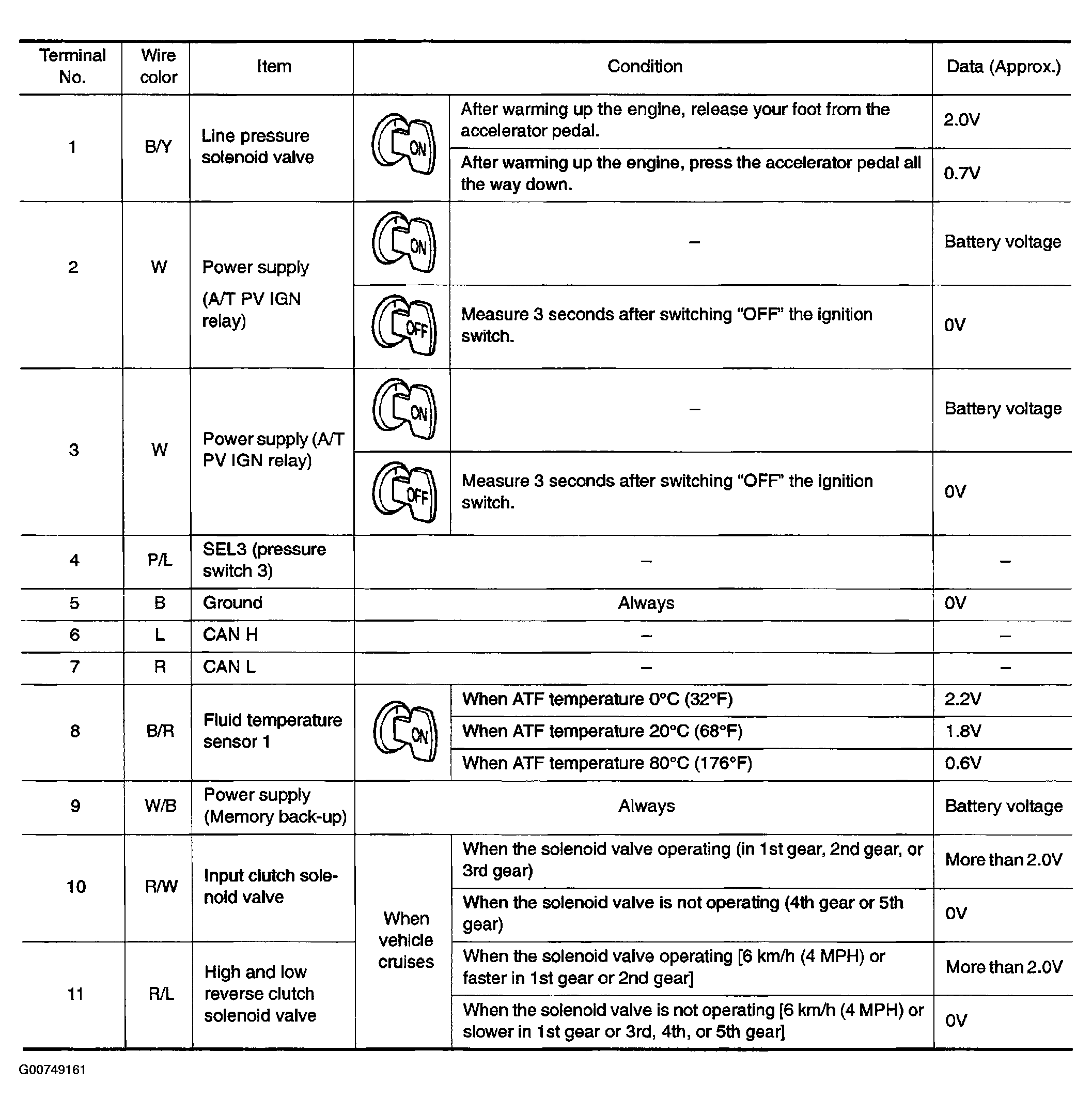

Fig 1: Checking Voltages At A/T Harness Connector (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

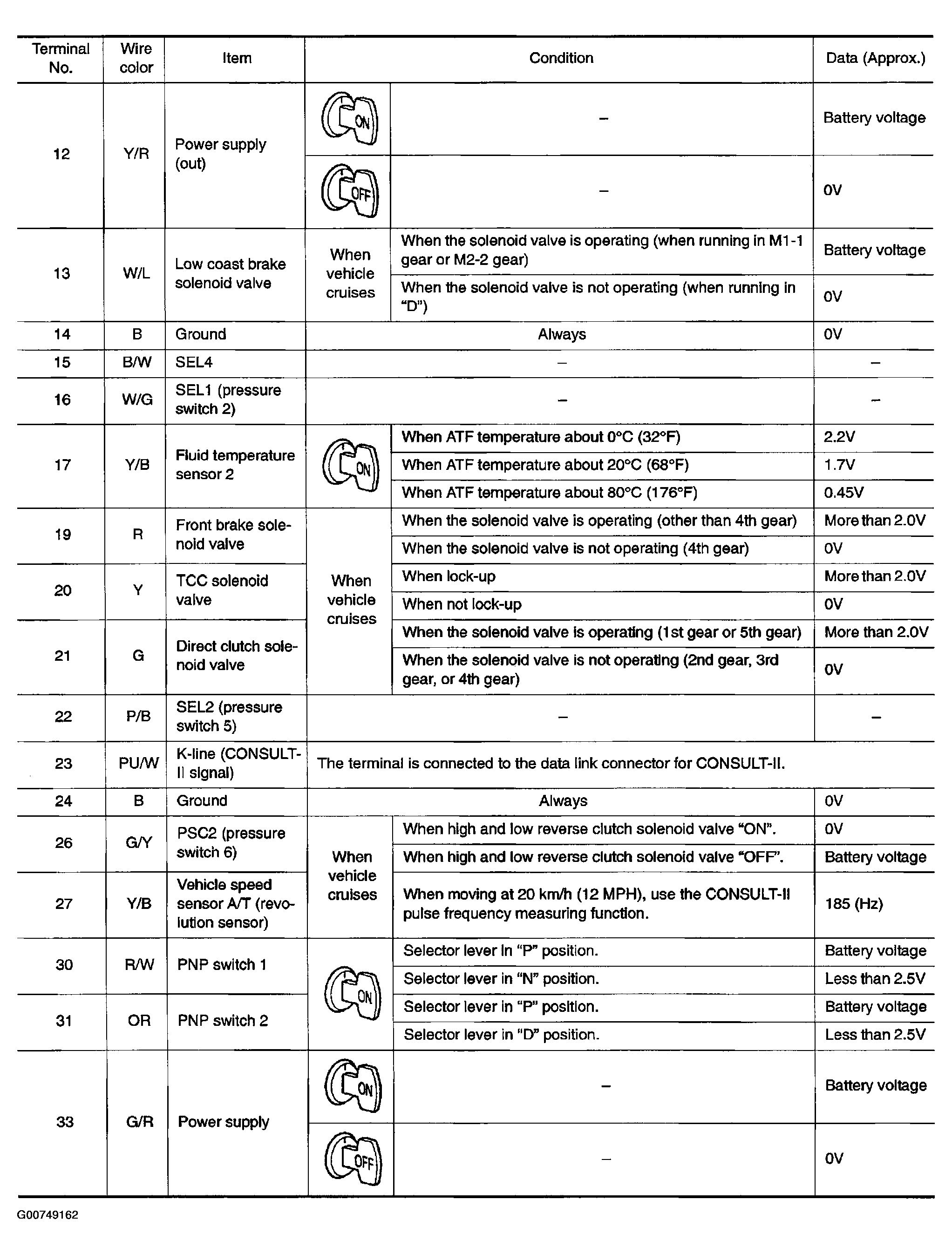

Fig 2: Checking Voltages At A/T Harness Connector (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

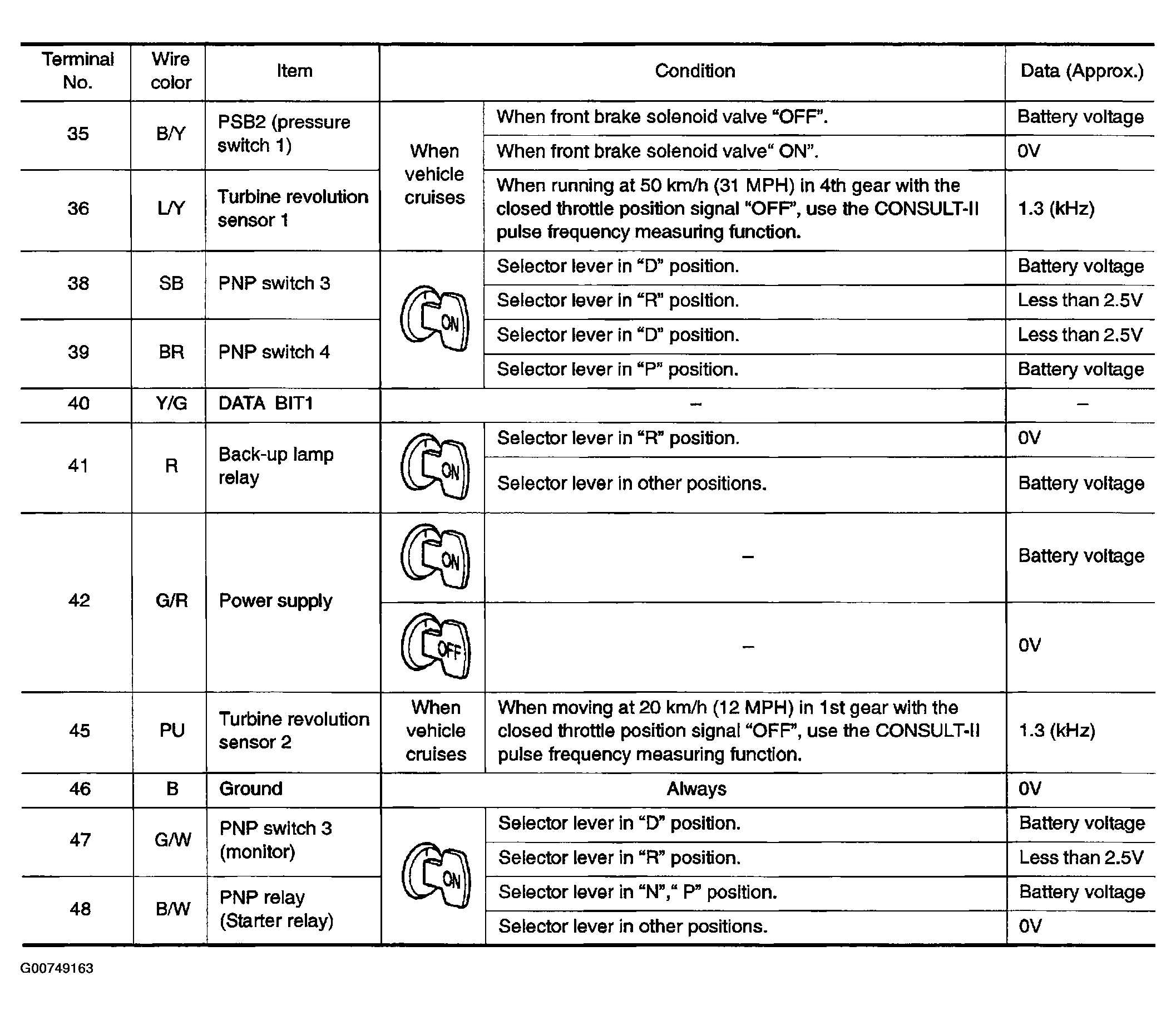

Fig 3: Checking Voltages At A/T Harness Connector (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
