Malfunction Code Table

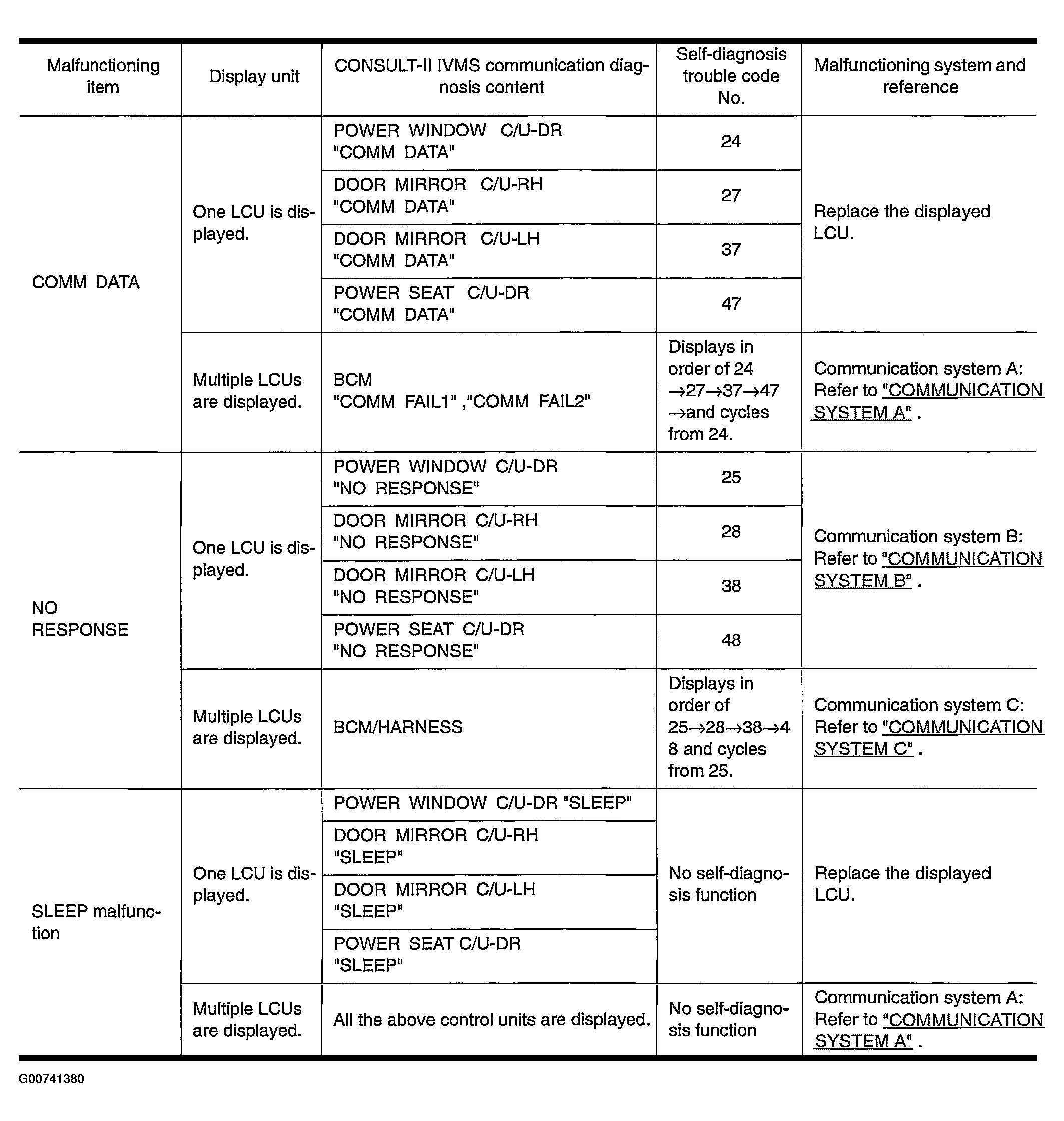

Fig 1: Malfunction Code Table

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

For a specific local control unit (LCU), either "PAST COMM DATA" or "PAST NO RESPONSE" may be displayed instead of the above results. This is caused by the data record, so erase the records.
(The display only shows the incident records, they are not malfunctions caused during the diagnosis. One possible cause is that an non-reproducible incident symptom occurred.)
Follow the steps below to erase the memory
Perform either disconnect BCM battery power supply or erase memory with CONSULT-II.
With the battery connected, if the local control unit (LCU) connector is disconnected for approximately 1 minute, the BCM stores "NO RESPONSE" record.
